APC Easy UPS On-Line, 1000VA/900W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit

APC Easy UPS On-Line, 1000VA/900W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit

Easy UPS On-Line, 1000VA/900W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit

Trade Prices

Distributor Product SKU Stock Updated Price
AU - Ingram Micro

EASY UPS ON-LINE SRV RM 1000VA 900W 230V

 5528471 Register free see stock
NZ - Ingram Micro

EASY UPS ON-LINE SRV RM 1000VA 900W

 5528471

Reasons To Buy

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

Intelligent Card Slot

Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Full color text and mimic diagrams that easily display modes of operation, systems parameters and alarms.

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Registering license keys unlocks the features of the data center management software.

Automatically starts up the connected equipment upon the return of utility power.

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Minimizes installation costs by enabling the use of smaller generators and cabling.

Prevents unauthorized access to the UPS.

Serial connectivity

Provides management of the UPS via a serial port.

Provides management of the UPS via a USB port (not available on all models).

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Description

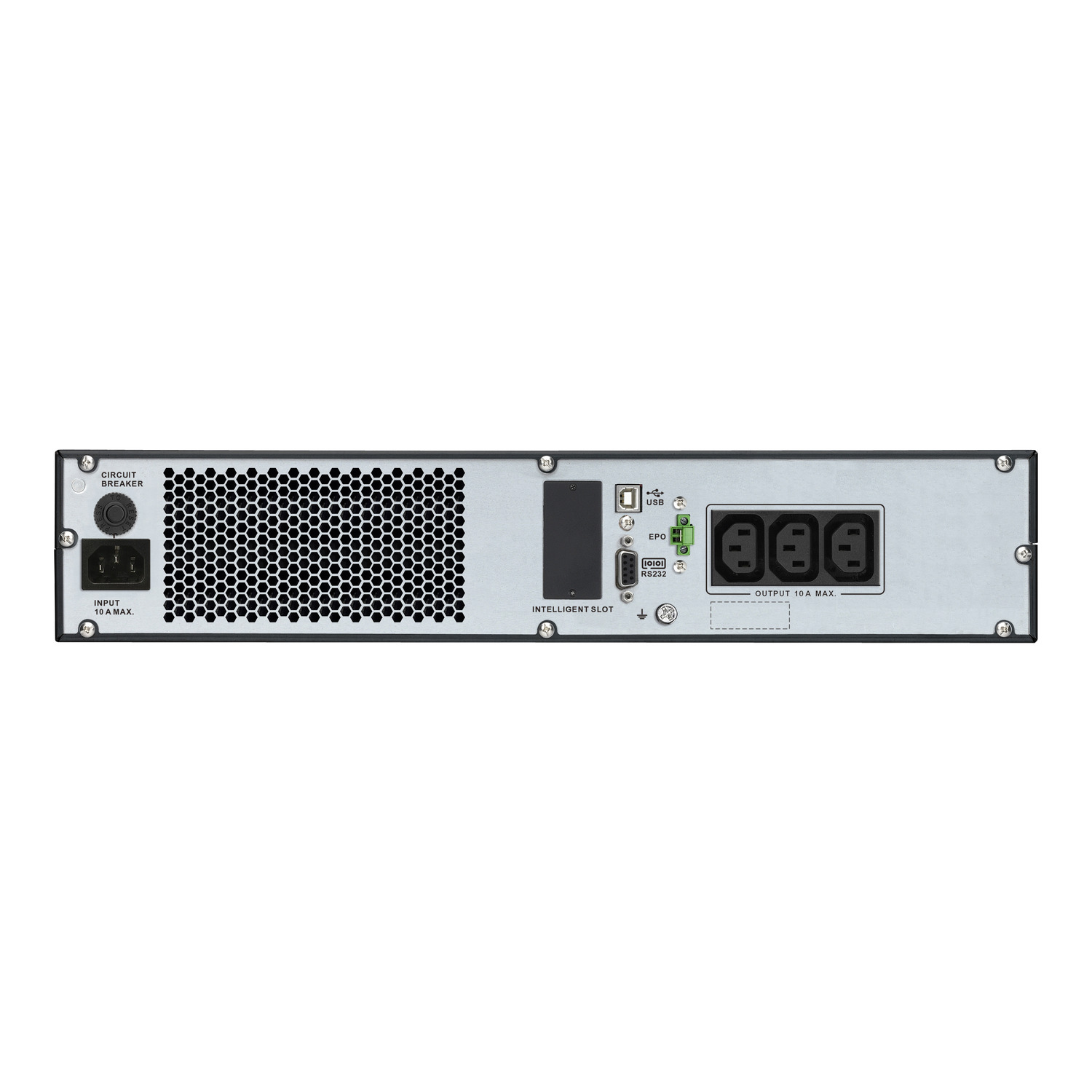

"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions." "The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The SRV UPS is compatible with replacement battery cartridge APCRBCV200." "The UPS is compatible with SRVRK1 rail kit sold separately." "The UPS and the built-in lead-acid battery has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."

Specifications

Power
Output frequency50/60 Hz
Output power capacity1 kVA
Output power900 W
Input operation voltage (min)110 V
Input operation voltage (max)285 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating945 J
Efficiency88%
Output voltage Total Harmonic Distortion (THD)3%
Output voltage regulation3%
Crest factor3:1
Single-phase input voltage supported230 V
Input frequency40 - 70 Hz
Ports & interfaces
Cable length1.5 m
USB portYes
Serial interfaceYes
AC outlets quantity3 AC outlet(s)
AC outlet typesC13 coupler
Power plugC15 coupler
USB 2.0 ports quantity1
RS-232 ports1
USB port typeUSB Type-B
Performance
Audible alarm modesOverload alarm, Low battery alarm
UPS topologyDouble-conversion (Online)
Number of output phases1
Number of input phases1
Surge protectionYes
WaveformSine
Noise level50 dB
Audible alarm(s)Yes
Features
Output frequency50/60 Hz
Country of originChina
Audible alarm modesOverload alarm, Low battery alarm
UPS topologyDouble-conversion (Online)
Output power capacity1 kVA
Number of output phases1
Number of input phases1
Output power900 W
Input operation voltage (min)110 V
Input operation voltage (max)285 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating945 J
Efficiency88%
Surge protectionYes
WaveformSine
Output voltage Total Harmonic Distortion (THD)3%
Output voltage regulation3%
Crest factor3:1
Noise level50 dB
Audible alarm(s)Yes
Single-phase input voltage supported230 V
Input frequency40 - 70 Hz
Power source typeAC
Detachable power cordYes
Battery
Battery life (max)3 year(s)
Battery technologySealed Lead Acid (VRLA)
Battery recharge time4 h
Battery voltage24 V
Replacement battery cartridgeAPCRBCV200
Design
Country of originChina
Rack capacity2U
Form factorRackmount
Product colourBlack
International Protection (IP) codeIP20
CertificationCE; UKCA; TISI
Cable length1.5 m
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Technical details
Output voltage230 V
Output frequency50/60 Hz
Mountingfront; horizontal
Compliance certificatesRoHS, REACH, WEEE
Preferred mounting positionlower
Packaging recycled materialsRecycled cardboard
Take-back systemNo
Sustainable packagingNo
Packaging without single use plasticNo
Certificates
CertificationCE; UKCA; TISI
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesRoHS, REACH, WEEE
Packaging content
Cables includedOutput power cable, RS-232, USB cable, Input power cable
Rack mount kitYes
ManualYes
Certification
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Weight & dimensions
Width438 mm
Depth312 mm
Height86 mm
Weight11.5 kg
Package width551 mm
Package depth455 mm
Package height218 mm
Package weight14 kg
Packaging data
Cables includedOutput power cable, RS-232, USB cable, Input power cable
Rack mount kitYes
ManualYes
Package width551 mm
Package depth455 mm
Package height218 mm
Package weight14 kg
Logistics data
Country of originChina
Customs product code (TARIC)8504409590
Other features
Output voltage230 V
Mountingfront; horizontal
Input connection typeIEC 60320 C14
Output connection type3 IEC 60320C13
