APC Netshelter Rack Automatic Transfer Switch, 1U, 20 A, 208V, 2 C20 IN, 8 C13, 1 C19 OUT, 50/60Hz
- Brand: APC
- Category:
- SKU: AP4434A
- EAN: 0731304432500
Netshelter Rack Automatic Transfer Switch, 1U, 20 A, 208V, 2 C20 IN, 8 C13, 1 C19 OUT, 50/60Hz
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
NETSHELTER RACK AUTOMATIC TRANSFER SWITCH 1U 20 A 208V 2 C20 IN 8 C13 1 C19 OUT 50/60HZ |
6602277 |
Related Products
Description

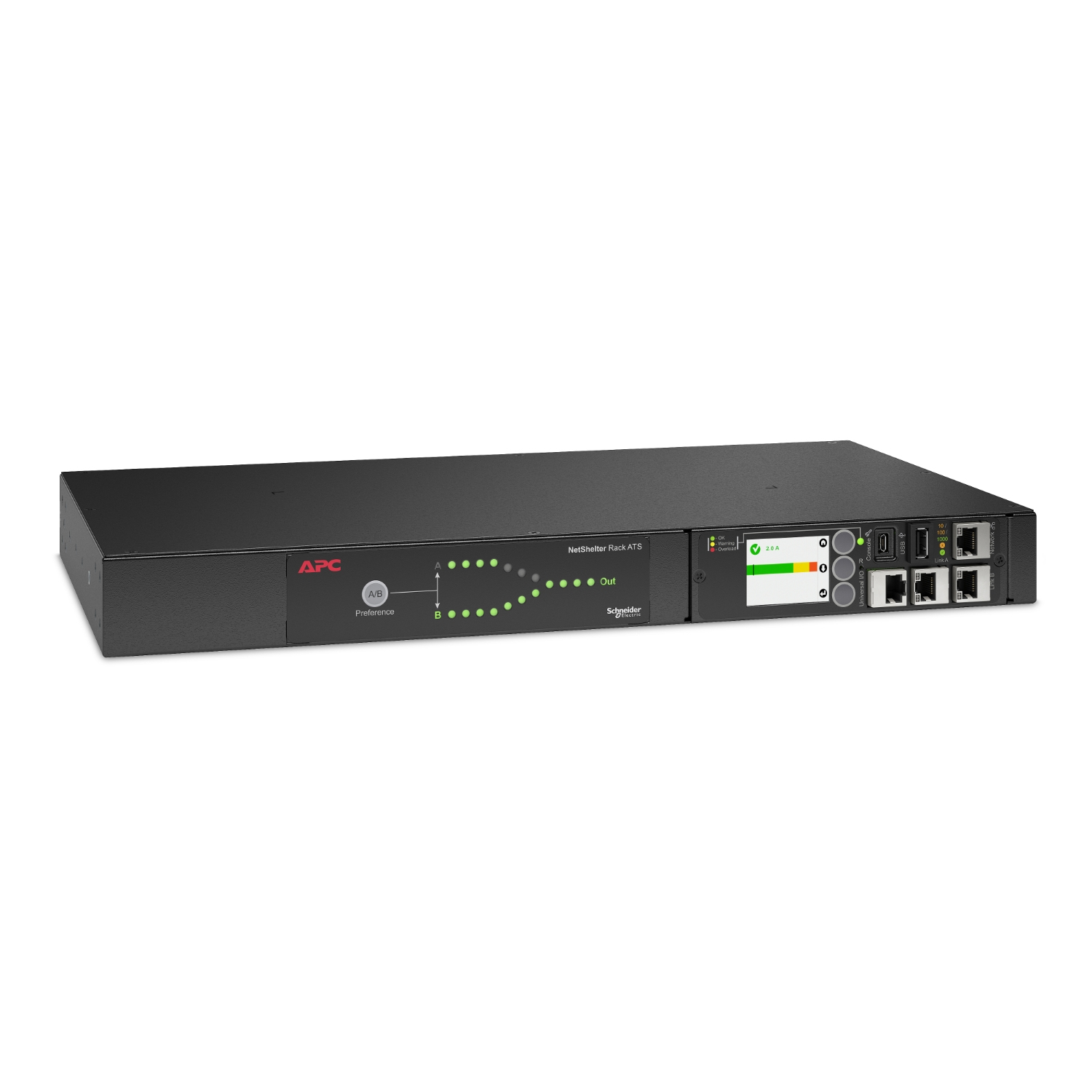

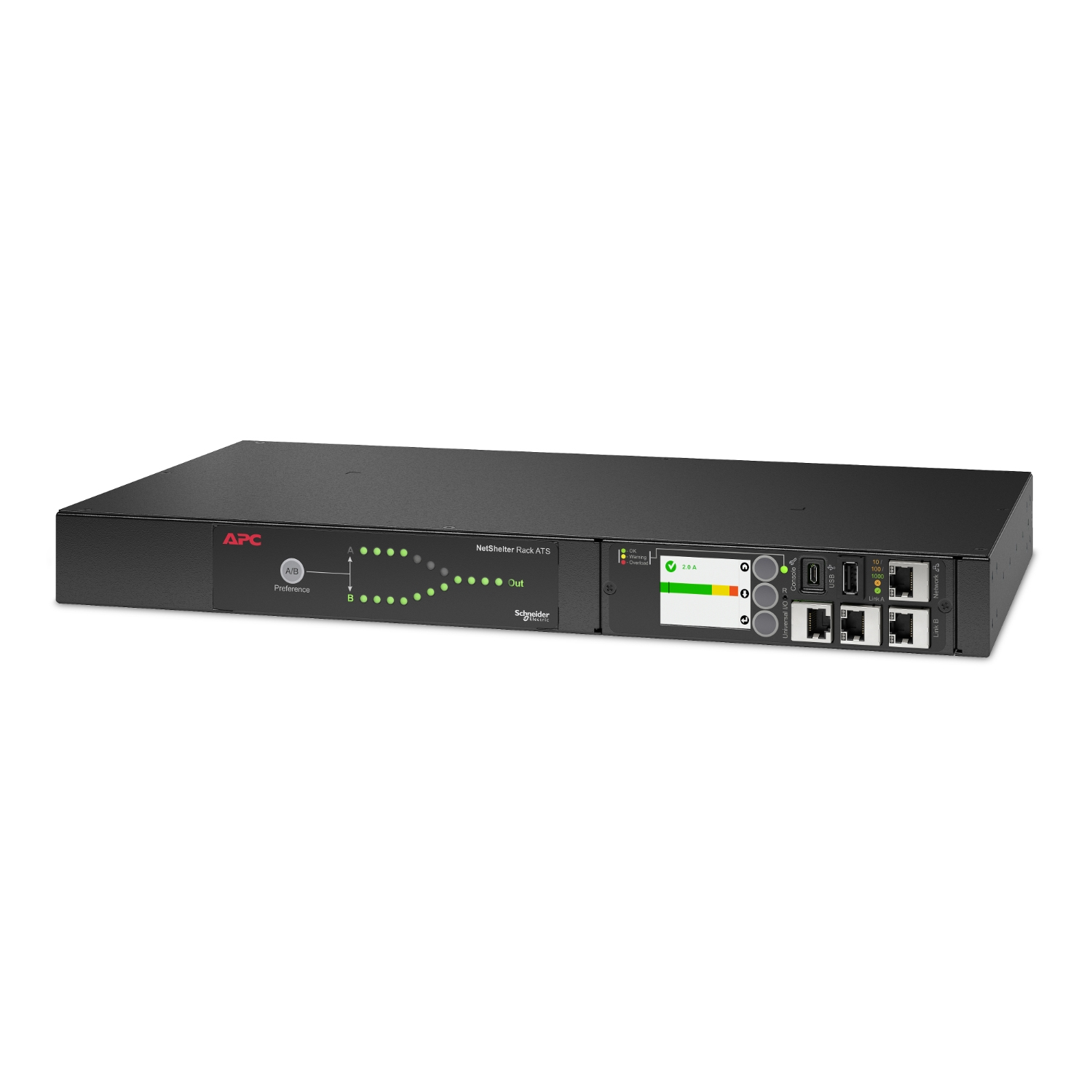

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4434A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4434A is single phase 1U Rack ATS with 20A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C20- inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Specifications
| Power | |
|---|---|
| Input operation voltage (min) | 187 V |
| Input operation voltage (max) | 228 V |
| Input current | 20 A |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 208 V |
| Output current | 20 A |
| AC input frequency | 50/60 Hz |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | cUL listed; CE; UL listed |
| Ports & interfaces | |
| AC inlet type | C20 coupler |
| AC outlet types | IEC 60320 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Total carbon footprint (kg of CO2e) | 1230.5930512182 |
| Compliance certificates | RoHS, REACH, WEEE |
| Removable battery | Yes |
| Preferred mounting position | no preference |
| Packaging recycled materials | Recycled cardboard |
| Mounting | front; rear; horizontal |
| Halogen free | No |
| Take-back system | No |
| Sustainable packaging | No |
| Proposition 65 | Yes |
| Packaging without single use plastic | No |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Logistics data | |
| Customs product code (TARIC) | 8537109899 |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 236 mm |
| Height | 44 mm |
| Weight | 3.74 kg |
| Packaging data | |
| Package width | 600 mm |
| Package depth | 356 mm |
| Package height | 114 mm |
| Package weight | 5.51 kg |
