APC SRV2KRILRK-E uninterruptible power supply (UPS) 2 kVA 1800 W

APC SRV2KRILRK-E uninterruptible power supply (UPS) 2 kVA 1800 W

Apc Easy Ups On-Line Srv 2000Va 1800W Rm 230V With Extended Runtime BattERy Pack. Rail Kit

Trade Prices

Distributor Product SKU Stock Updated Price
AU - Dicker Data Limited

EASY UPS ONLINE (SRV), 2000VA, 230V, RACK MOUNT, EXT. R/TIME WITH RAIL KIT

 SRV2KRILRK-E Register free see stock
AU - Ingram Micro

Easy UPS On-Line SRV 2000VA RM 230V with Extended Runtime Battery Pack Rail Kit

 5633687
AU - Leader

Easy UPS 2000VA/1600W Online UPS, 4U Rackmount, 230V/10A Input, 4x IEC C13 Outlets, Lead Acid Battery, W/ Battery Pack, W/ Rail Kit

 UPAPC-SRV2KRILRK-E
NZ - Dicker Data

Easy UPS On-Line SRV 2000VA RM 230V with Extended Runtime Battery Pack, Rail Kit

 SRV2KRILRK-E
NZ - Ingram Micro

Easy UPS On-Line SRV 2000VA RM 230V

 5633687

Description

APC Easy UPS On-Line, 2000VA/1600W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

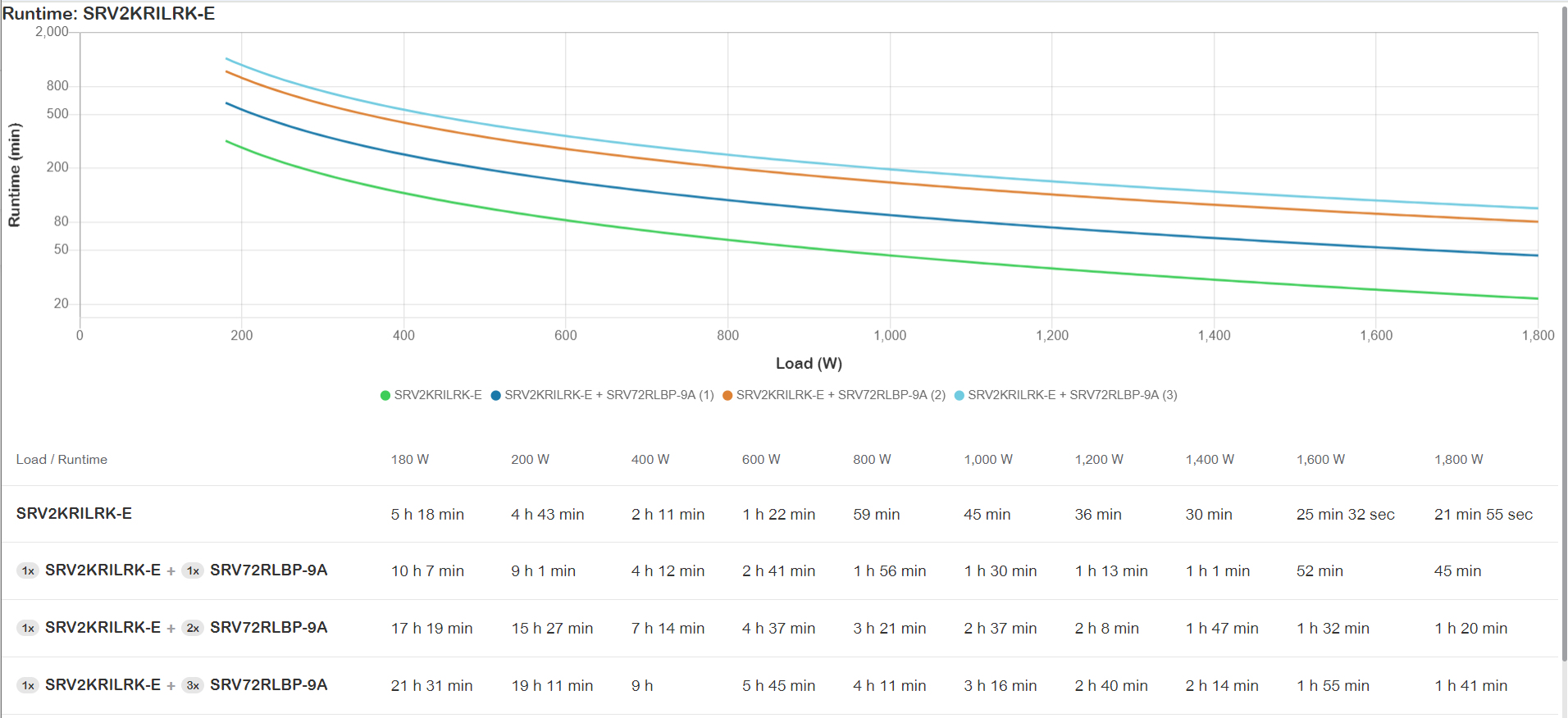

Run time for load 1600 W 22min 17s
Min-max: 160-1600 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Product or component type
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 1600 W
Rated power in VA 2000 VA
Input Connection Type IEC 60320 C14
Output connection type 4 IEC 60320 C13
Number of rack unit 4U
Number of cables 1
Provided equipment, 1 IEC 60320 C13 to Schuko power cable, 1 IEC 60320 C19 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, 2 rack mounting brackets, 2 rack mounting support rails, 1 external battery pack, 1 battery cable
Ambient air temperature for operation0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3000 m
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 50 dBA
Heat dissipation 745 Btu/h
IP degree of protection IP20

Mounting mode- Rack mountable
Replacement Battery -SRV72RLBP-9A
Compatible NMC- AP9544, SRVSMB001, VGL9901I
Compatible Mounting- SRVRK1

Specifications

Power
Output frequency50/60 Hz
Output power capacity2 kVA
Output power1800 W
Input operation voltage (min)105 V
Input operation voltage (max)300 V
Output operation voltage (min)230 V
Surge energy rating600 J
Crest factor3:1
Input frequency40 - 70 Hz
Performance
WaveformSine
Noise level53 dB
Features
Output frequency50/60 Hz
Output power capacity2 kVA
Output power1800 W
Input operation voltage (min)105 V
Input operation voltage (max)300 V
Output operation voltage (min)230 V
Surge energy rating600 J
WaveformSine
Crest factor3:1
Noise level53 dB
Input frequency40 - 70 Hz
Heat dissipation745 BTU/h
Ports & interfaces
SmartSlotYes
AC outlet typesC13 coupler
Power plugC20 coupler
SmartConnect portNo
Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time5.5 h
Battery voltage72 V
Design
Rack capacity4U
Product colourBlack
International Protection (IP) codeIP20
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Technical details
Output frequency50/60 Hz
Warranty period2 year(s)
Packaging content
Management card includedNo
Weight & dimensions
Width437 mm
Depth632 mm
Height172 mm
Weight51.4 kg
Package width700 mm
Package depth600 mm
Package height480 mm
Package weight66.2 kg
Packaging data
Package width700 mm
Package depth600 mm
Package height480 mm
Package weight66.2 kg
Management card includedNo
Logistics data
Warranty period2 year(s)
