APC SRV3KRILRK-E uninterruptible power supply (UPS) 3 kVA 2700 W

APC SRV3KRILRK-E uninterruptible power supply (UPS) 3 kVA 2700 W

Apc Easy Ups On-Line Srv 3000Va 2700W Rm 230V With Extended Runtime BattERy Pack. Rail Kit

Trade Prices

Distributor Product SKU Stock Updated Price
AU - Dicker Data Limited

EASY UPS ONLINE (SRV), 3000VA, 230V, RACK MOUNT, EXT. R/TIME WITH RAIL KIT

 SRV3KRILRK-E Register free see stock
AU - Ingram Micro

EASY UPS ON-LINE SRV 3000VA RM 230V WITH EXTENDED RUNTIME BATTERY PACK RAIL KIT

 5633689
AU - Leader

Easy UPS 3000VA/2400W Online UPS, 4U Rackmount, 230V/16A Input, 4x IEC C13 Outlets, Lead Acid Battery, W/ Battery Pack, W/ Rail Kit

 UPAPC-SRV3KRILRK-E
NZ - Dicker Data

Easy UPS On-Line SRV 3000VA RM 230V with Extended Runtime Battery Pack, Rail Kit

 SRV3KRILRK-E
NZ - Ingram Micro

Easy UPS On-Line SRV 3000VA RM 230V

 5633689

Description

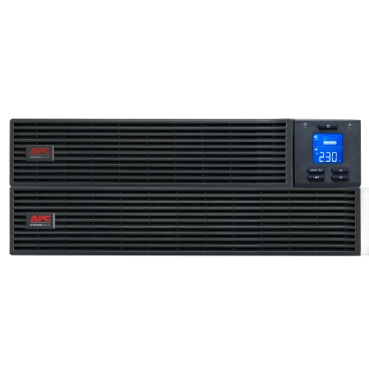

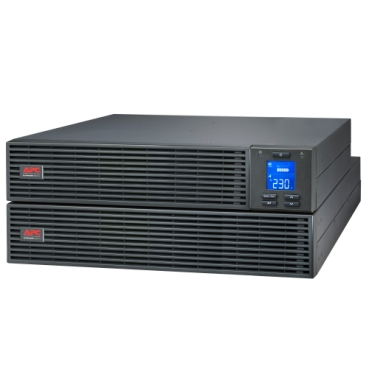

APC Easy UPS On-Line, 3kVA/2400W, Rackmount 4U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended Runtime, W/ rail kit

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

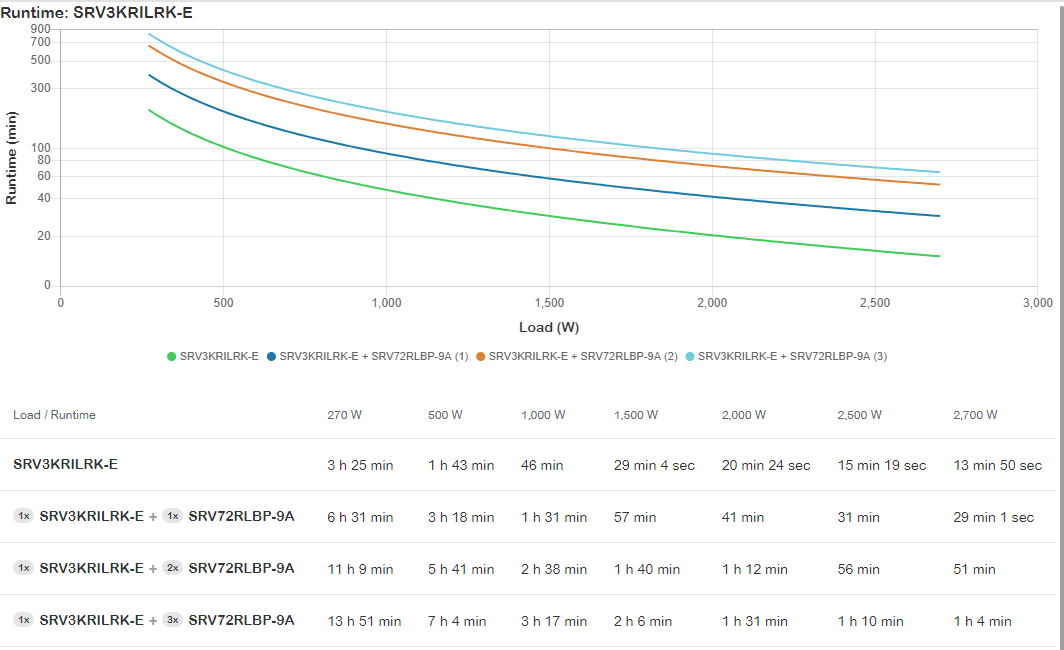

Run time for load 2400 W 12min 44s
Min-max: 240-2400 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 2400 W
Rated power in VA 3000 VA
Input Connection Type IEC 60320 C20

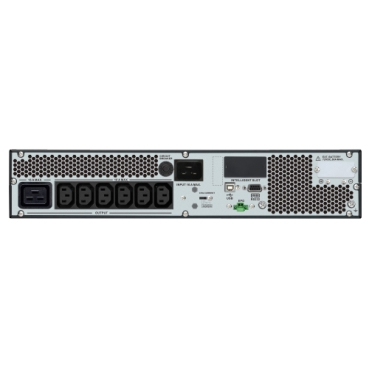

Output connection type, 6 IEC 60320 C13, 1 IEC 60320 C19
Number of rack unit 4U
Number of cables 1

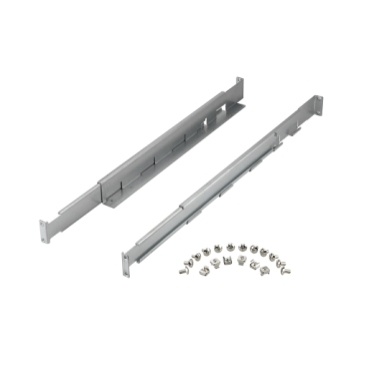

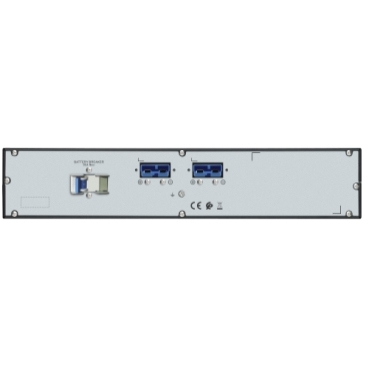

Provided equipment, 1 IEC 60320 C19 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, 2 rack mounting brackets, 2 rack mounting support rails, 1 external battery pack, 1 battery cable
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3000 m
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 50 dBA
Heat dissipation 910 Btu/h
IP degree of protection IP20

Mounting mode- Rack mounted
Compatible Batteries- SRV72RLBP-9A
Compatible NMC - AP9544, SRVSMB001, VGL9901I
Compatible Mounting- SRVRK1

Specifications

Power
Output frequency50/60 Hz
Output power capacity3 kVA
Output power2700 W
Input operation voltage (min)105 V
Input operation voltage (max)300 V
Output operation voltage (min)230 V
Surge energy rating600 J
Crest factor3:1
Input frequency40 - 70 Hz
Performance
WaveformSine
Noise level53 dB
Features
Output frequency50/60 Hz
Output power capacity3 kVA
Output power2700 W
Input operation voltage (min)105 V
Input operation voltage (max)300 V
Output operation voltage (min)230 V
Surge energy rating600 J
WaveformSine
Crest factor3:1
Noise level53 dB
Input frequency40 - 70 Hz
Heat dissipation910 BTU/h
Ports & interfaces
SmartSlotYes
AC outlet typesIEC 60320
Power plugC20 coupler
SmartConnect portNo
Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time5.5 h
Battery voltage72 V
Design
Rack capacity4U
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Technical details
Output frequency50/60 Hz
Warranty period2 year(s)
Packaging content
Management card includedNo
Weight & dimensions
Width437 mm
Depth632 mm
Height172 mm
Weight52.2 kg
Package width700 mm
Package depth600 mm
Package height480 mm
Package weight66.7 kg
Packaging data
Package width700 mm
Package depth600 mm
Package height480 mm
Package weight66.7 kg
Management card includedNo
Logistics data
Warranty period2 year(s)
