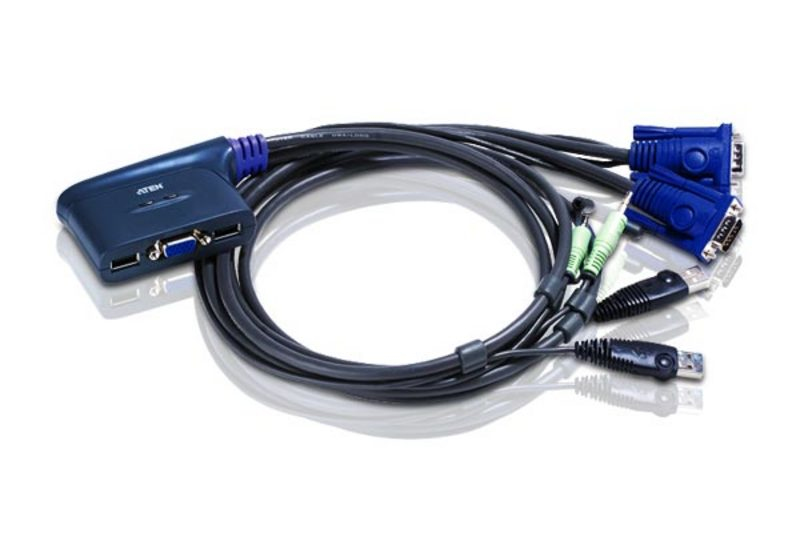

ATEN 2-Port USB VGA KVM Switch with Audio
- Brand: ATEN
- Category:
- SKU: CS62US-AT
- EAN: 4710423775336 5712505805916
2-Port USB VGA KVM Switch with Audio
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
2 PORT USB CABLE KVM SWITCH WITH AUDIO |
CS62US-AT | |||
|
Compact KVM Switch 2 Port Single Display VGA w/ audio, 0.9m Cable, Computer Selection Via Hotkey, |
KVA-CS-62US |
Related Products
Description
Our total USB solution. Link two USB computers to one USB console for a complete USB system compatible with all operating platforms: PC, Mac and Sun.
1x 2-Port USB KVM Switch with Attached Cables
1x User Instructions
1x 2-Port USB KVM Switch with Attached Cables
1x User Instructions
Specifications
| Video | |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Ports & interfaces | |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, USB A, VGA (D-Sub) |
| USB connector type | USB Type-A |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Audio connections | Yes |
| VGA (D-Sub) ports quantity | 2 |
| Headphone outputs | 1 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| Performance | |
| DDC2B support | Yes |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 5 s |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Yes |
| Hot keys | Yes |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Power consumption (typical) | 0.33 W |
| Technical details | |
| USB hub | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 87.5 mm |
| Depth | 60.8 mm |
| Height | 28 mm |
| Weight | 282 g |
| Package width | 55 mm |
| Package depth | 185 mm |
| Package height | 155 mm |
| Package weight | 374 g |
| Packaging data | |
| Package width | 55 mm |
| Package depth | 185 mm |
| Package height | 155 mm |
| Package weight | 374 g |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 297 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 8.01 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case net weight | 5.64 kg |
| Harmonized System (HS) code | 85176200 |
| Other features | |
| Hot keys | Yes |
