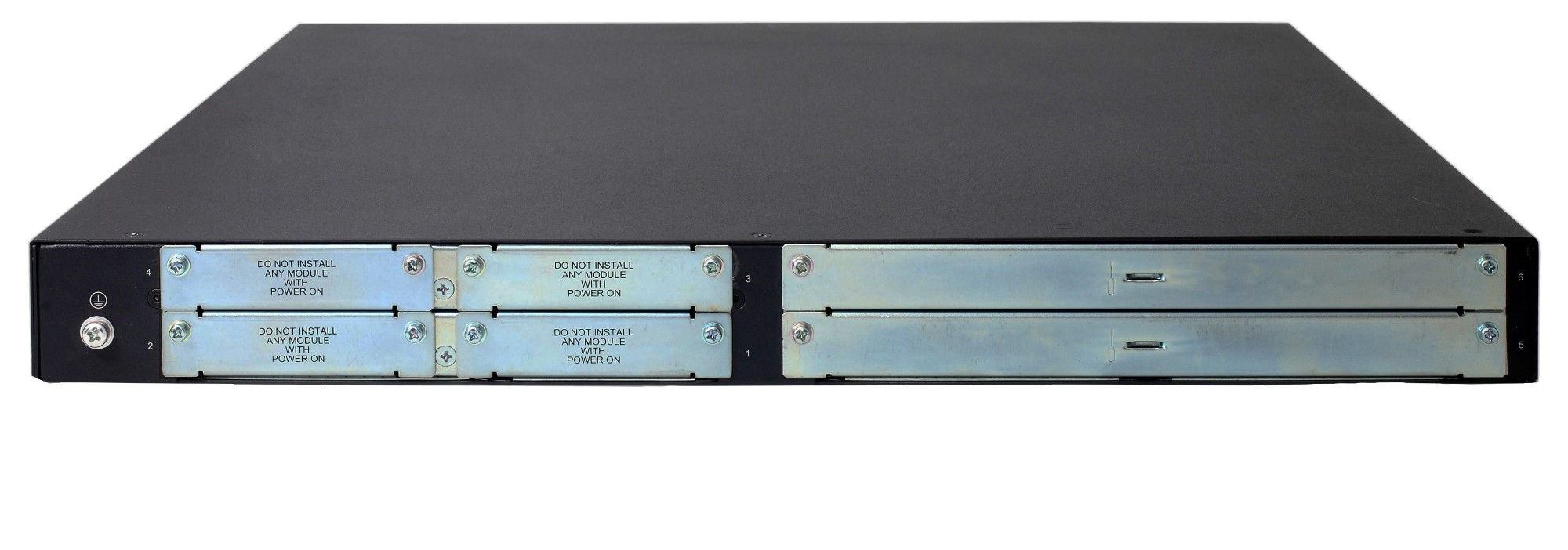

HPE FlexNetwork MSR3024 AC Router

  • Brand: HPE
  • Category:
  • SKU: JG406A
  • EAN: 0887758089040 0887758088999 08 ...8088999 0886112790509 8861127905096more
FlexNetwork MSR3024 AC Router

Trade Prices

Distributor Product SKU Stock Updated Price
AU - Dicker Data Limited

HP MSR3024 AC ROUTER

 JG406A Register free see stock
NZ - CENZ

HP Router MSR3024 1GbE RJ-45 3-Port/1GbE RJ-45 or SFP 1-Port/SIC 4-Slot or DSIC 2-Slot/HMIM H/H 2-Slot/VP Module 2-Slot/ 1xAC PSU 1U

 JG406A
NZ - Dicker Data

MSR3024 AC Router

 JG406A

Related Products

Reasons To Buy

Reduces Complexity and Simplifies Your Network

The HPE Networking Comware Router Series MSR3000 simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance medium-to-large branch routing.
Makes administration easier with HPE Networking Intelligent Management Center (IMC) Software.
Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.

Enhances Time to Service and Branch Performance

The HPE Networking Comware Router Series MSR3000 offers high performance routing with up to 13 Mpps forwarding and 14.3 Gbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic.
Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
Satisfies medium to large branches with advanced hardware architecture and high port density.

Increases Your Return on Investment

The HPE Networking Comware Router Series MSR3000 is a modular platform with a wide range of connectivity options that enables the right design for your needs.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.

Boosts Agility and Resiliency

TheHPE Networking Comware Router Series MSR3000 provides Open Application Platform module that supports HPE Alliance One applications such as WAN acceleration and Microsoft Skype for Business (Lync).
Delivers an open standards approach to your network infrastructure.
With advanced hardware architecture and FPBA modules, you get reliable, high-performance functionality with multi-core processors.

Description

The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.

What is new supporting point:
High-density voice modules and channelized POS access to cover.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
Additional features such as ADVPN and hierarchical QoS.

Specifications

Ethernet LAN features
Ethernet LAN data rates1000 Mbit/s
Performance
Internal memory typeDDR3
Flash memory256 MB
Internal memory2000 MB
Processor frequency1000 MHz
Mean time between failures (MTBF)8760 h
Heat dissipation168 BTU/h
Network
Networking standardsIEEE 802.3ab
Ethernet LAN data rates1000 Mbit/s
Forwarding rate2.6 Mpps
Ethernet interface typeGigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports3
Smart Interface Card (SIC) slots quantity4
Features
Internal memory typeDDR3
SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1
Flash memory256 MB
Internal memory2000 MB
Processor frequency1000 MHz
Mean time between failures (MTBF)8760 h
Heat dissipation168 BTU/h
Design
Rack mountingYes
Product colourBlack
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 90%
Weight & dimensions
Width440 mm
Depth480 mm
Height44.2 mm
Weight17.4 kg
Certificates
SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1
