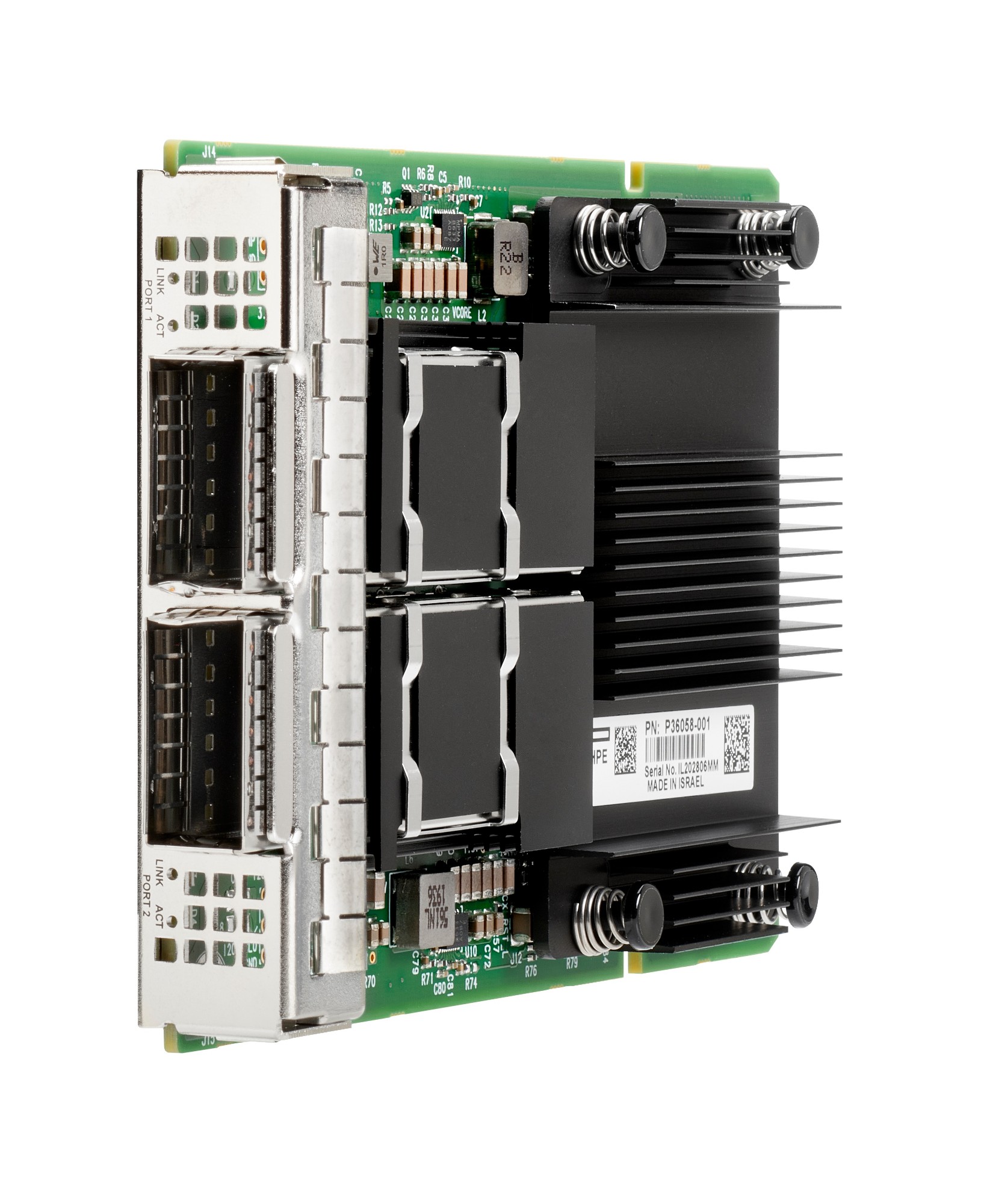

HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 OCP3 MCX653436A-HDAI Adapter

  • Brand: HPE
  • Category:
  • SKU: P31348-B21
  • EAN: 0190017485645
InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 OCP3 MCX653436A-HDAI Adapter

Trade Prices

Distributor Product SKU Stock Updated Price
AU - Ingram Micro

HPE IB HDR/EN 200Gb 2p QSFP56 OCP3 Adptr

 5142809 Register free see stock
NZ - Ingram Micro

HPE IB HDR/EN 200GB 2P QSFP56 OCP3 ADPTR

 5142809

Reasons To Buy

Low-Latency, High-Bandwidth InfiniBand Connectivity

HPE HDR InfiniBand adapters deliver up to 200Gbps bandwidth and a sub-microsecond latency for demanding HPC workloads.
The HPE InfiniBand HDR100 adapters, combined with HDR switches and HDR cables, are aimed at simplified infrastructure by reducing the number of required switches for a given 100Gbps InfiniBand fabric.
HPE HDR InfiniBand adapters are supported on the HPE Apollo XL and HPE ProLiant DL Gen10 and Gen10 Plus servers.

Offloading Mechanisms

HPE HDR InfiniBand adapters include multiple offload engines that speed up communications by delivering a low CPU overhead for increasing throughput.
HPE HDR InfiniBand adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.

Description

Are you looking for extremely high-bandwidth and very low latency communications for your HPE Apollo System and HPE ProLiant DL rack mount server families? The HPE HDR InfiniBand and Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and HPE ProLiant DL Gen10 and Gen10 Plus servers in the data center. The HPE InfiniBand HDR/HDR100 and Ethernet adapters are available as stand up cards or in the OCP 3.0 form factor, equipped with 1 port or 2 ports. Combined with HDR InfiniBand switches, they deliver low latency and up to 200Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.

What is new supporting point:
The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.
The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.

Specifications

Ports & interfaces
InternalYes
Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Fiber optic connectorQSFP56
Bandwidth
Maximum data transfer rate20000 Mbit/s
Network
Maximum data transfer rate20000 Mbit/s
Design
InternalYes
Product colourBlack, Green, Stainless steel
Compatible productsHPE ProLiant DL Rack Mount Gen10 Plus servers
Component forServer
Weight & dimensions
Width214.9 mm
Depth246.9 mm
Height62 mm
Weight440 g
Performance
Compatible productsHPE ProLiant DL Rack Mount Gen10 Plus servers
Technical details
Warranty period3 year(s)
