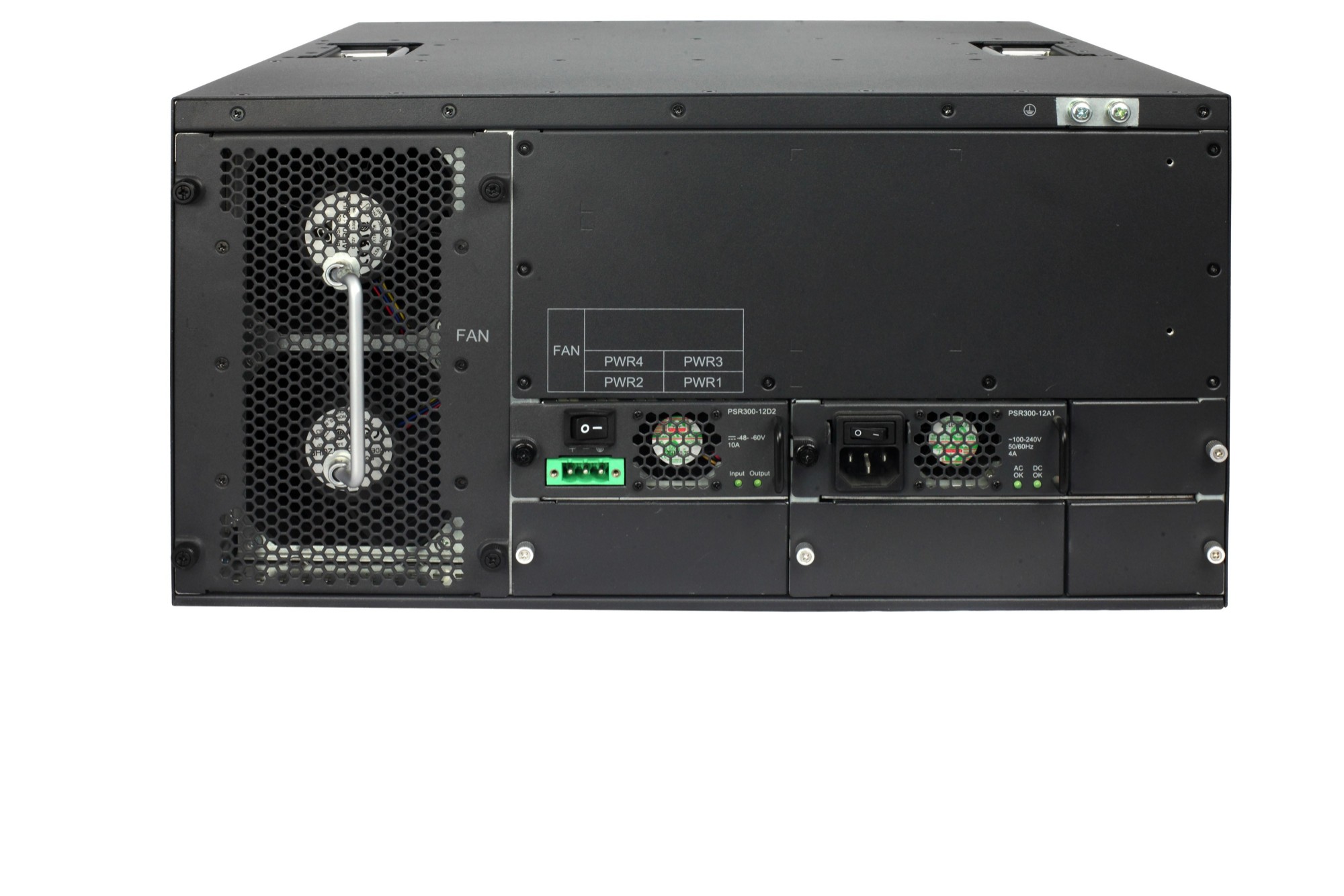

HPE Networking Comware MSR4080 Router Chassis

  • Brand: HPE
  • Category:
  • SKU: JG402A
  • EAN: 0886112790424 8861127904242 08 ...7904242 0886112790431more
Networking Comware MSR4080 Router Chassis

Trade Prices

Distributor Product SKU Stock Updated Price
NZ - Dicker Data

MSR4080 Router Chassis

 JG402A Register free see stock
NZ - Ingram Micro

HP MSR4080 Router Chassis

 2533390

Related Products

Reasons To Buy

Reduces Complexity and Simplifies Your Network

The HPE Networking Comware Router Series MSR4000 simplifies your network through integrated routing, switching, security, voice, and VPN, and combines the flexibility of modular upgrades to deliver high-performance large branch routing.
Makes administration easier with HPE Intelligent Management Center (IMC) Software.
Reduces management complexity with Zero-Touch Provisioning deployment (ZTP) and Dynamic VPN.

Enhances Time to Service and Branch Performance

The HPE Networking Comware Router Series MSR4000 offers high-performance routing with up to 36 Mpps forwarding and 28 Gbps of IPSec encryption throughput to meet the bandwidth demands of the branch.
Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
Delivers powerful aggregation capacity and high port density to satisfy the largest branches.
These routers also support HPE Open Application Platform (OAP) modules to deliver integrated industry-leading HPE AllianceOne partner applications such as virtualization, unified communications and collaboration (UC&C), and application optimization capabilities.
The MSR4000 series provides a full-featured, resilient routing platform, including IPv6 and Multiprotocol Label Switching (MPLS), with up to 36 Mpps forwarding capacity and 28 Gbps of IPSec Virtual Private Networks (VPN) encrypted throughput.

Increases Your Return on Investment

The HPE Networking Comware Router Series MSR4000 is a modular platform with a wide range of connectivity options that enables the right design for your needs.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.
The MSR4000 Series provides an agile, flexible network infrastructure that enables you to quickly adapt to your changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.

Boosts Large Branch Agility and Resiliency

The HPE Networking Comware Router Series MSR4000 is built on distributed architecture with separate hardware data and control planes for increased resiliency.
Facilitates high reliability with 4G/LTE and 3G WAN, dual MPUs, redundant power supplies.
Gives you an open standards approach to networking with the Open Application Platform module by supporting HPE AllianceOne applications such as WAN acceleration and Microsoft Skype for Business (Lync).

Description

The HPE Networking Comware Router Series MSR4000 delivers high-performance large branch routing with up to 36 Mpps in a cost-optimized form factor. Featuring integrated routing, switching, security, VPN, and SIP with no additional licensing, you can boost your service delivery while simplifying the management of your corporate WAN. The MSR4000 Series leverages separated data and control planes, dual main processing units (MPUs), and support for up to four power supplies. The routers provide a full-featured, resilient routing platform with the latest multicore CPUs, offer 10 Gigabit SFP+ integrated, provide an enhanced PCI bus, and ship with the latest version of HPE Comware software to help enable high performance with concurrent services. With the Open Application Platform module, the MSR4000 Series offers a wide range of virtualized applications. Its distributed, modular architecture and high reliability also strengthen the resiliency of large branches.

Specifications

Ethernet LAN features
Ethernet LAN data rates10,100,1000 Mbit/s
Performance
Traffic controlYes
WAN connection
Ethernet WANYes
DSL WANNo
SIM card slotNo
3G/4G USB modem compatibilityYes
Network
Auto MDI/MDI-XYes
Traffic controlYes
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3
Ethernet LAN data rates10,100,1000 Mbit/s
Port forwardingYes
Forwarding rate36 Mpps
Multicast supportYes
VLAN supportYes
Ethernet interface typeGigabit Ethernet
Management features
Web-based managementNo
Quality of Service (QoS) supportYes
Ports & interfaces
Ethernet LAN (RJ-45) ports6
Number of MPU slots2
Protocols
DHCP serverYes
DHCP clientYes
Routing protocolsRIP-1, RIP-2
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL)
Security
Security algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
FirewallYes
ARP attack preventionYes
Access Control List (ACL)Yes
ICMP attack preventionYes
Design
Rack mountingYes
Product colourBlack, Silver
Rack capacity5U
Power
Power source typePoE
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power over Ethernet (PoE)Yes
Power consumption (typical)300 W
Operational conditions
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)5 - 90%
Weight & dimensions
Width440 mm
Depth480 mm
Height175 mm
Weight20.6 kg
