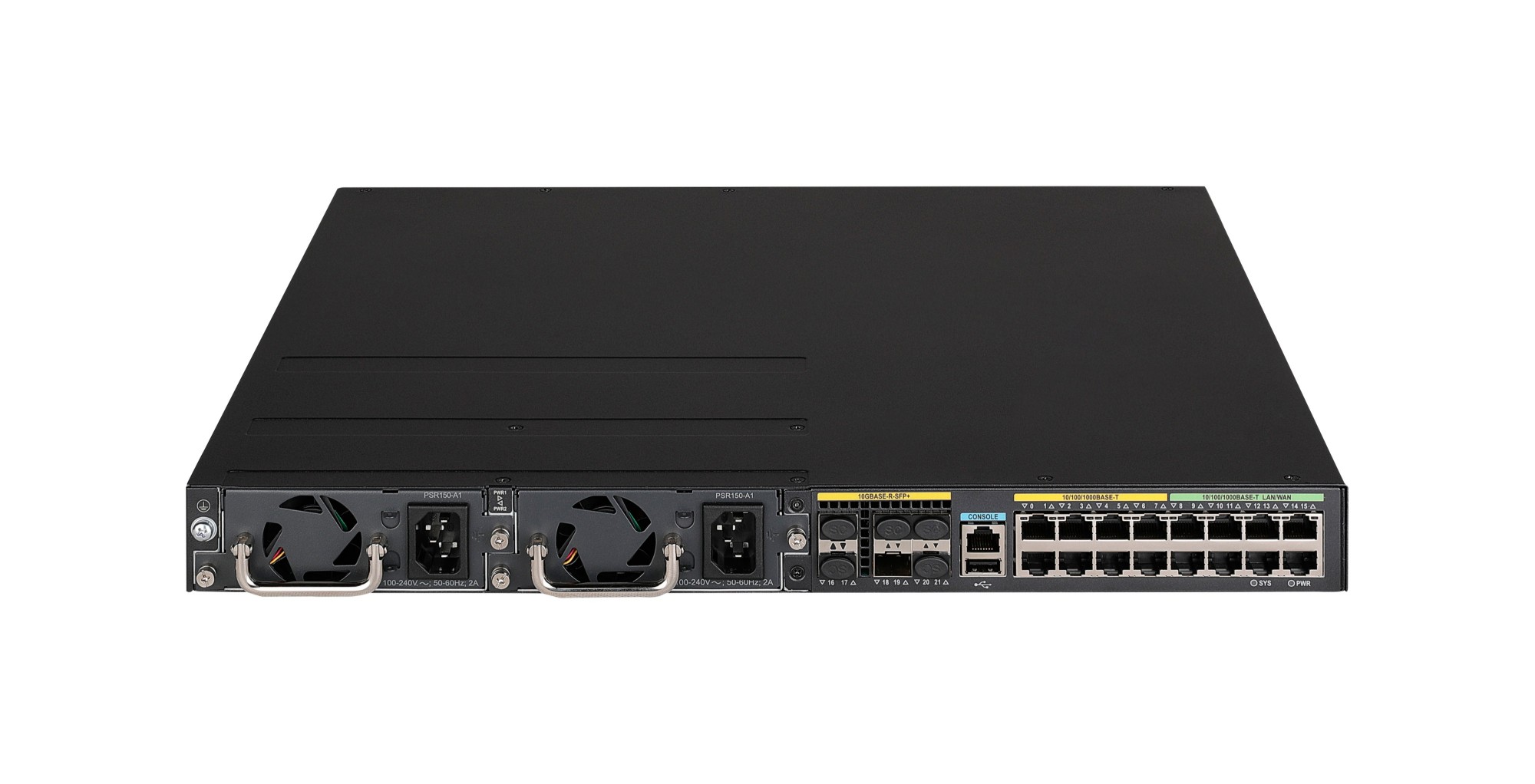

HPE Networking Comware Router MSR3026

  • Brand: HPE
  • Category:
  • SKU: R9J03A
  • EAN: 0190017584843
Networking Comware Router MSR3026

Trade Prices

Distributor Product SKU Stock Updated Price
NZ - Ingram Micro

HPE Networking Comware Router MSR3026

6471655 Register free see stock

Related Products

Reasons To Buy

Reduces Complexity and Simplifies Your Network

The HPE Networking Comware Router Series MSR3000 simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance medium-to-large branch routing.
Makes administration easier with HPE Networking Intelligent Management Center (IMC) Software.
Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.

Enhances Time to Service and Branch Performance

The HPE Networking Comware Router Series MSR3000 offers high performance routing with up to 13 Mpps forwarding and 14.3 Gbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic.
Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
Satisfies medium to large branches with advanced hardware architecture and high port density.

Increases Your Return on Investment

The HPE Networking Comware Router Series MSR3000 is a modular platform with a wide range of connectivity options that enables the right design for your needs.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.

Boosts Agility and Resiliency

TheHPE Networking Comware Router Series MSR3000 provides Open Application Platform module that supports HPE Alliance One applications such as WAN acceleration and Microsoft Skype for Business (Lync).
Delivers an open standards approach to your network infrastructure.
With advanced hardware architecture and FPBA modules, you get reliable, high-performance functionality with multi-core processors.

Description

The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.

What is new supporting point:
Additional features such as ADVPN and hierarchical QoS.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
High-density voice modules and channelized POS access to cover.

Specifications

Network
MAC address table500000 entries
Traffic controlYes
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
VLAN supportYes
Ethernet interface type10 Gigabit Ethernet, Gigabit Ethernet
Performance
Internal memory typeDDR3
Traffic controlYes
Flash memory1000 MB
Internal memory4096 MB
Built-in processorYes
Processor frequency1800 MHz
Heat dissipation168 BTU/h
WAN connection
Ethernet WANYes
DSL WANNo
SIM card slotNo
3G/4G USB modem compatibilityYes
Mobile network
Mobile network generation4G
Management features
Web-based managementYes
Quality of Service (QoS) supportYes
Ports & interfaces
Ethernet LAN (RJ-45) ports8
USB ports quantity1
USB version2.0
Smart Interface Card (SIC) slots quantity2
WAN/Ethernet LAN ports quantity8
Protocols
DHCP serverYes
DHCP clientYes
Security
MAC address table500000 entries
Security algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES
Features
Internal memory typeDDR3
Flash memory1000 MB
Internal memory4096 MB
Built-in processorYes
Processor frequency1800 MHz
Heat dissipation168 BTU/h
Design
Rack mountingYes
Product colourBlack
Rack capacity1U
Power
Power source typeAC
Power consumption (typical)100 W
Operational conditions
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)5 - 90%
Weight & dimensions
Width470 mm
Depth439 mm
Height43 mm
Weight5.9 kg
