QuWireless QuMax network antenna Directional antenna PoE/LAN 6 dBi
- Brand: QuWireless
- Category:
- SKU: A955M
- EAN: 5907772035108
Antenna QuMax for Teltonika RUT956/RUT955
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
QuSpot A955M 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUT955, RUT956 Cellular Routers |
A955M |
Description

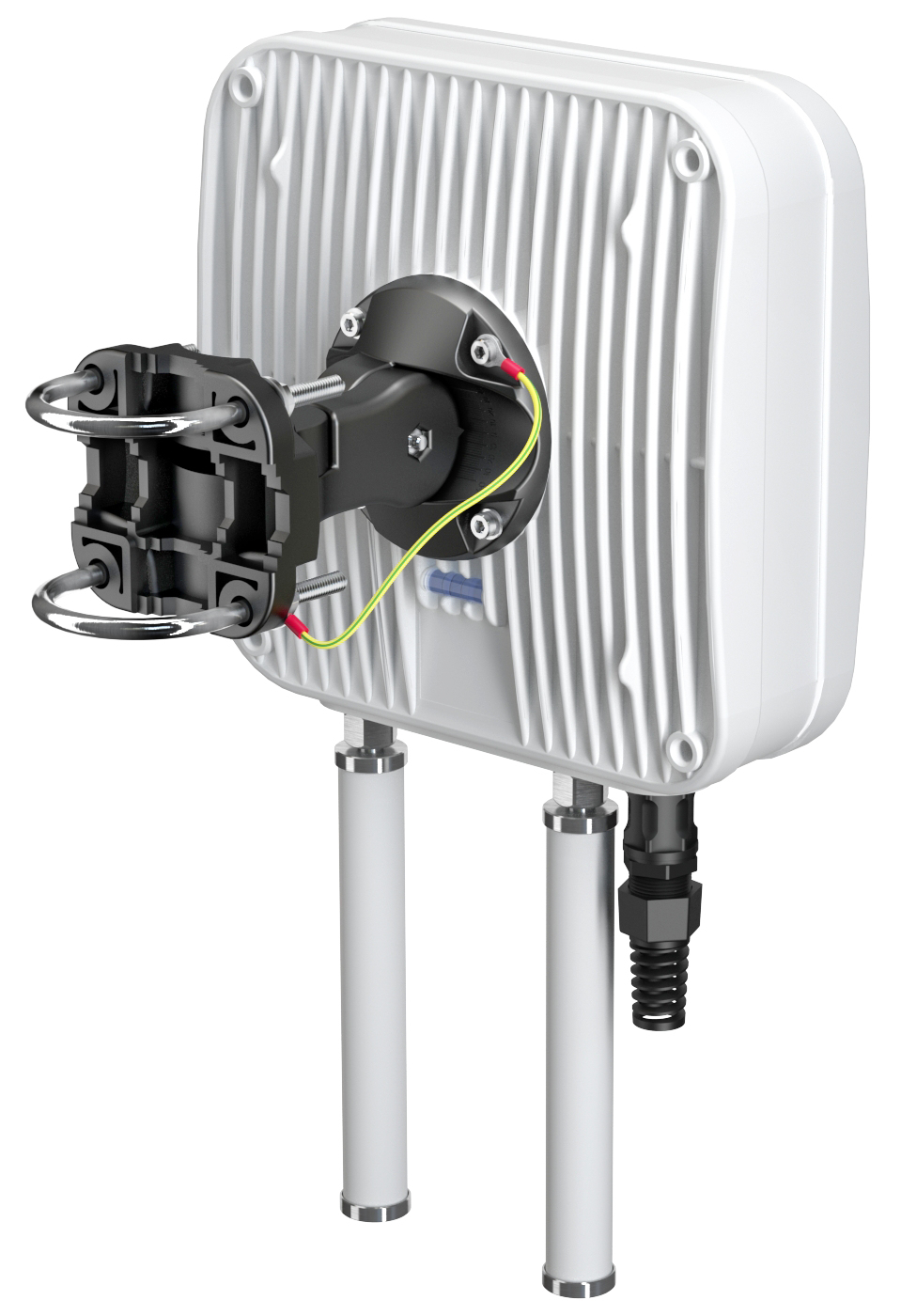

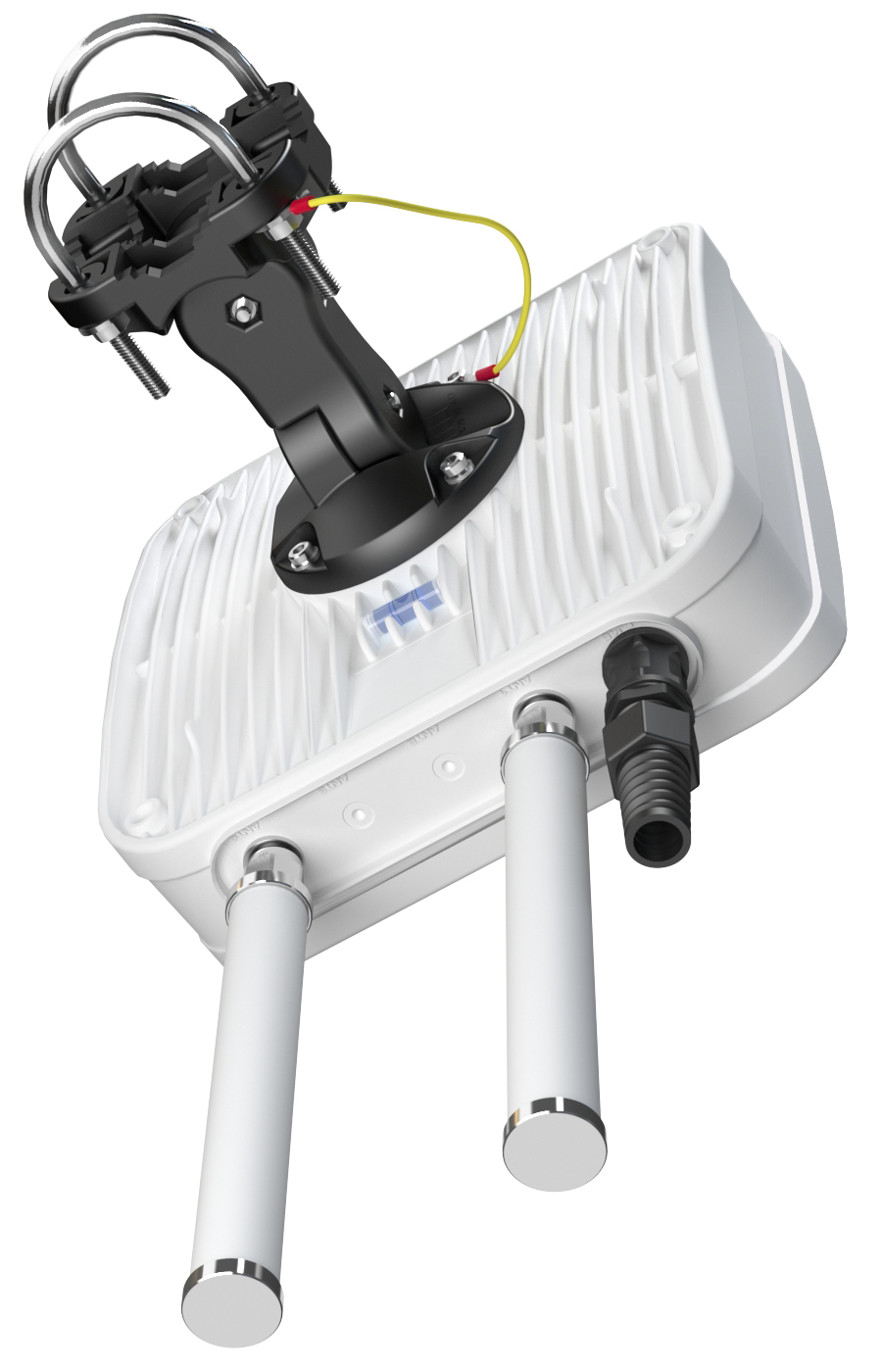

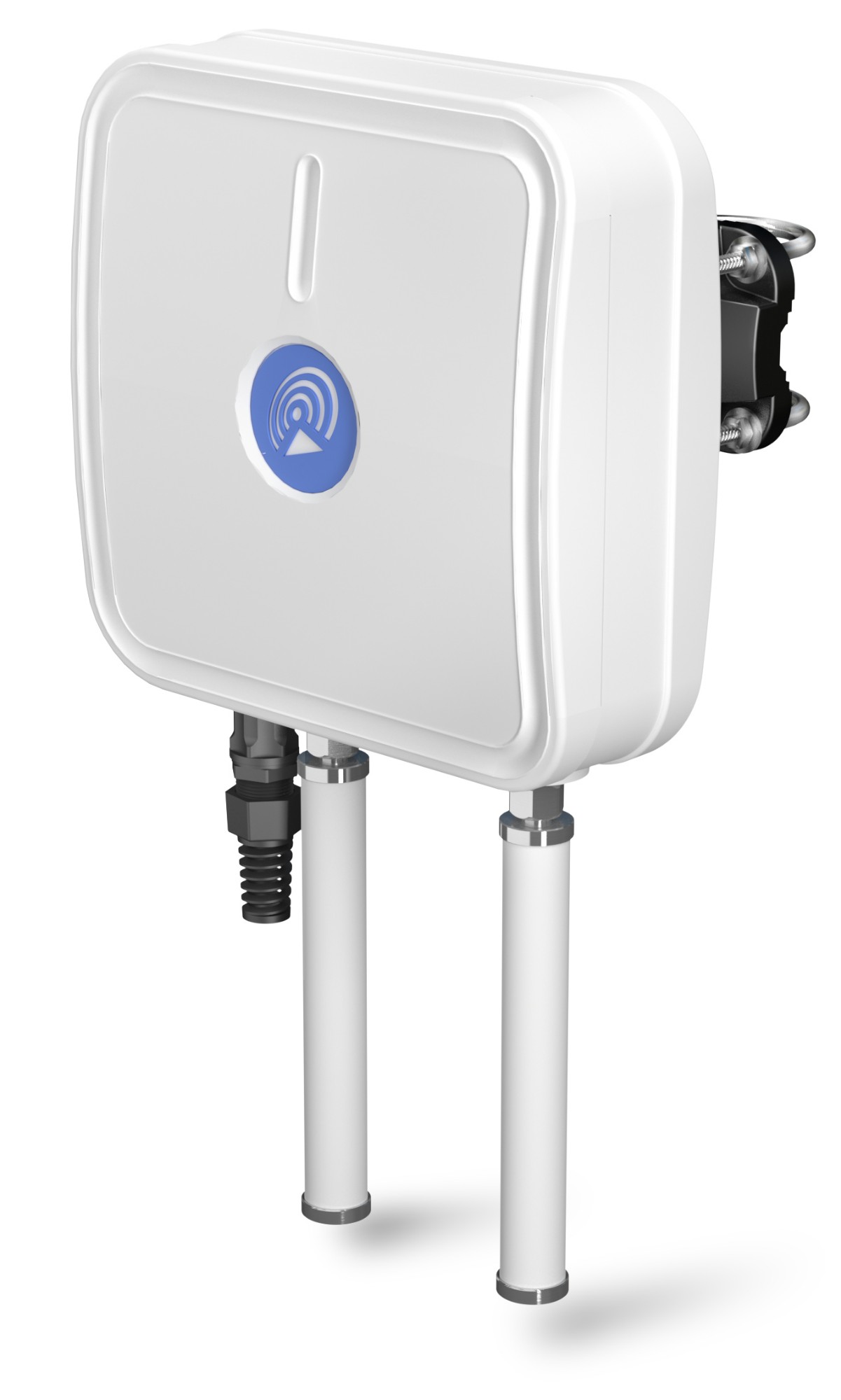

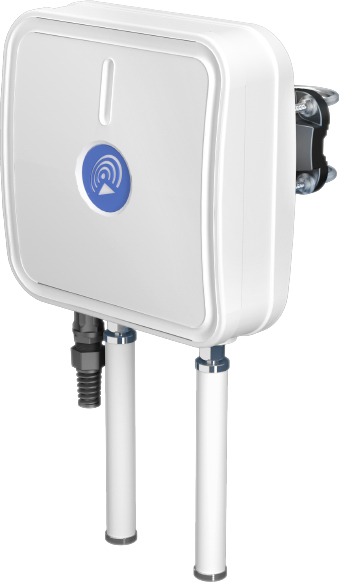

Integrated outdoor multi-band high power LTE directional antenna + outdoor Wi-Fi omni antenna + GPS antenna + place to install Teltonika RUT956 or RUT955 (All-in-one)

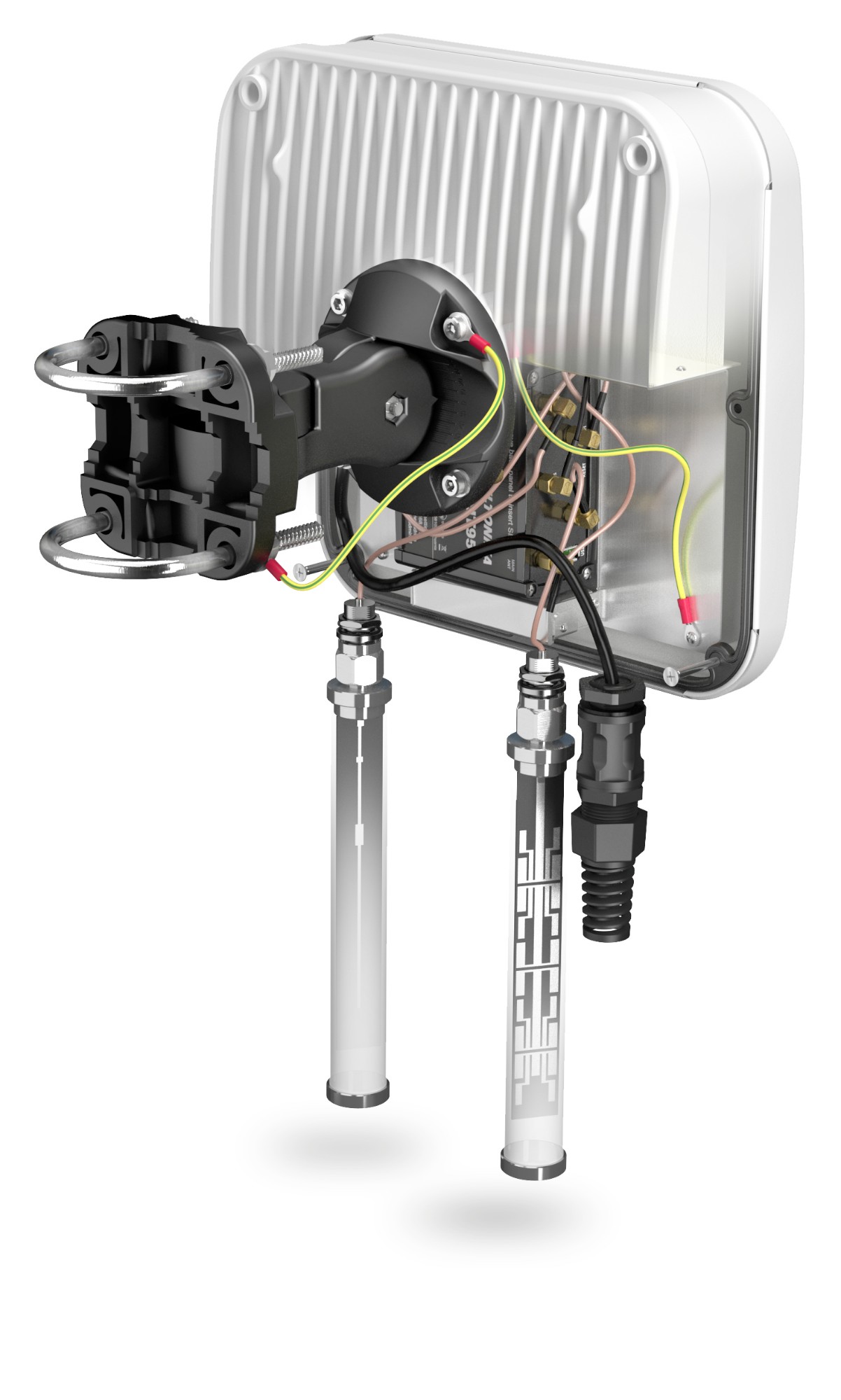

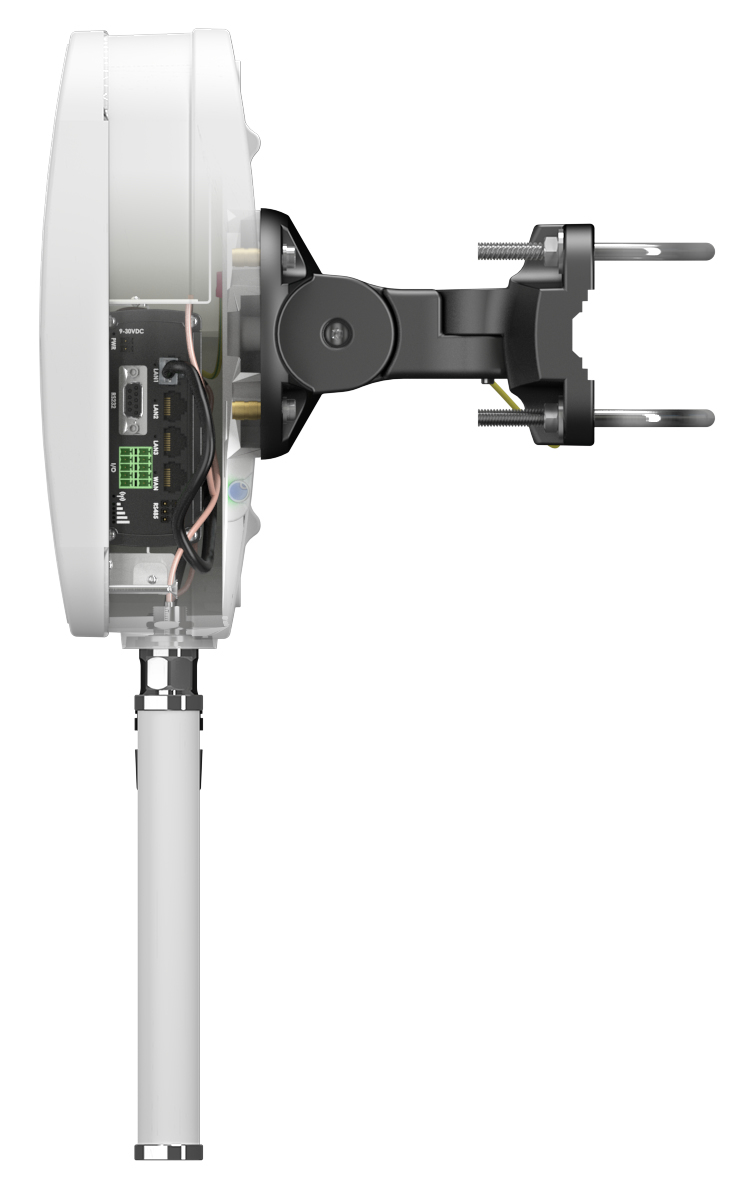

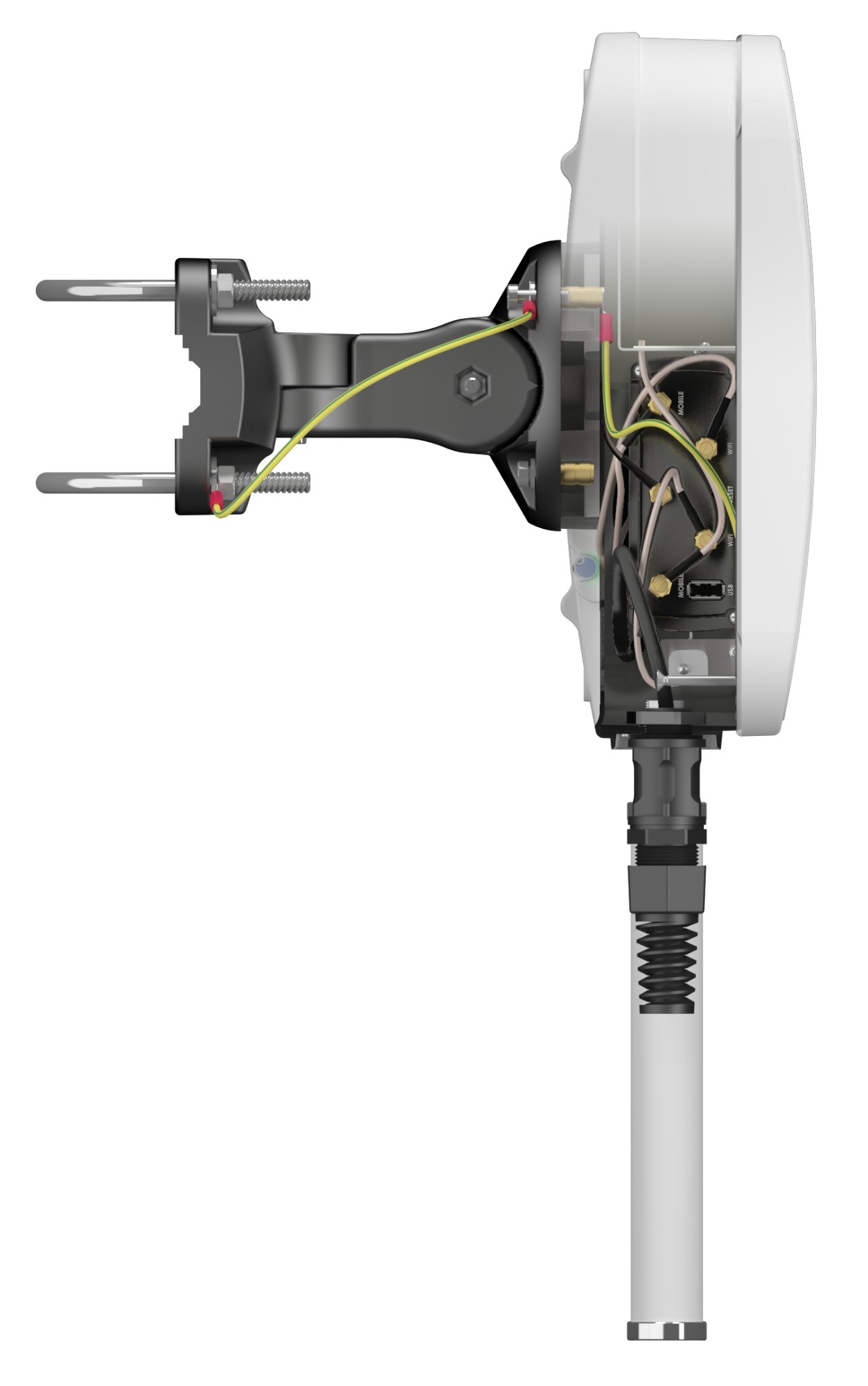

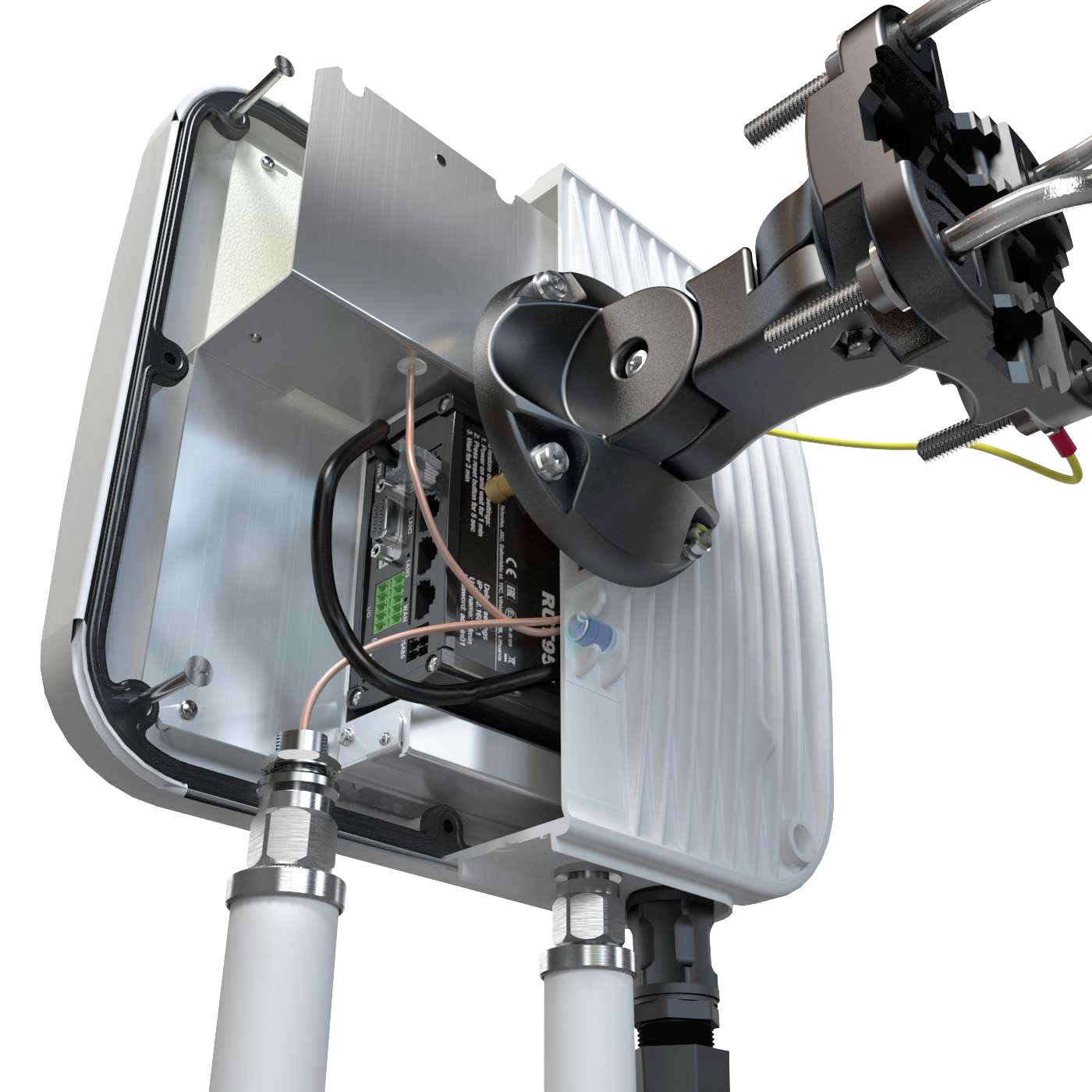

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT956, RUT955 or RUT906 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna and outdoor Wi-Fi omni antennas.
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT956, RUT955 or RUT906 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna and outdoor Wi-Fi omni antennas.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Features | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Country of origin | Poland |
| International Protection (IP) code | IP67 |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 90° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 90° |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT906, RUT955, RUT956 |
| Product colour | White |
| Technical details | |
| Harmonized System (HS) code | 85177100 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 1.8 kg |
| Width | 272 mm |
| Depth | 96 mm |
| Height | 276 mm |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
