StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub

StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub

  • Brand: StarTech.com
  • Category:
  • SKU: SV431DDVDUA
  • EAN: 0065030835701 1320010368754 07 ...0368754 0777785540129 5054629202739 0617407485417 5054484276098 0650308357018 5054533276093 0777786300838 0777781890952 5052584226944 0778889309933 7755774168205 5052217131133more
StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio and USB 2.0 Hub

Trade Prices

Distributor Product SKU Stock Updated Price
AU - Dicker Data Limited 4 PORT KVM SWITCH, DUAL DISPLAY, DVI(5), VGA(5), USBA/B(4), AUDIO SV431DDVDUA Register free see stock
AU - Ingram Micro 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio and USB 2.0 Hub 1607458
NZ - Dicker Data .COM 4 PORT DVI VGA DUAL MONITOR KVM SWITCH USB WITH AUDIO, 3 YR SV431DDVDUA
NZ - Ingram Micro 4 Port DVI VGA Dual Monitor KVM Switch 1607458

Description

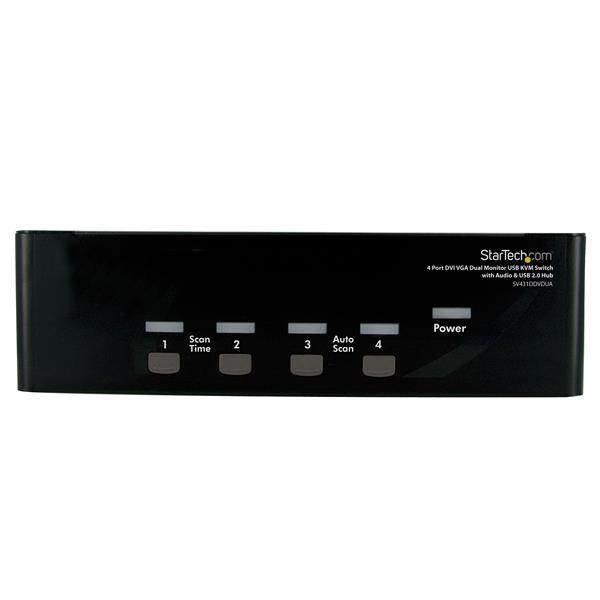

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

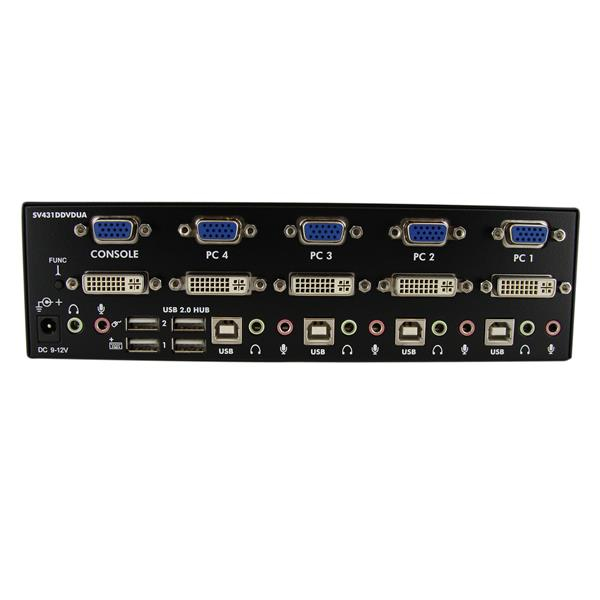

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.

The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution

Specifications

Ports & interfaces
Console USB ports quantity4
Console ports3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
USB connector typeUSB Type-A
Number of microphone inputs1
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA/DVI-I
Audio connectionsYes
VGA (D-Sub) ports quantity5
Headphone outputs1
DVI-I ports quantity5
DC-in jackYes
Performance
Daisy chainNo
Maximum resolution1920 x 1200 pixels
Number of users1 user(s)
Design
Mean time between failures (MTBF)140000 h
Product colourBlack
LED indicatorsYes
Hot keysYes
CertificationCE, FCC, UL, REACH
Housing materialSteel
Display
Built-in displayNo
On Screen Display (OSD)No
Power
Input current0.8 A
Output current1.5 A
Power plug typeType M
Compatible power plug typesAU, EU, UK, US
Output voltage12 V
Power consumption (typical)18 W
External power adapterYes
Input voltage100 - 240 V
Video
Maximum resolution1920 x 1200 pixels
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width220 mm
Depth163 mm
Height60 mm
Weight1.3 kg
Package width295 mm
Package depth249 mm
Package height86 mm
Package weight1.8 kg
Packaging data
Package width295 mm
Package depth249 mm
Package height86 mm
Package weight1.8 kg
Packaging content
Rubber feetYes
ManualYes
AC adapter includedYes
Certificates
CertificationCE, FCC, UL, REACH
Other features
IP controlNo
Hot keysYes
Technical details
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code85176200
