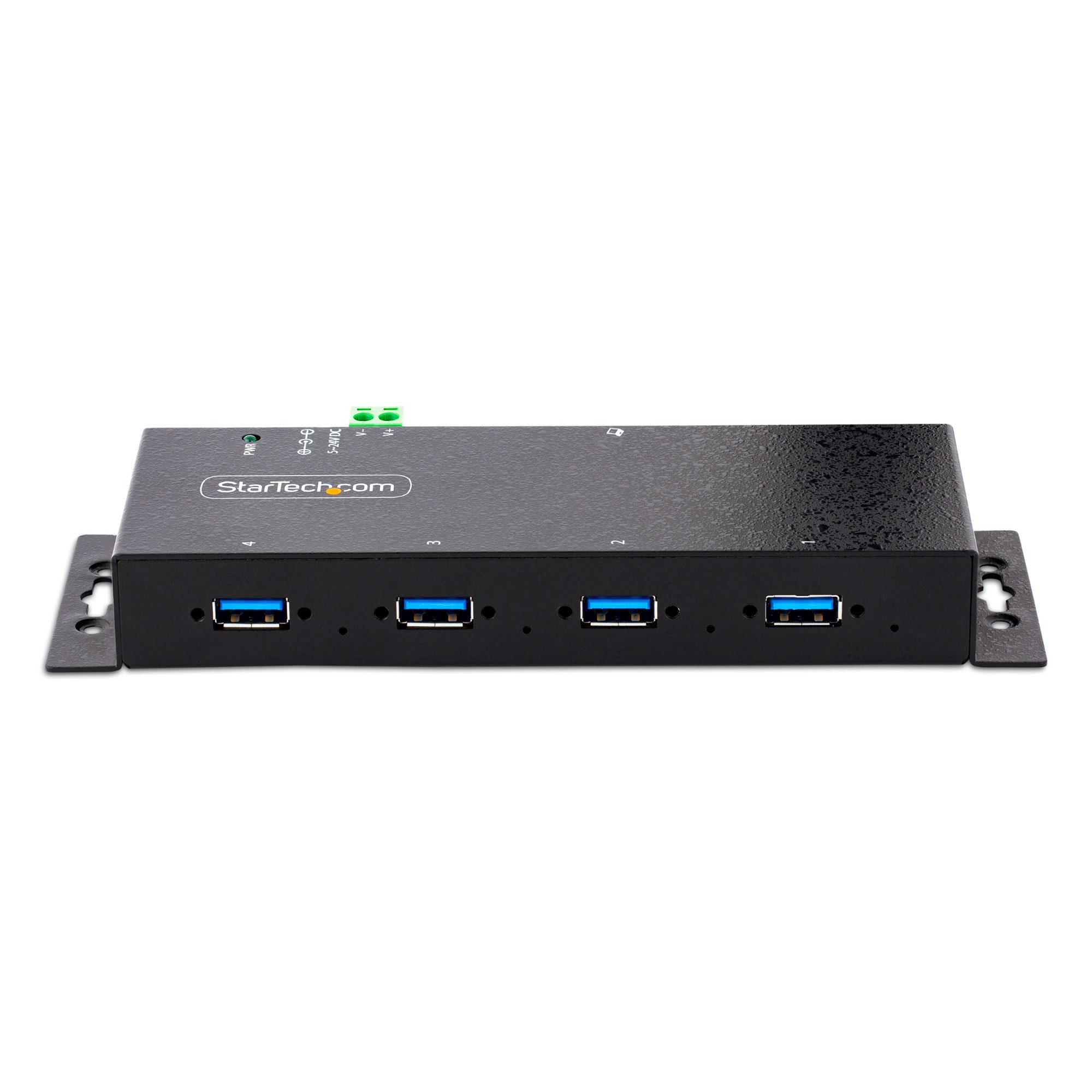

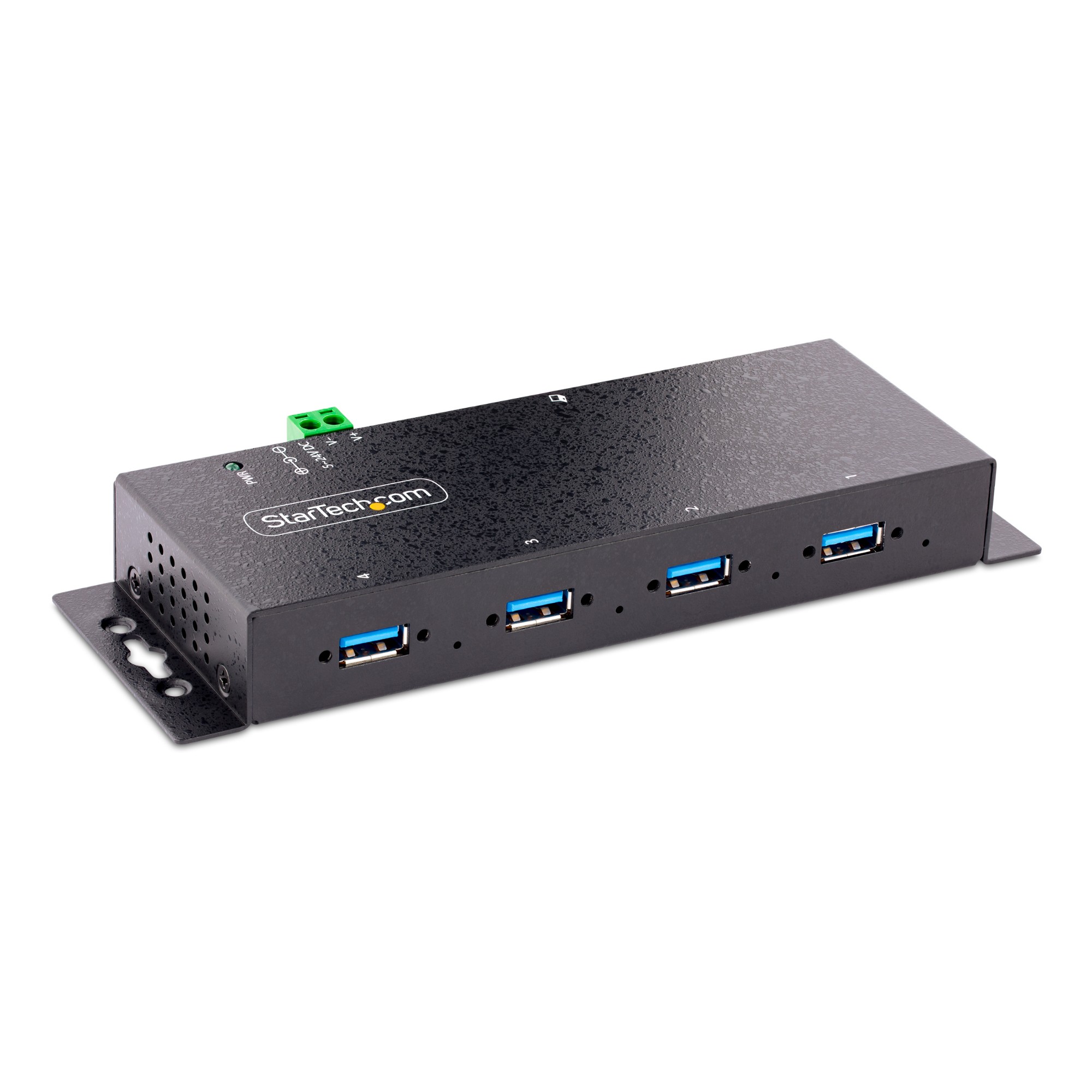

StarTech.com 4-Port Industrial USB 3.0 Hub with ESD Protection~4-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub - Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub

StarTech.com 4-Port Industrial USB 3.0 Hub with ESD Protection~4-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub - Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub

  • Brand: StarTech.com
  • Category:
  • SKU: ST4300USBM
  • EAN: 0065030841603 0021112436907 08 ...2436907 0851975717710 5054484324232 0163121397180 0132017931326 0898029631677 1320010251940 0777787401053 0742709120374 0012300518819 0803982802569 0650308416036 0806291858128 0999996670086 5054629229033 7426800857812 5054533324237more
StarTech.com 4-Port USB 3.0 Hub - Metal Industrial USB-A Hub - Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub (ST4300USBM)

Trade Prices

Distributor Product SKU Stock Updated Price
AU - Dicker Data Limited 4 PORT USB 3.0 HUB, INDUSTRIAL, METAL, ESD PROTECTION, MOUNT, 2YR ST4300USBM Register free see stock
AU - Ingram Micro Mountable 4 Port Rugged Industrial SuperSpeed USB 3.0 Hub 1618800
NZ - Dicker Data .com 4 Port USB 3.0 Hub (USB-A) - Metal Industrial Hub - Mountable 2 YR ST4300USBM
NZ - Ingram Micro Mountable 4 Port Rugged USB 3.0 Hub 1618800

Description

Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | 5 Gbps

This TAA compliant 4-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers four connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 20W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and an included 1.8-meter USB host cable, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5 Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST4300USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
Terminal block portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ports quantity4
Hub interfacesUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
DC-in jackYes
Features
Data transfer rate5000 Mbit/s
LED indicatorsPower, USB
Hot-swapYes
Product colourBlack
Plug and PlayYes
CertificationRoHS, CE, FCC, TAA, REACH
Housing materialSteel
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
Power
Power plug typeType M
Power consumption (typical)36 W
Output voltage12 V
Output current3 A
Performance
CertificationRoHS, CE, FCC, TAA, REACH
Data transfer rate5000 Mbit/s
Hot-swapYes
Plug and PlayYes
Mean time between failures (MTBF)245881 h
Harmonized System (HS) code84719000
System requirements
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supportedMac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Weight & dimensions
Width59.6 mm
Depth152 mm
Height24 mm
Weight301 g
Package width295 mm
Package depth191 mm
Package height69 mm
Package weight1.2 kg
Packaging data
Package width295 mm
Package depth191 mm
Package height69 mm
Package weight1.2 kg
Quantity per pack1 pc(s)
Packaging content
ManualYes
Included power plug typesAU, EU, NA, UK
Cables includedUSB
AC adapter includedYes
Design
LED indicatorsPower, USB
Product colourBlack
CertificationRoHS, CE, FCC, TAA, REACH
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)5 - 95%
Logistics data
Master (outer) case width402 mm
Master (outer) case length513 mm
Master (outer) case height318 mm
Products per master (outer) case14 pc(s)
Harmonized System (HS) code84719000
Technical details
Harmonized System (HS) code84719000
Other features
ChipsetVIA/VLI - VL811+
