StarTech.com 4-Port USB 3.0 Extender over Ethernet up to 330ft (100m) via Cat6a / Cat7 / Cat8 RJ45 Cable, Extension for Remote USB Devices, 4x USB-A 5Gbps Hub, TAA
- Brand: StarTech.com
- Category:
- SKU: C10043-USB-EXTENDER
- EAN: 0065030924245
StarTech 4-Port USB 3.0 Extender over Ethernet up to 330ft (100m) via Cat6a / Cat7 / Cat8 RJ45 Cable, Extension for Remote USB Devices, 4x USB-A 5Gbps Hub, TAA
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
4-PORT USB 3.0 EXTENDER OVER ETHERNET UP TO 330FT, CAT6A/7/8, 2 YR |
C10043-USB-EXTENDER | |||
|
4-Port USB 3.0 Extender over Ethernet up to 330ft (100m) via Cat6a / Cat7 / Cat8 RJ45 Cable Extension for Remote USB Devices 4x USB-A 5Gbps Hub TAA |
6797682 | |||
|
.COM 4-PORT USB 3.0 EXTENDER OVER ETHERNET UP TO 330FT, CAT6A/7/8, 2 YR |
C10043-USB-EXTENDER | |||
|
4-Port USB 3.0 Extender over Ethernet |
6797682 |
Description
Extend four USB 3.0 peripherals up to 330ft (100m) over Cat6a/Cat7/Cat8
USB 3.0 over Ethernet Extender Kit connects up to four USB peripherals to a host computer up to 330ft (100m) away via a single direct-run Cat6a, Cat7, or Cat8 RJ45 cable.
Overcome USB Distance Limitations
This compact extension adapter kit is ideal for extending the typical reach of USB cables beyond standard lengths. Use it to connect webcams, data acquisition tools, storage devices, and input peripherals in locations such as classrooms, kiosks, industrial workstations, or control rooms. The system supports USB 3.2 Gen 1 (5Gbps) data rates, delivering high-speed performance without sacrificing reliability over long distances.
Flexible Power Over Cable (PoC) Setup
Power either the transmitter or receiver unit with the included power adapter, as both devices share power via the Ethernet cable, simplifying setup and reducing the need for separate power sources at both ends of the link, especially useful in space-constrained or hard-to-access environments.
Support Pro-Grade Integration
Delivers 5Gbps speeds and features RS-232 passthrough for serial control in automation setups. Built with rugged metal housings for enhanced protection and durability.
Driverless and OS-independent, this point-to-point USB extender requires no software and is compatible with Windows, macOS, and Linux.
USB 3.0 over Ethernet Extender Kit connects up to four USB peripherals to a host computer up to 330ft (100m) away via a single direct-run Cat6a, Cat7, or Cat8 RJ45 cable.
Overcome USB Distance Limitations
This compact extension adapter kit is ideal for extending the typical reach of USB cables beyond standard lengths. Use it to connect webcams, data acquisition tools, storage devices, and input peripherals in locations such as classrooms, kiosks, industrial workstations, or control rooms. The system supports USB 3.2 Gen 1 (5Gbps) data rates, delivering high-speed performance without sacrificing reliability over long distances.
Flexible Power Over Cable (PoC) Setup
Power either the transmitter or receiver unit with the included power adapter, as both devices share power via the Ethernet cable, simplifying setup and reducing the need for separate power sources at both ends of the link, especially useful in space-constrained or hard-to-access environments.
Support Pro-Grade Integration
Delivers 5Gbps speeds and features RS-232 passthrough for serial control in automation setups. Built with rugged metal housings for enhanced protection and durability.
Driverless and OS-independent, this point-to-point USB extender requires no software and is compatible with Windows, macOS, and Linux.
Specifications
| Technical details | |
|---|---|
| Type | Console transmitter & receiver |

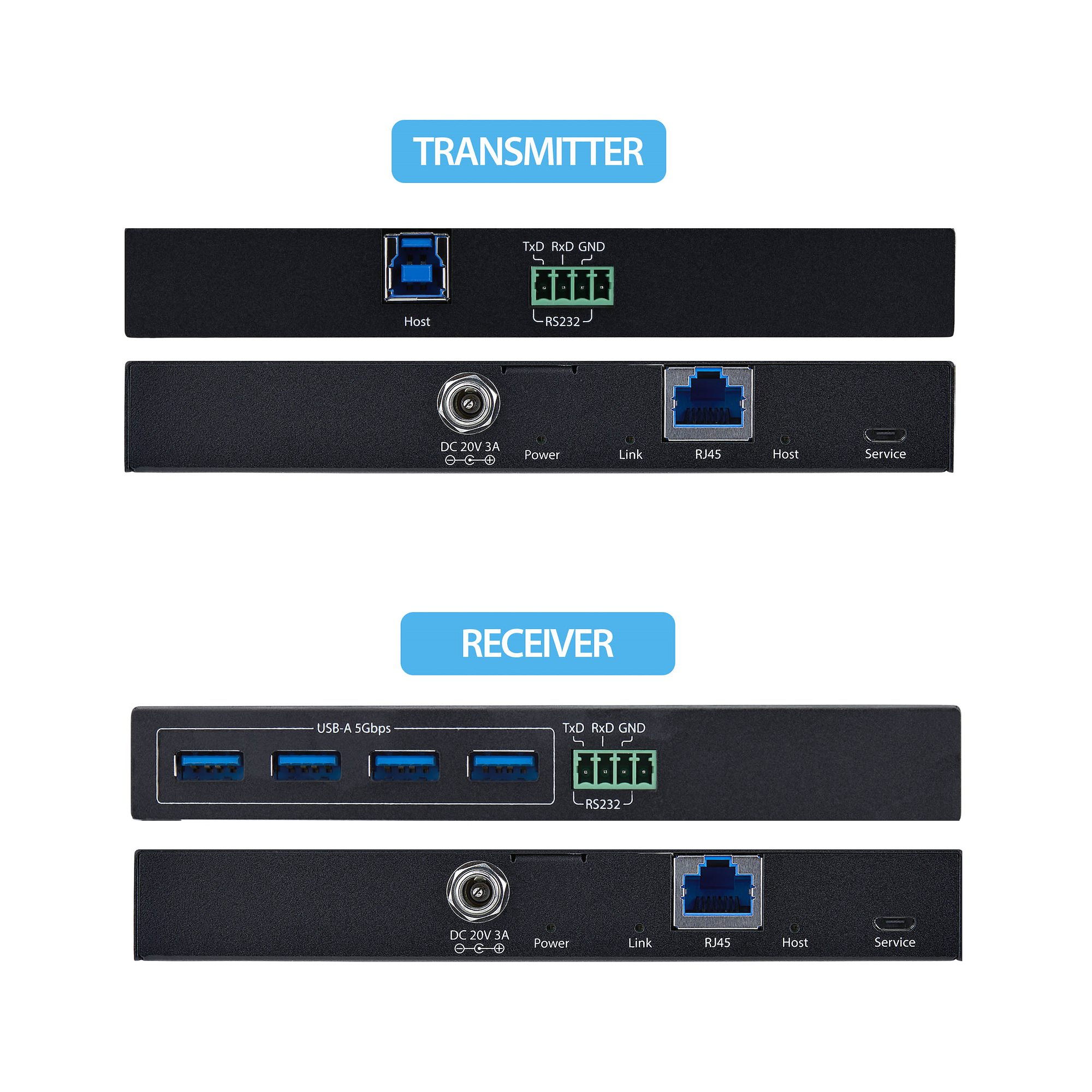

| LED indicators | Link, Power, Host |
| Housing material | Steel |
| Data transfer rate | 5000 Mbit/s |
| Cable types supported | Cat6a |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Compliance certificates | Trade Agreements Act (TAA) |
| Ports & interfaces | |
| RS-232 ports | 2 |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Micro-USB ports quantity | 2 |
| Weight & dimensions | |
| Package width | 250 mm |
| Package depth | 170 mm |
| Package height | 80 mm |
| Package weight | 1.2 kg |
| Width | 100 mm |
| Depth | 150 mm |
| Height | 20.5 mm |
| Weight | 350 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Colour | |
| Product colour | Black |

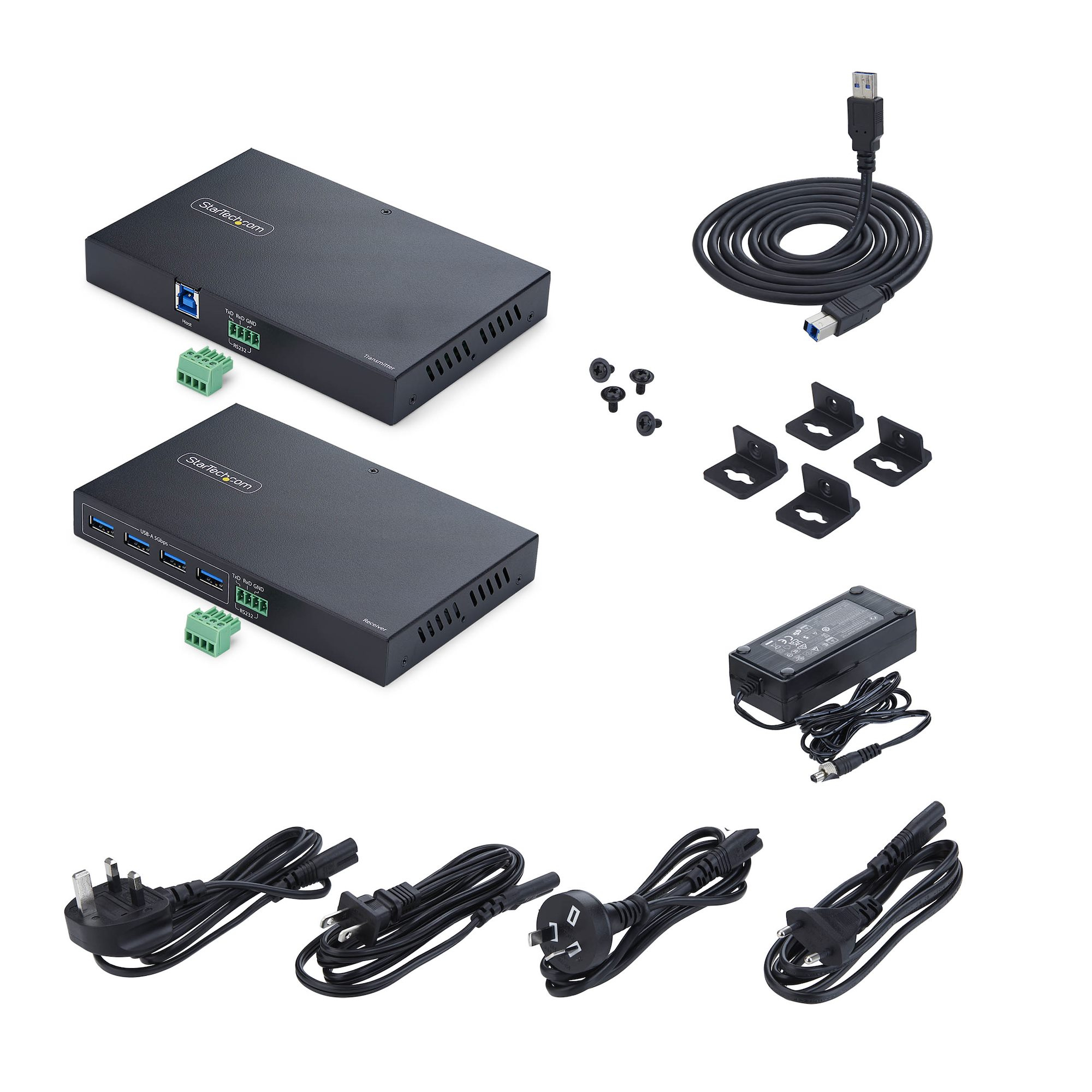

| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Cables included | USB Type-A to USB Type-B |
| Power | |
| Input current | 3 A |
| Power source type | DC |
| Power consumption (typical) | 60 W |
| Input voltage | 100 - 240 V |
| Output voltage | 20 V |
| Terminal block included | Yes |
| Included power plug types | NA, JP, ANZ, UK, EU |
| Logistics data | |
| Master (outer) case width | 535 mm |
| Master (outer) case length | 453 mm |
| Master (outer) case height | 380 mm |
| Products per master (outer) case | 10 pc(s) |
