AEG Protect B. 1000 PRO BP uninterruptible power supply (UPS) Line-Interactive 1 kVA 900 W 8 AC outlet(s)
- Brand: AEG
- Category:
- SKU: 6000013876
- EAN: 4026245138762
1000VA, 900W, 45dBA, 16kg
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
AEG PROTECT B. 1000BP PRO 8.5Ah x 4pcs. |
6000013876 |
Description
With its increased power factor of 0.9lag the Protect B PRO belongs to the most efficient line-interactive UPS systems. The parallel operation of USB/RS232 interface and the extension slot enables more communication options. Protect B Pro can be configured via the operator panel. The innovative folding mechanism allows batteries to be changed without disconnecting the UPS.
- Modern VI (line interactive) protection technology with sinus-shaped output voltage
- Low operating costs through high efficiency, power factor 0.9lag

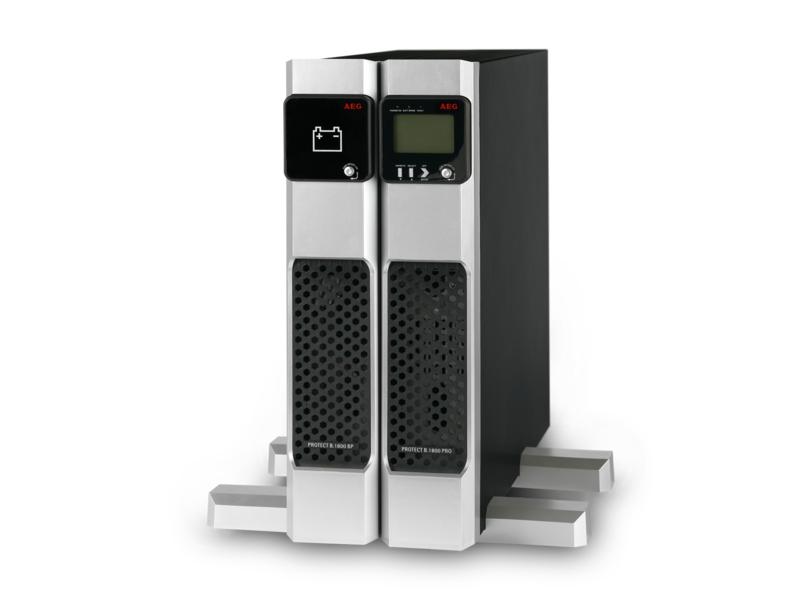

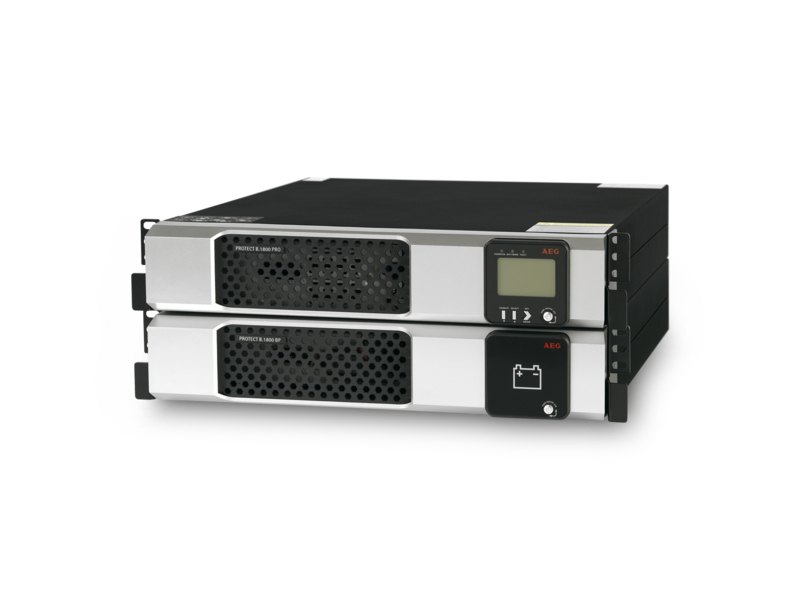

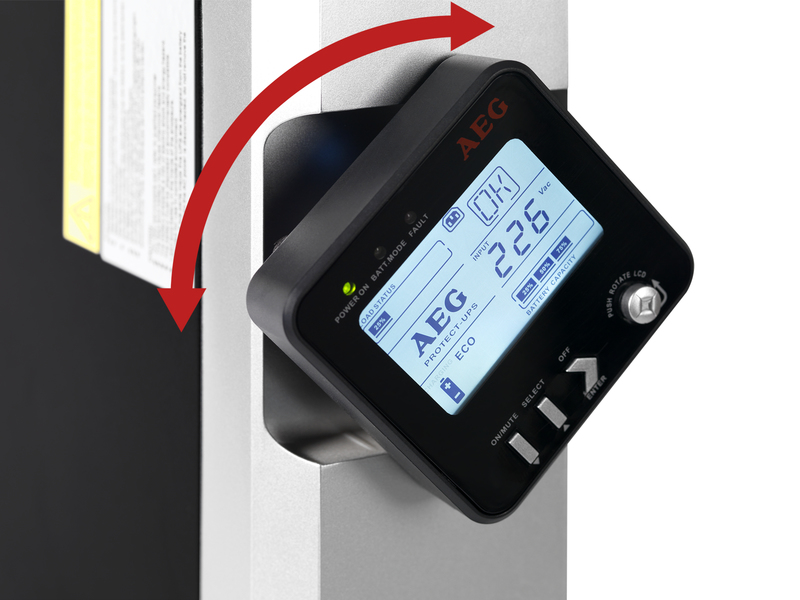

- Compact shape, flexible use through combined design tower / rack, rotary screen
- Surge protection (RJ11 / RJ45) for telephone, fax, modem and network

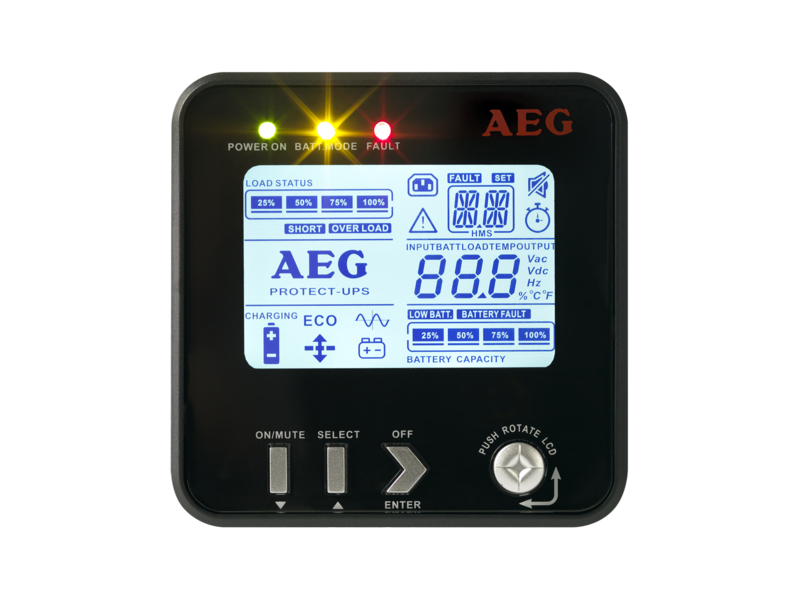

- Configuration directly on the LCD
- Full display of the essential parameters on the screen, e.g. the remaining runtime in minutes
- Intelligent monitoring system with USB and RS232 interface; parallel operation of USB / RS232 and extension slot is possible
- Modern VI (line interactive) protection technology with sinus-shaped output voltage
- Low operating costs through high efficiency, power factor 0.9lag
- Compact shape, flexible use through combined design tower / rack, rotary screen
- Surge protection (RJ11 / RJ45) for telephone, fax, modem and network
- Configuration directly on the LCD
- Full display of the essential parameters on the screen, e.g. the remaining runtime in minutes
- Intelligent monitoring system with USB and RS232 interface; parallel operation of USB / RS232 and extension slot is possible
Specifications
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 5.4 A |
| Efficiency | 97% |
| Input frequency | 50/60 Hz |
| Performance | |
| UPS topology | Line-Interactive |
| Number of phases | 1 |
| Surge protection features | Fax, Modem, Network, Telephone |
| Power protection features | Overload |
| Noise level | 45 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 5.4 A |
| Efficiency | 97% |
| Surge protection features | Fax, Modem, Network, Telephone |
| Power protection features | Overload |
| Noise level | 45 dB |
| Input frequency | 50/60 Hz |
| Number of phases | 1 |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 8 h |
| Typical backup time at half load | 36 min |
| Typical backup time at full load | 14 min |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black, Silver |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Output frequency | 50/60 Hz |
| Weight & dimensions | |
| Width | 482.6 mm |
| Depth | 420 mm |
| Height | 88 mm |
| Weight | 16 kg |
| Other features | |
| Number of phases | 1 |
