| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|

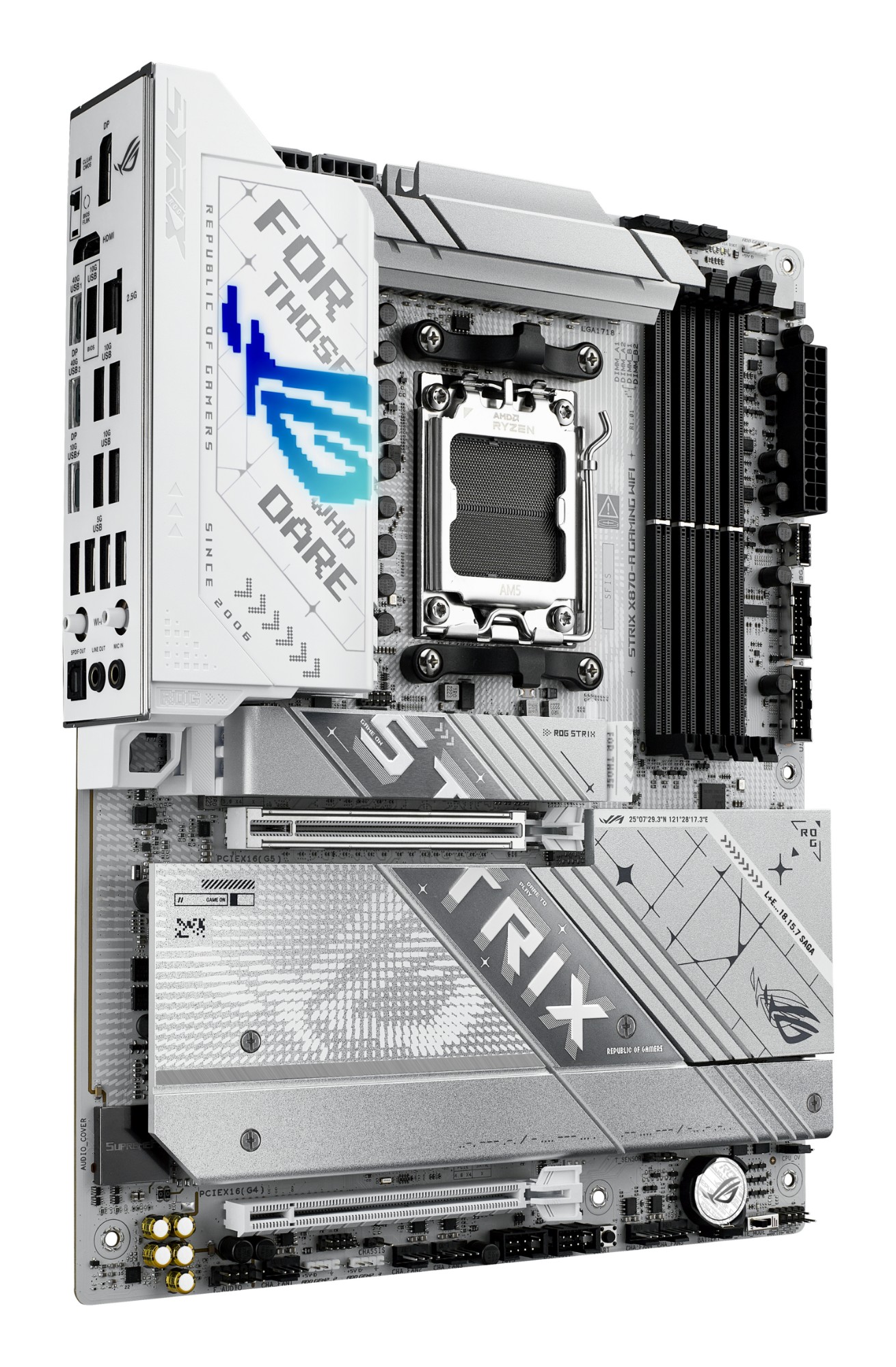

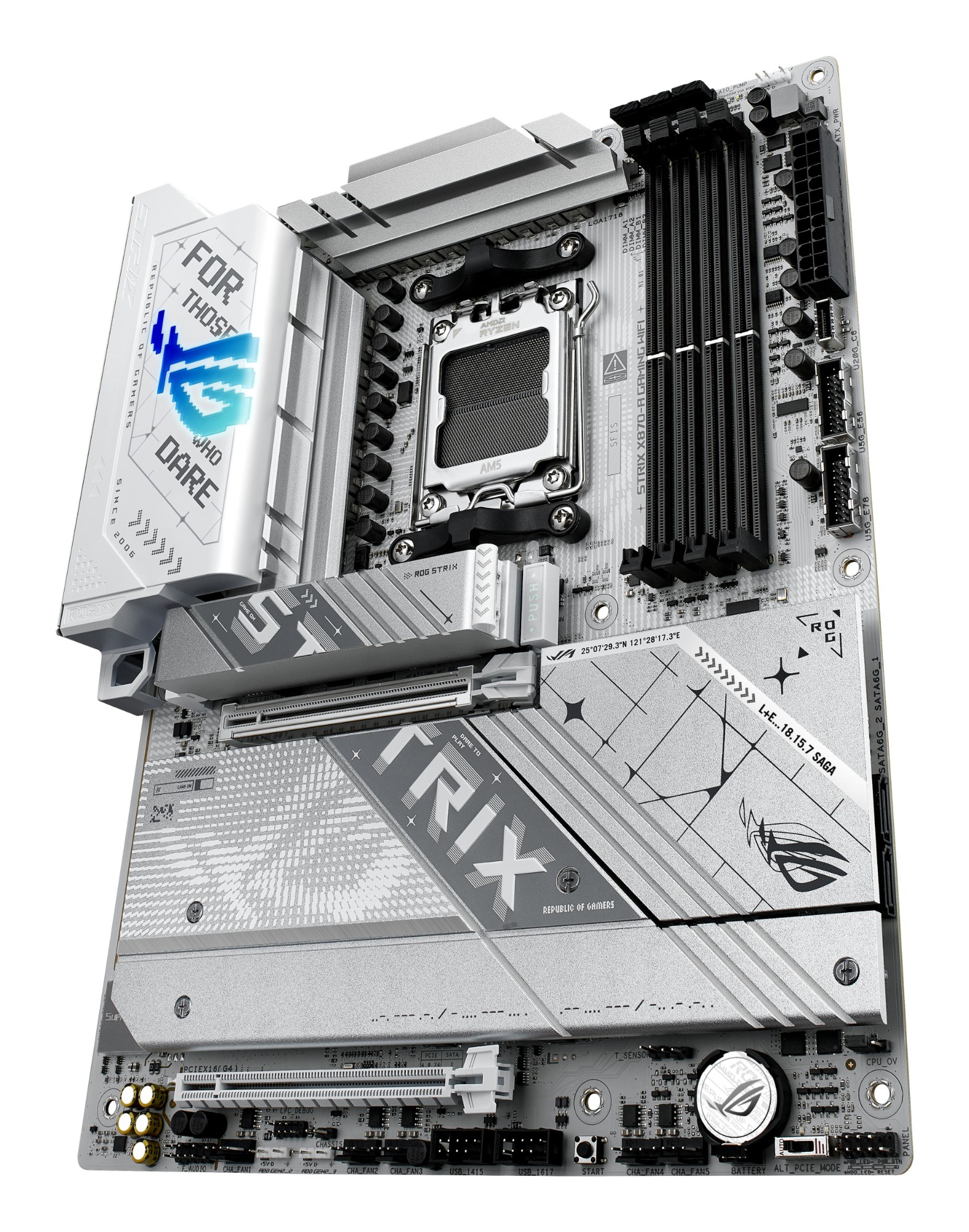

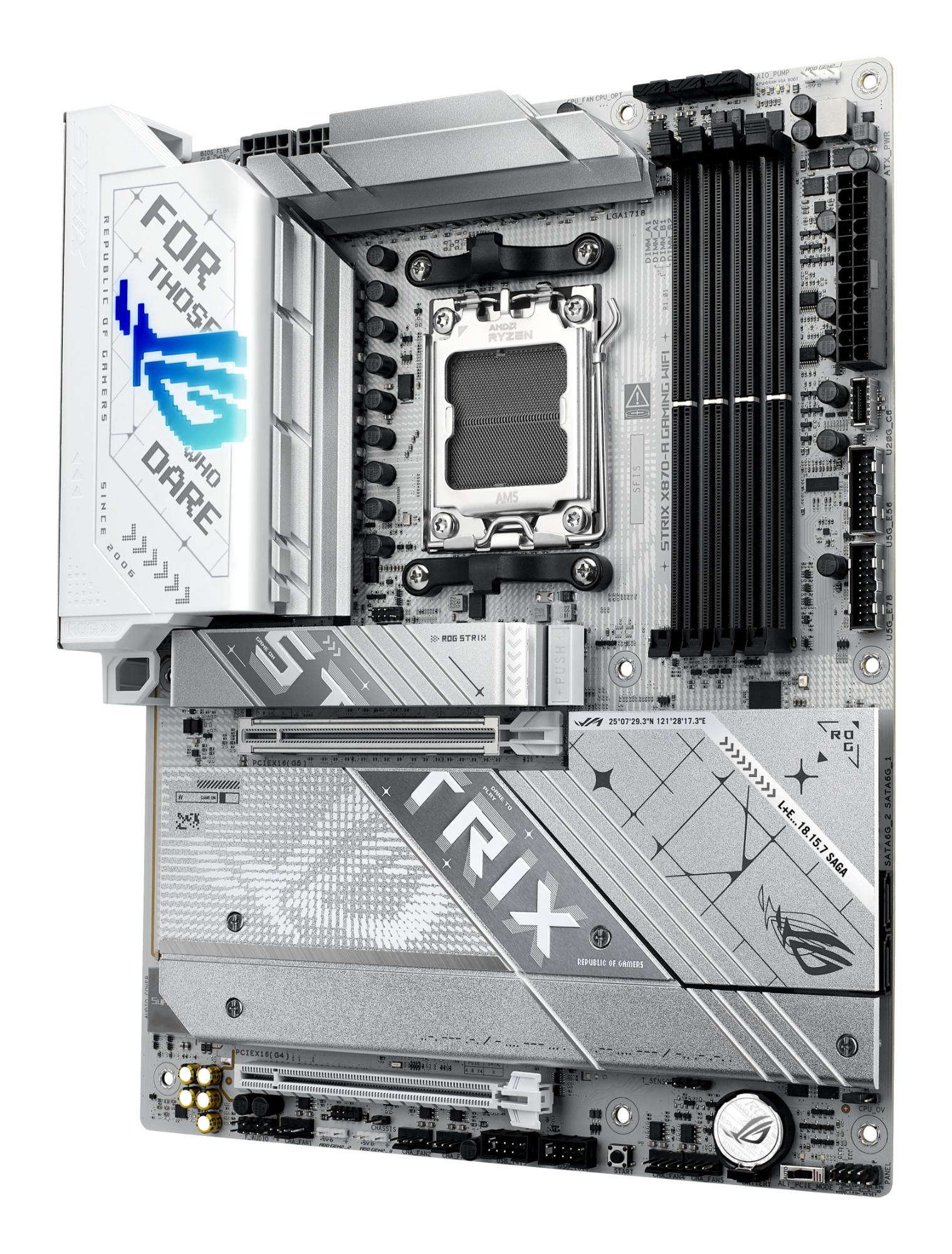

ROG STRIX X870-A GAMING WIFI |
6291177 | |||
|
AMD ROG STRIX X870-A GAMING WIFI (AM5) ATX Motherboard 4x DDR5 192GB, 1x PCIe 5.0 x16 slot, 4 x M.2 slots, 2x SATA, Wi-Fi 7, 1 x HDMI, 1 x DP |
MBA-X870A-ROG-WF | |||
|
ROG STRIX X870-A GAMING WIFI ATX Motherboard For AMD Ryzen 7000/8000/9000 Series CPUs Socket AM5 - AMD X870 Chipset - PCIe 5.0 - 4x M.2 - 2x Internal USB 2.0 Header - 2x Internal USB 3.0 Header - 1x Internal Type C Header |
MBDASU28720 |
Description
ASUS AI INTELLIGENCE
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
ai cOOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
ai cOOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| mSATA ports quantity | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Performance | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Component for | PC |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Supported processor sockets | Socket AM5 |
| RAID levels | 0, 1, 10, 5 |
| Windows operating systems supported | Windows 11 |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10, 5 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |

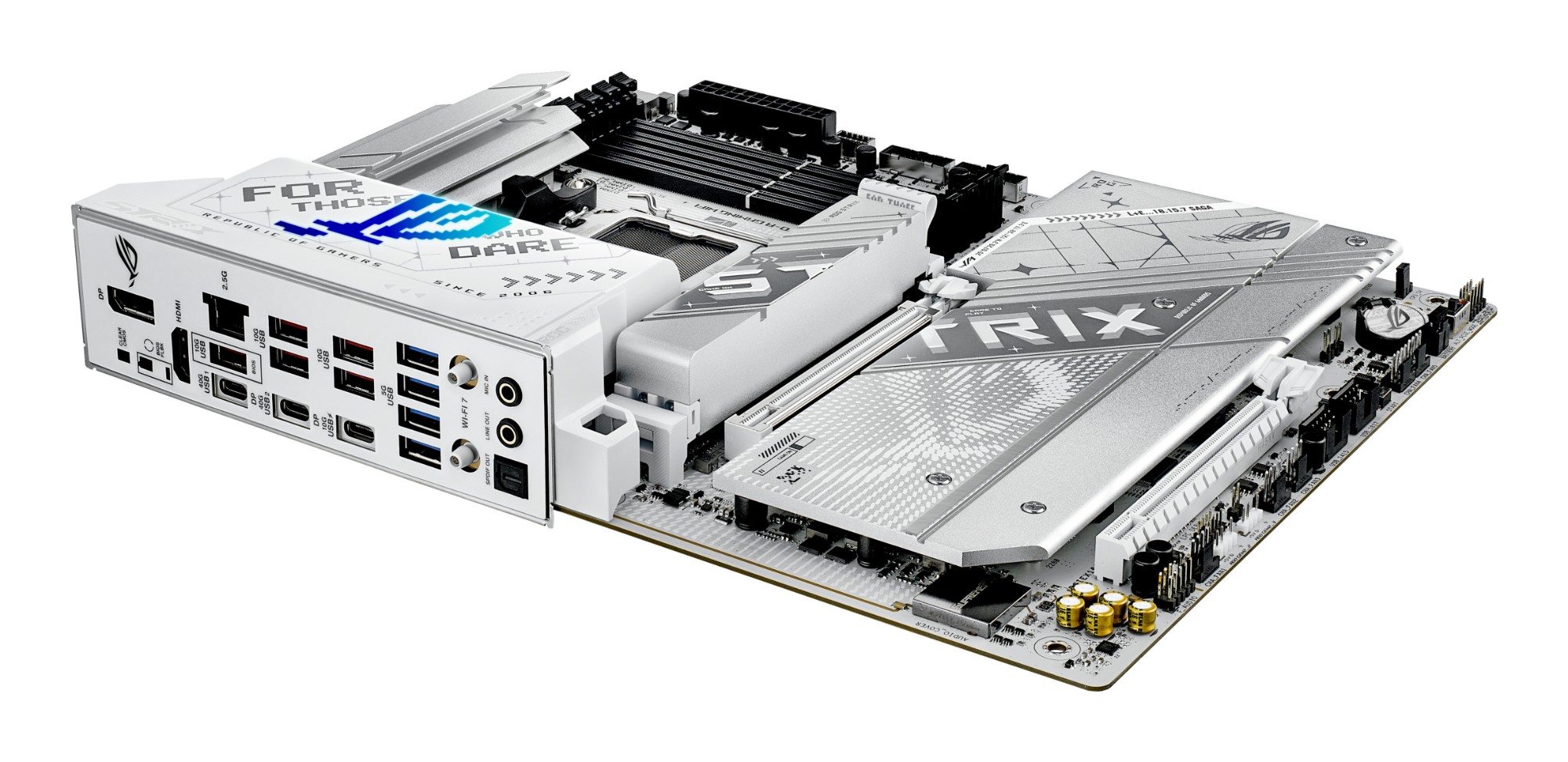

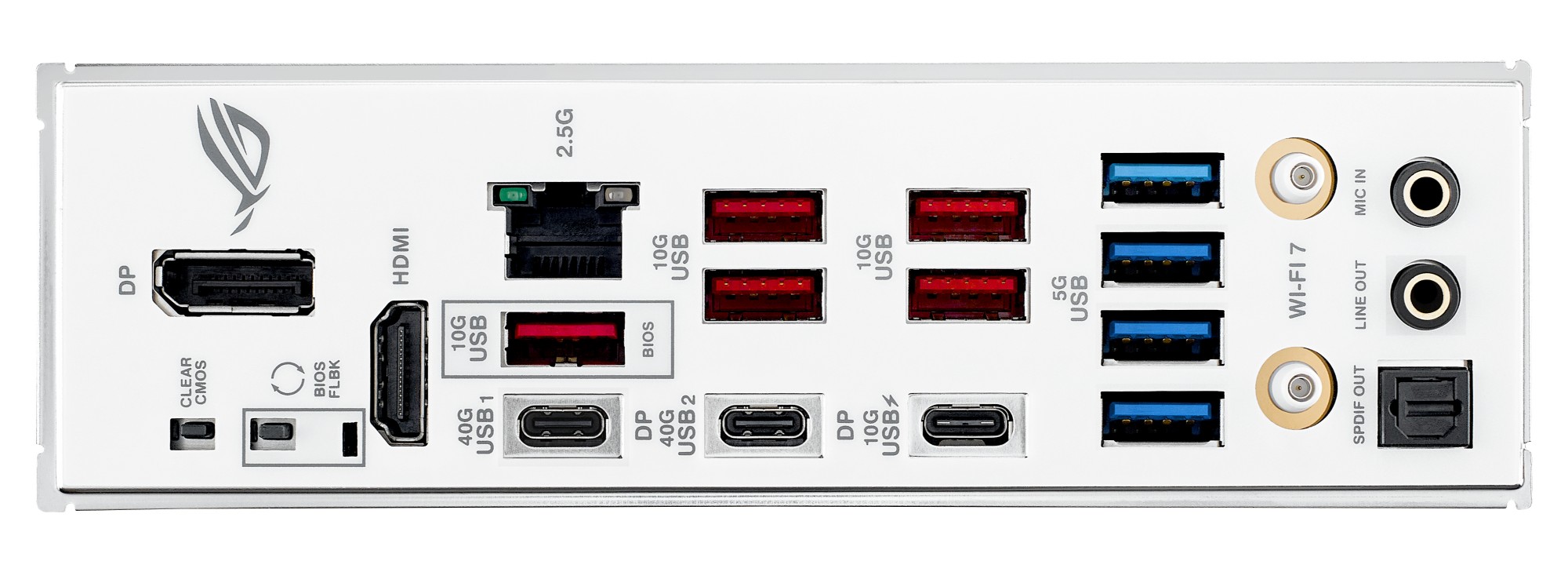

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |

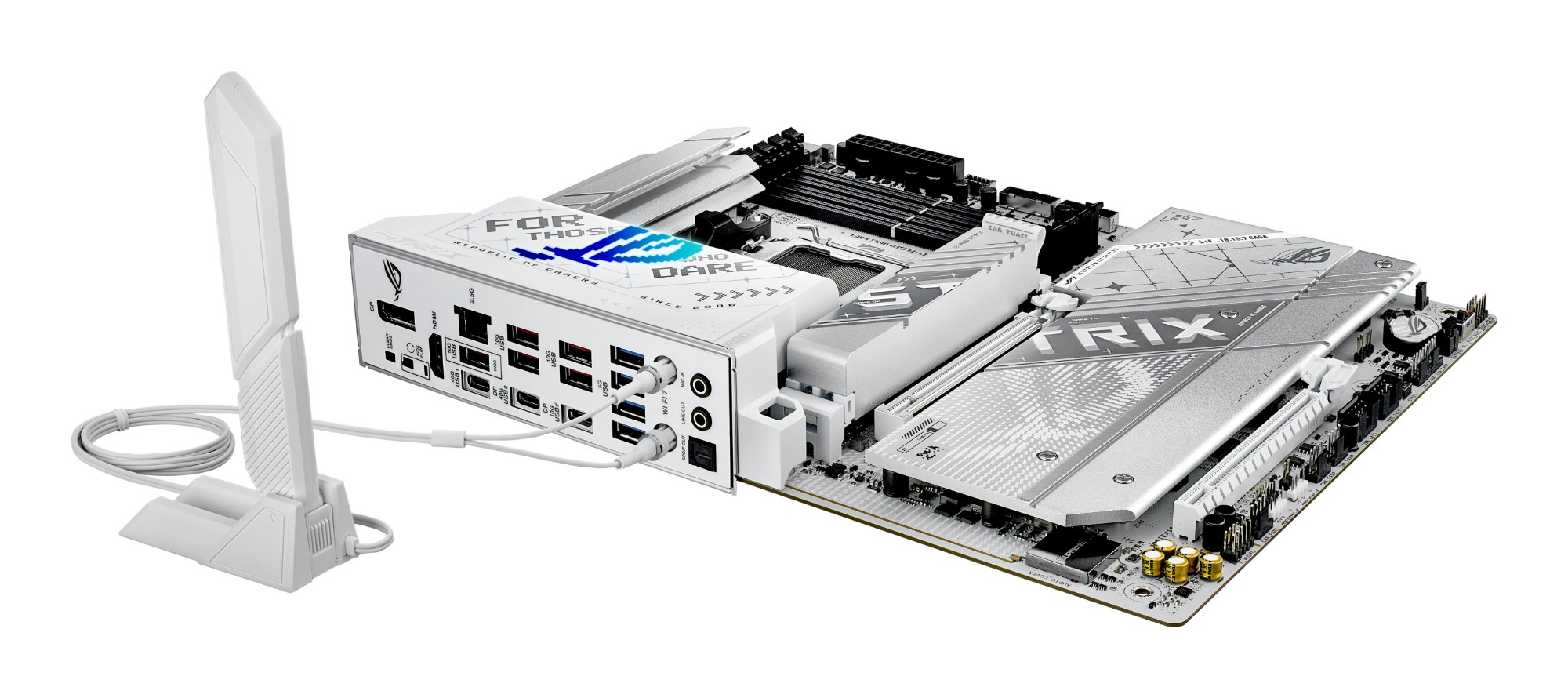

| WiFi-AP antenna jack | 1 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Component for | PC |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Supported processor sockets | Socket AM5 |
| Windows operating systems supported | Windows 11 |
| Audio chip | Realtek ALC4080 |
| Product colour | Aluminium |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.32 kg |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 50 mm |
| Weight | 1.84 kg |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.32 kg |

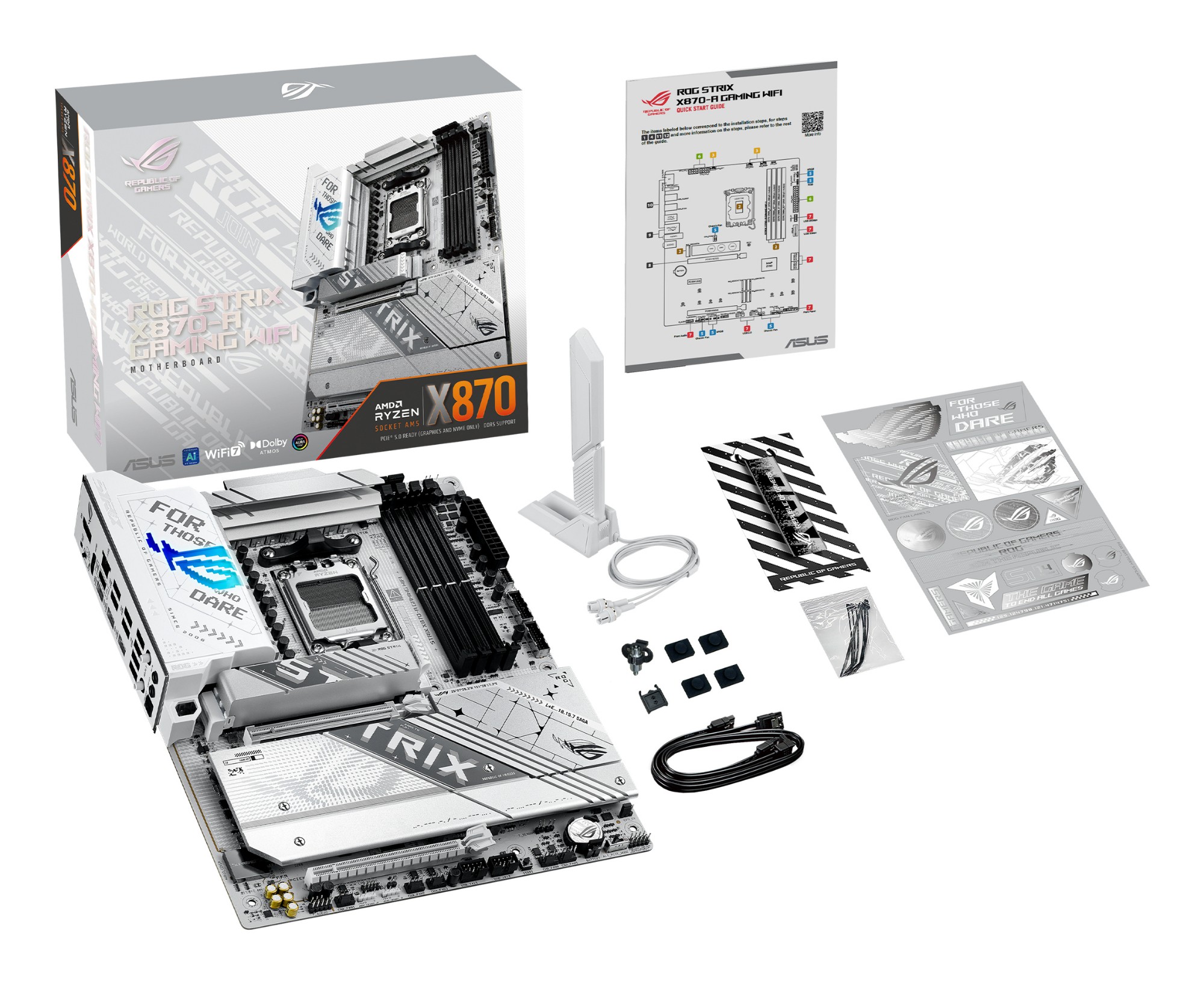

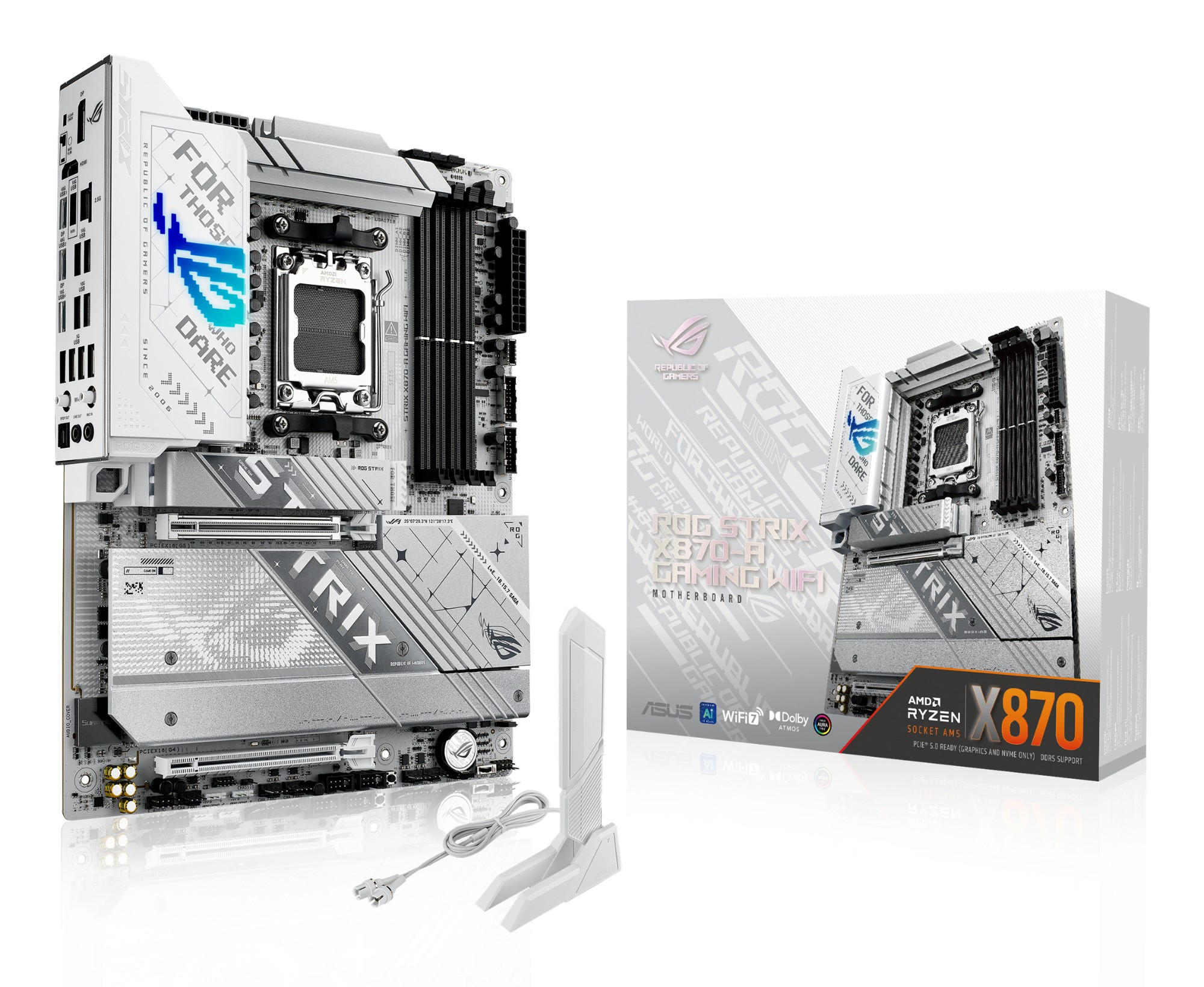

| Packaging content | |
| Cables included | SATA |
| Other features | |
| Height | 50 mm |
| mSATA ports quantity | 0 |
| Weight | 1.84 kg |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.32 kg |
