ATEN 16-Port 19” LCD CAT5e/6 KVM over IP Switch 1 local / 1 remote (Dual Rail)
- Brand: ATEN
- Category:
- SKU: KL1116VN-AXA-AU
- EAN: 4719264645297 4710469345609
16-Port 19” LCD CAT5e/6 KVM over IP Switch 1 local / 1 remote (Dual Rail)
Offer details
Description

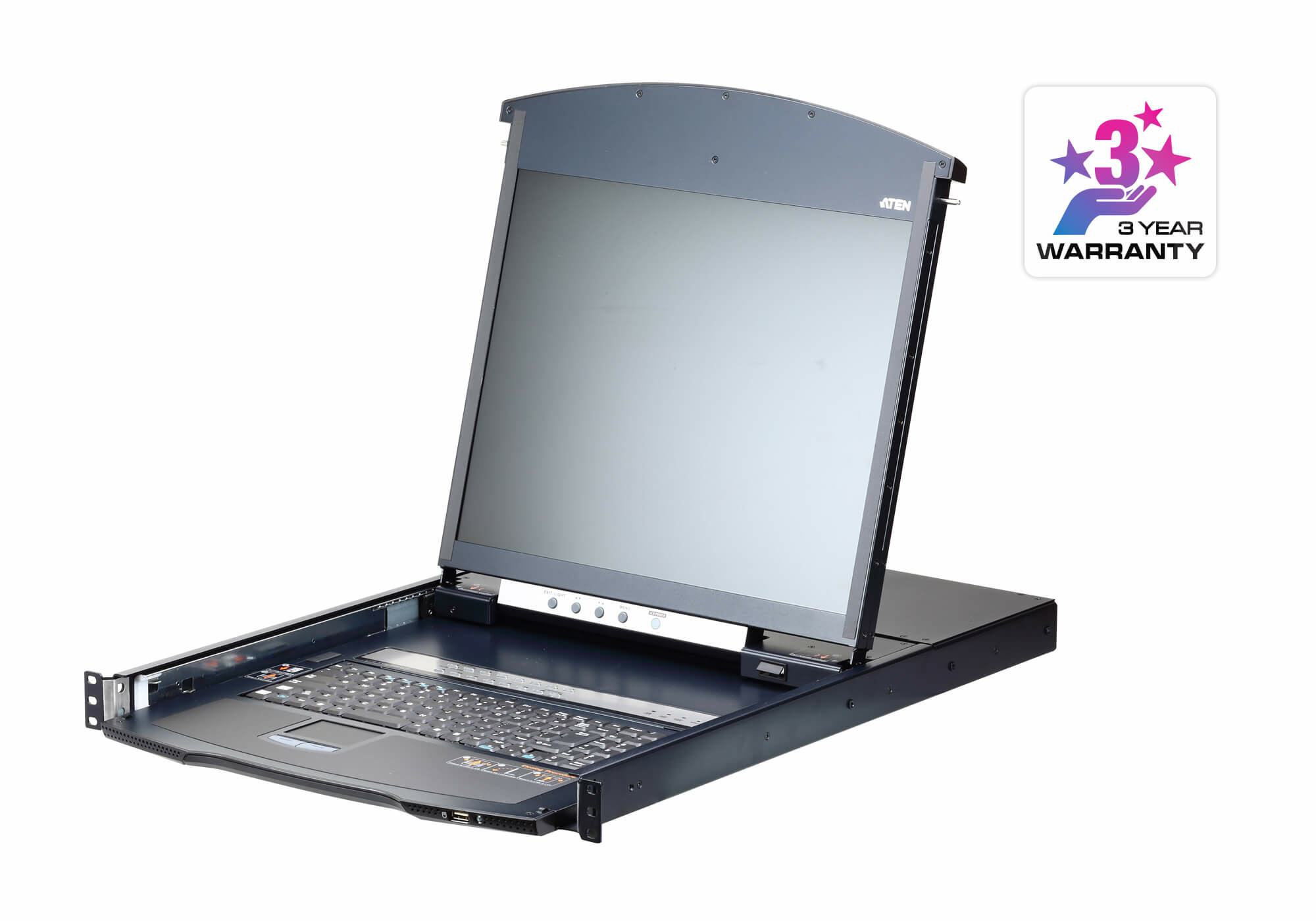

ATEN's KL1116VN 16-port Cat 5 Dual Rail LCD KVM over IP Switch features an independently retractable, dual slide 19" LED-backlit LCD monitor and keyboard with built-in touchpad.
1x KL1116VN Cat 5 Dual Rail LCD KVM over IP Switch with a Rack Mount Kit
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
1x LIN2-418K-E12G Power Cord
2x L Brackets
1x User Instructions
1x KL1116VN Cat 5 Dual Rail LCD KVM over IP Switch with a Rack Mount Kit
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
1x LIN2-418K-E12G Power Cord
2x L Brackets
1x User Instructions
Specifications
Display | |
---|---|
Display | LCD |
Display diagonal | 48.3 cm (19") |
On Screen Display (OSD) | Yes |
Technical details | |
Number of computers controlled | 16 |
LED indicators | Yes |
Rack mounting | Yes |
Rack capacity | 1U |
Operating relative humidity (H-H) | 0 - 80% |
Maximum resolution | 1920 x 1200 pixels |
Product colour | Black |
Push button | Yes |
Cabling technology | 10/100/1000Base-T(X) |
Compliance certificates | RoHS |
Ports & interfaces | |
Video port type | DVI-D/VGA |
Mouse port type | USB |
Keyboard port type | USB |
VGA (D-Sub) ports quantity | 1 |
Serial ports quantity | 2 |
Keyboard | |
Hot keys | Yes |
Keyboard layout | QWERTY |
Keyboard language | US English |
System requirements | |
Windows operating systems supported | Yes |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Power | |
Input current | 1 A |
Operational conditions | |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
Weight | 15.6 kg |
Width | 480 mm |
Height | 44 mm |
Depth | 701.2 mm |
Packaging data | |
Package width | 668 mm |
Package depth | 833 mm |
Package height | 135 mm |
Package weight | 18.6 kg |
Packaging content | |
Quick installation guide | Yes |
Manual | Yes |
Rack mount kit | Yes |
Logistics data | |
Master (outer) case width | 668 mm |
Master (outer) case length | 833 mm |
Master (outer) case height | 135 mm |
Master (outer) case gross weight | 18.6 kg |
Products per master (outer) case | 1 pc(s) |
Master (outer) case net weight | 15.6 kg |
