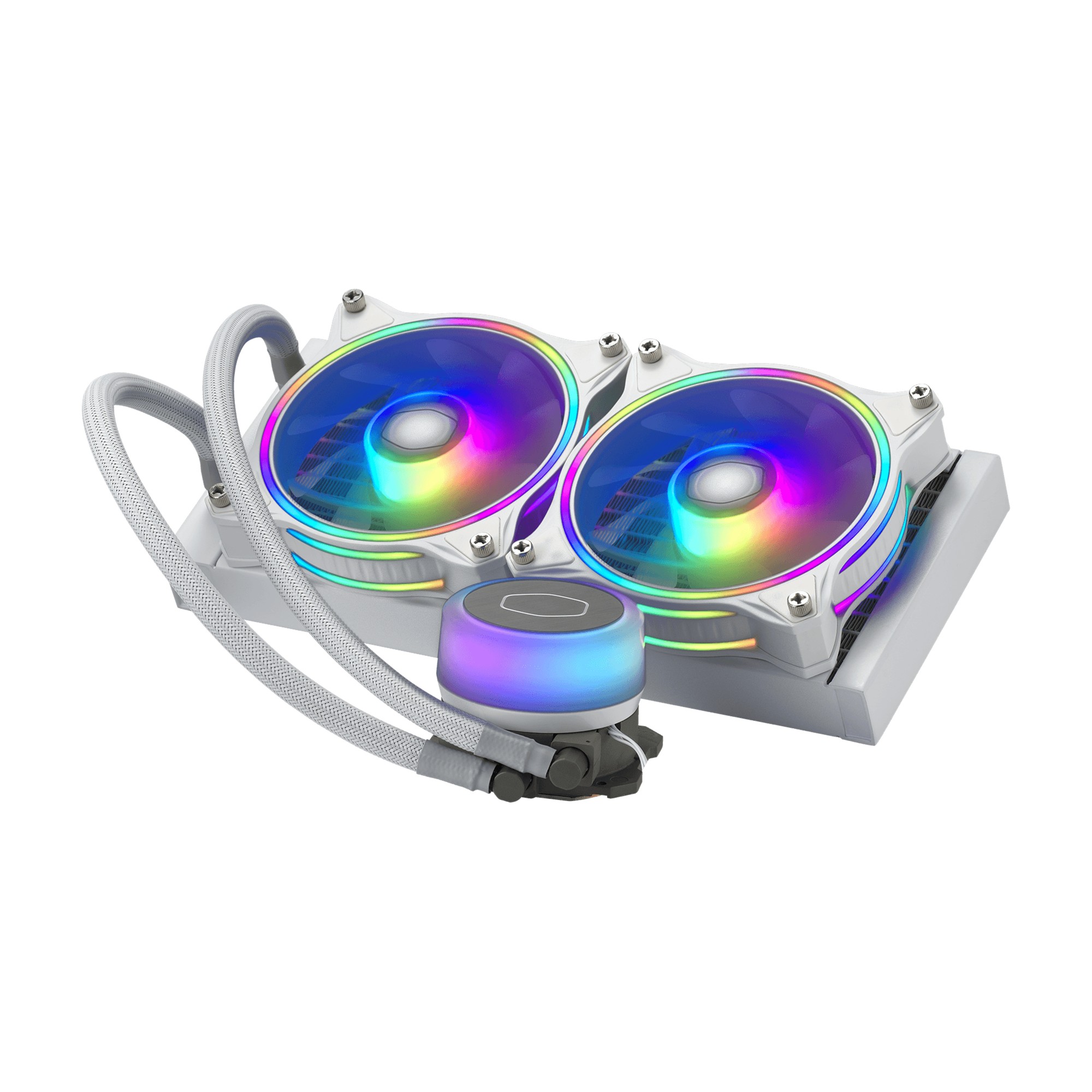

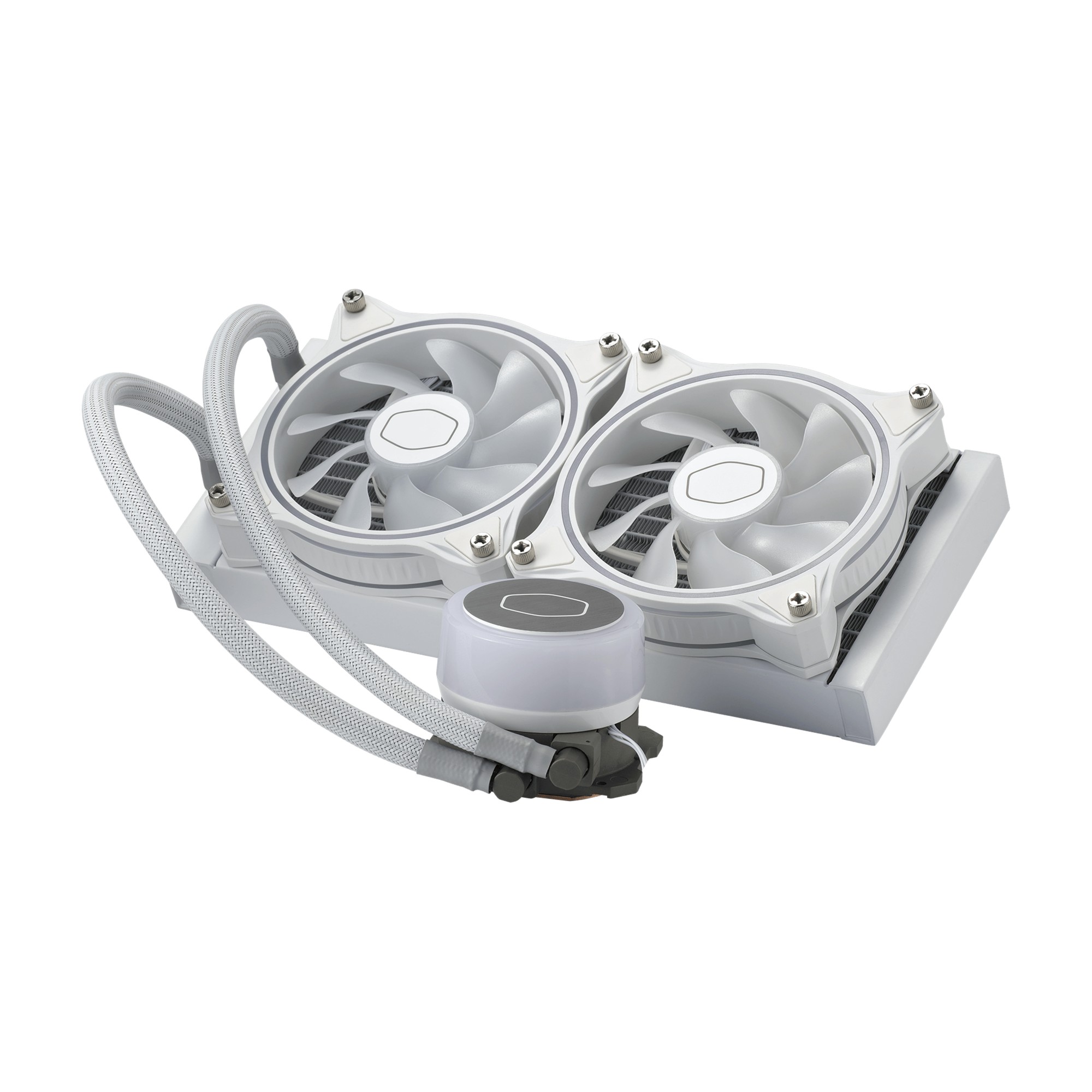

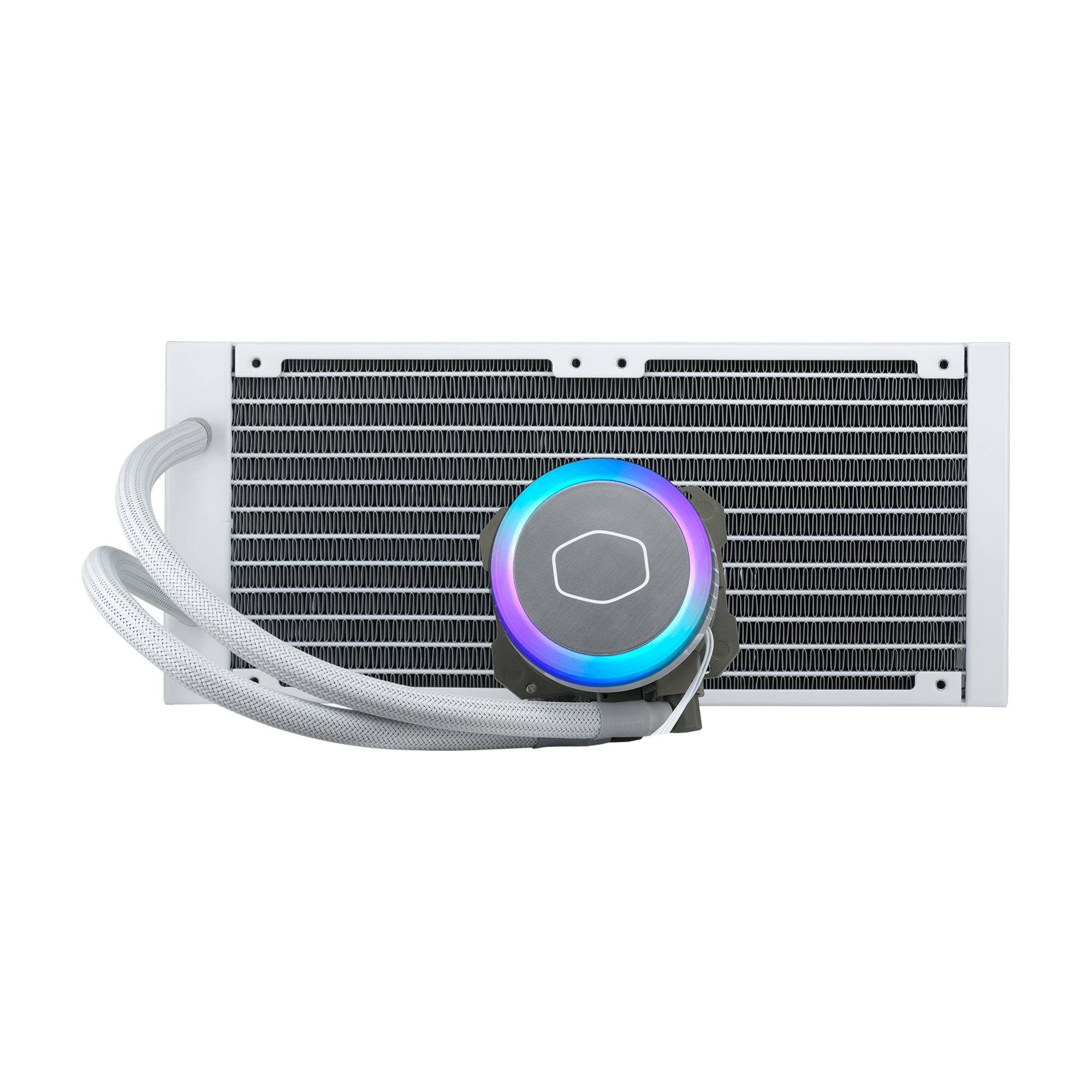

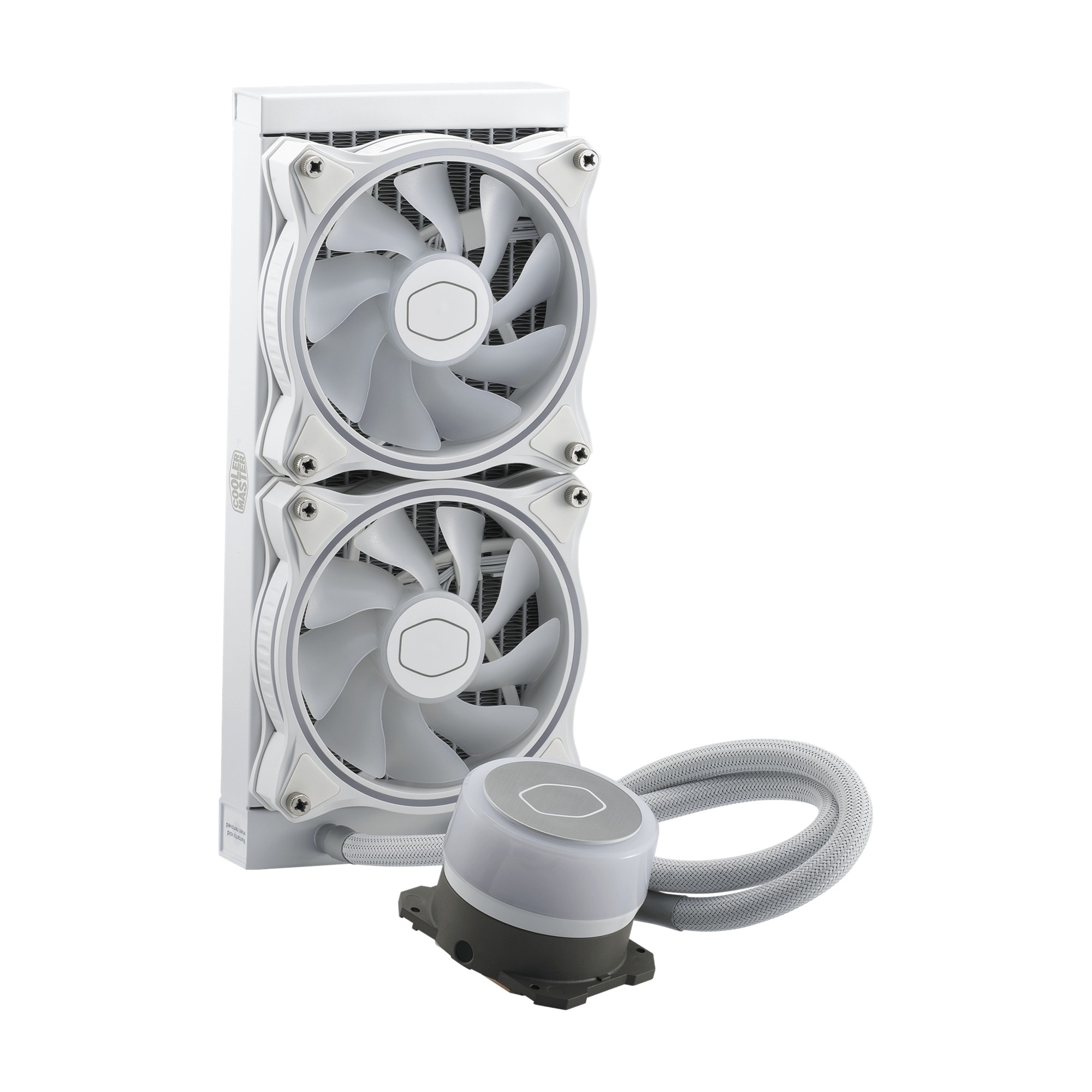

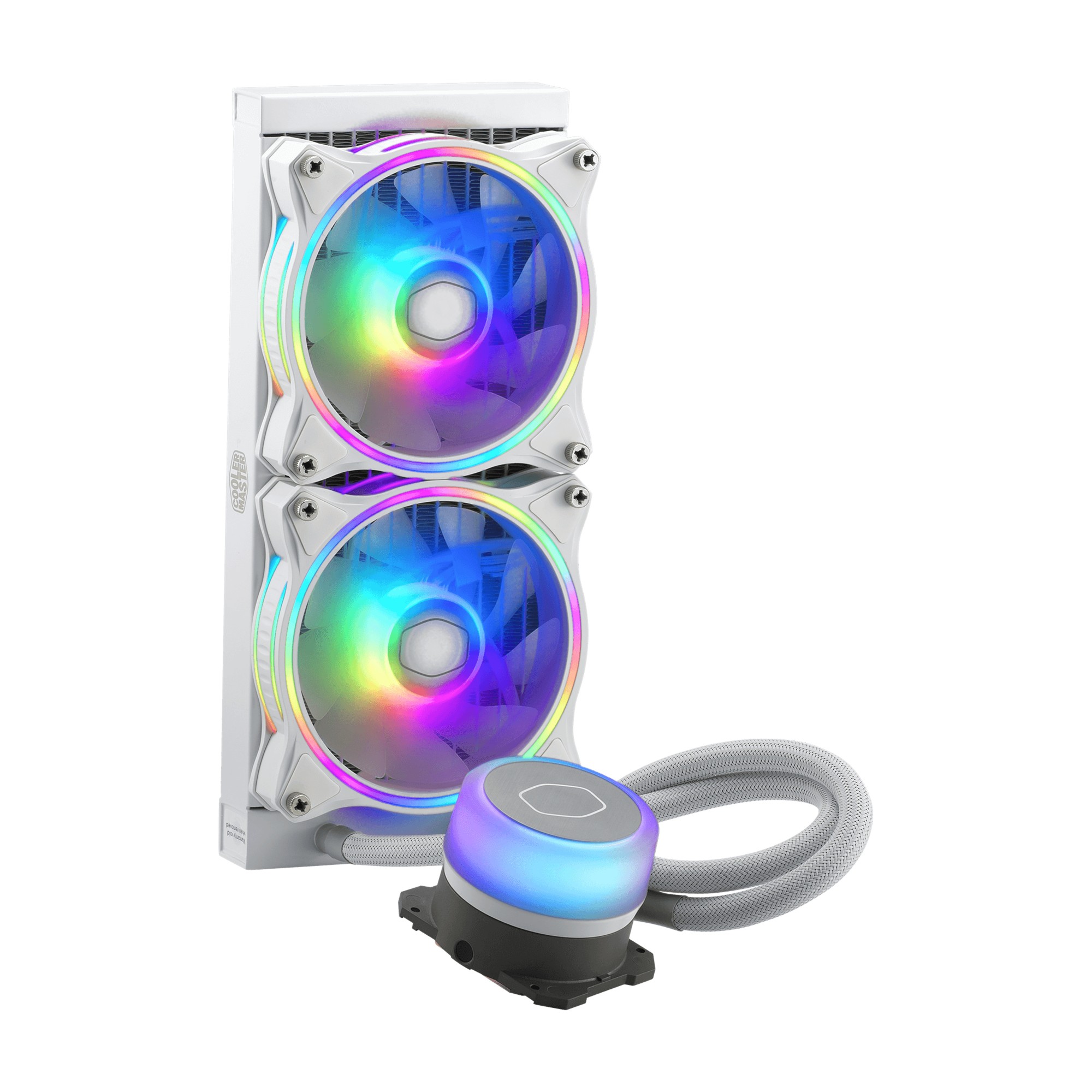

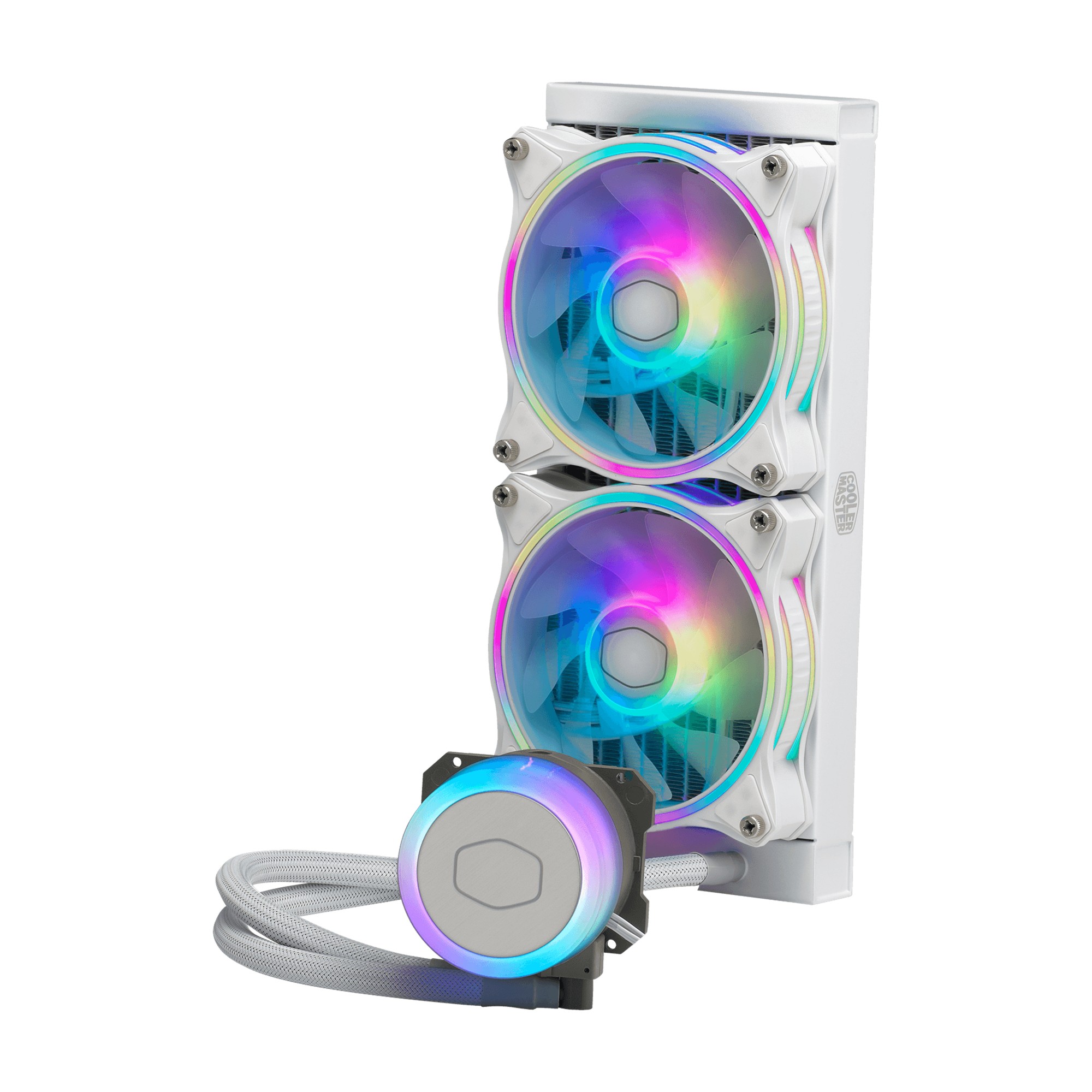

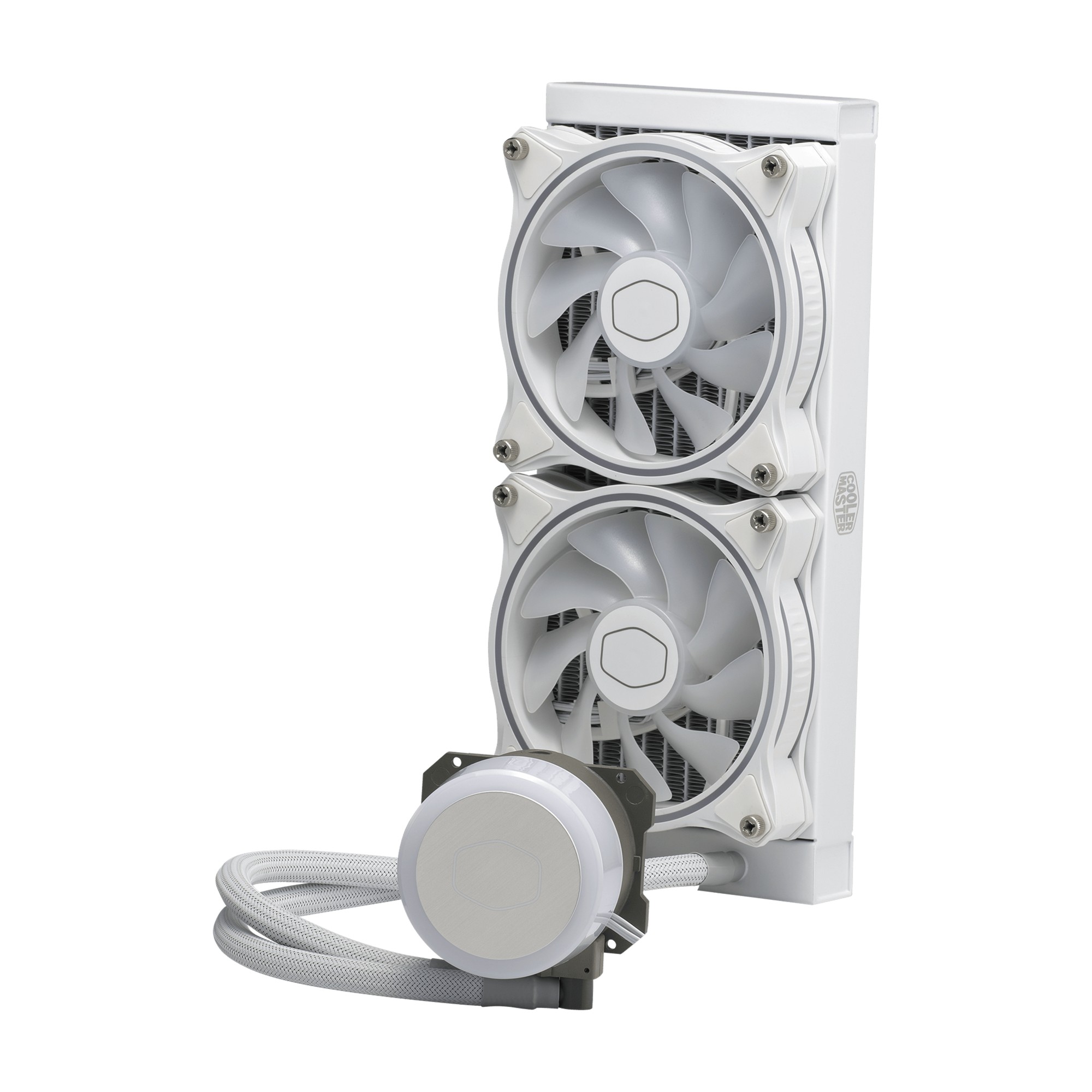

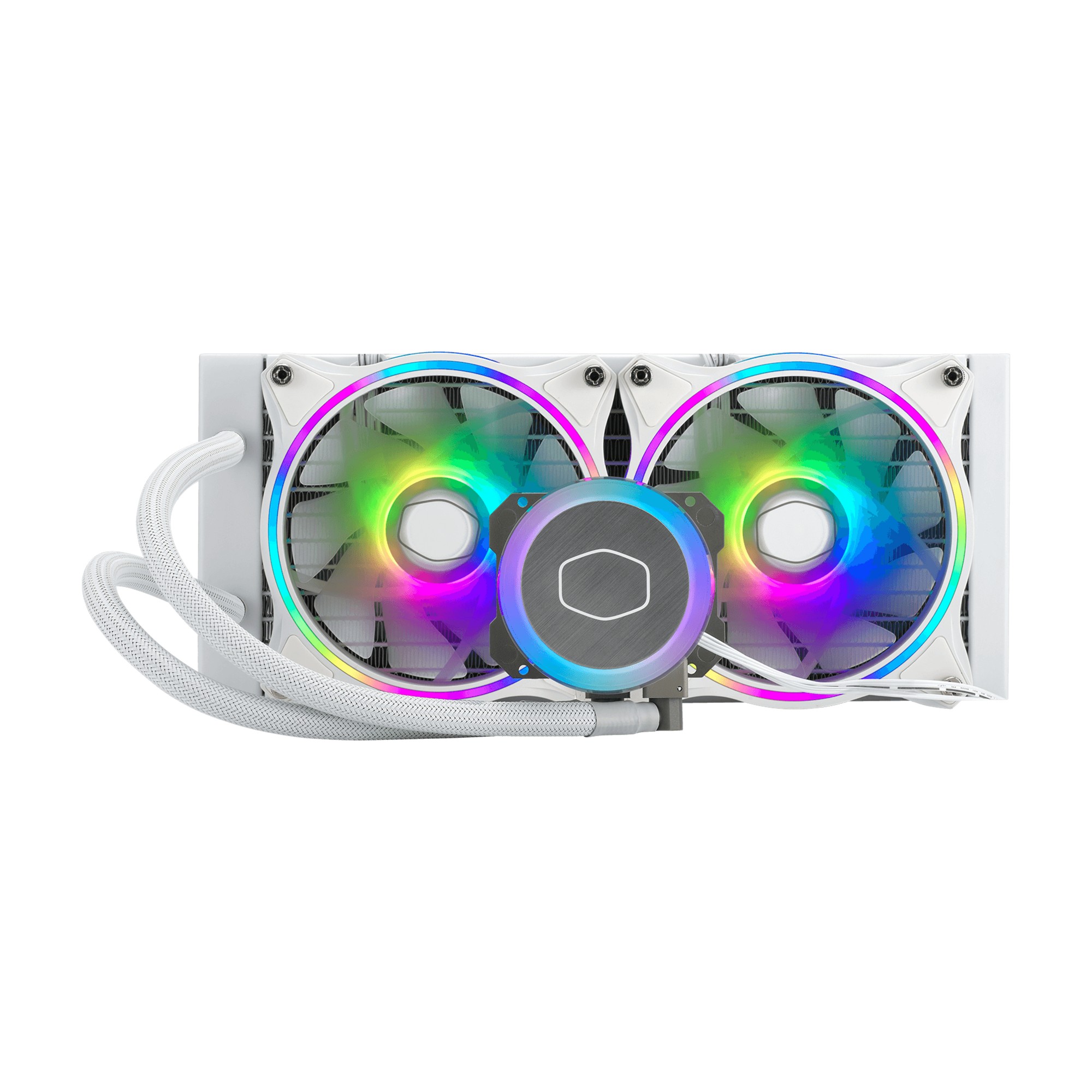

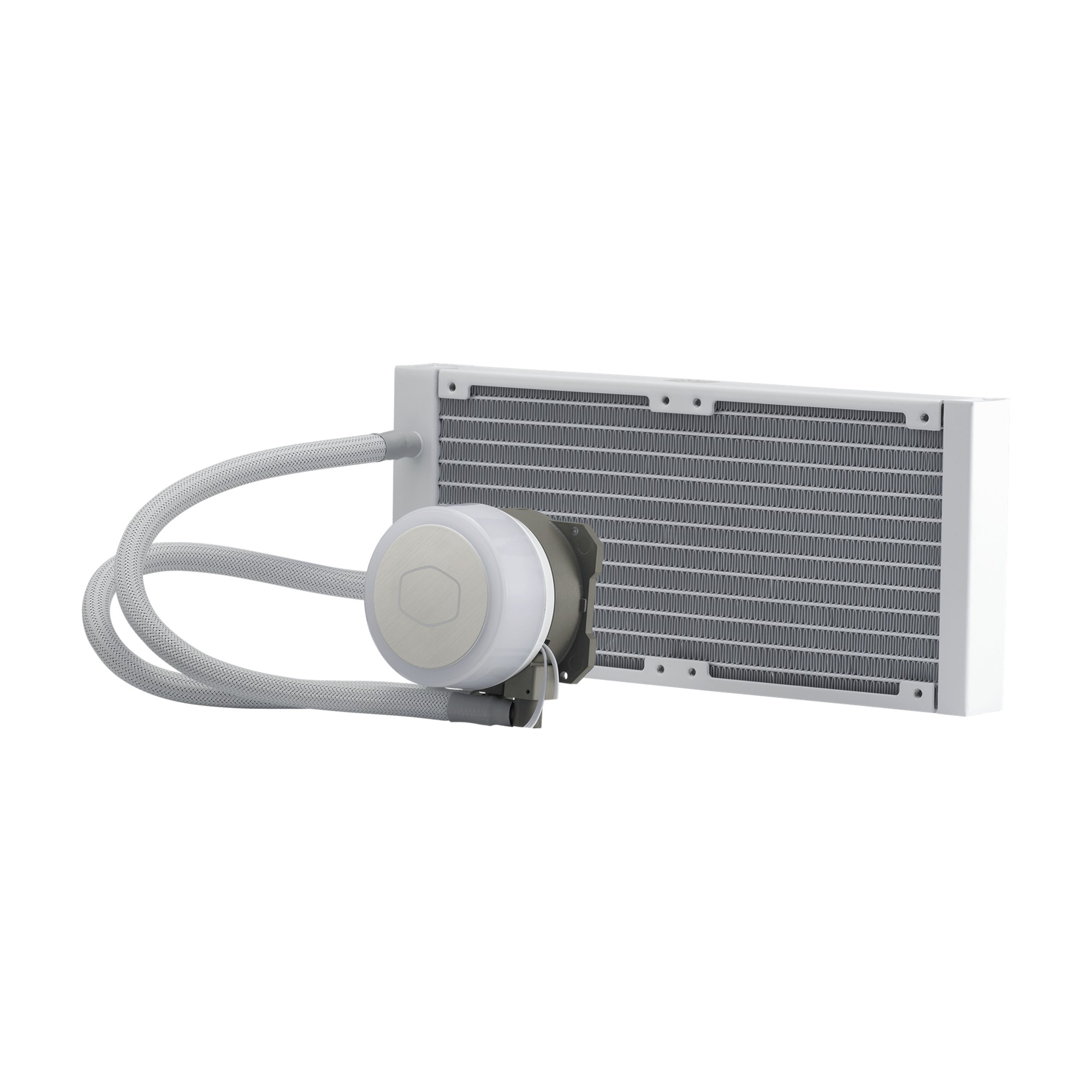

Cooler Master MasterLiquid ML240 Illusion White Edition Processor All-in-one liquid cooler
- Brand: Cooler Master
- Category:
- SKU: MLX-D24M-A18PW-R1
- EAN: 4719512117415 0884102089725
120 x 120 x 25 mm, 2 fans, 650-1800 RPM, 47.2 cfm, 1.60 mmH₂O, 4-pin, PWM, RGB, White
Offer details
Retail Prices
Merchant | Product | Condition | Updated | Price |
---|---|---|---|---|
Amazon | New | $111.00 | ||
Amazon | New | $109.00 |
Related Products
Description
See It To Believe It
The MasterLiquid ML-Illusion series redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting features are more than even visual enthusiasts can handle. The Illusion is not only elegant, but extremely capable as well, featuring the 3rd generation Dual Chamber Pump for excellent cooling performance.

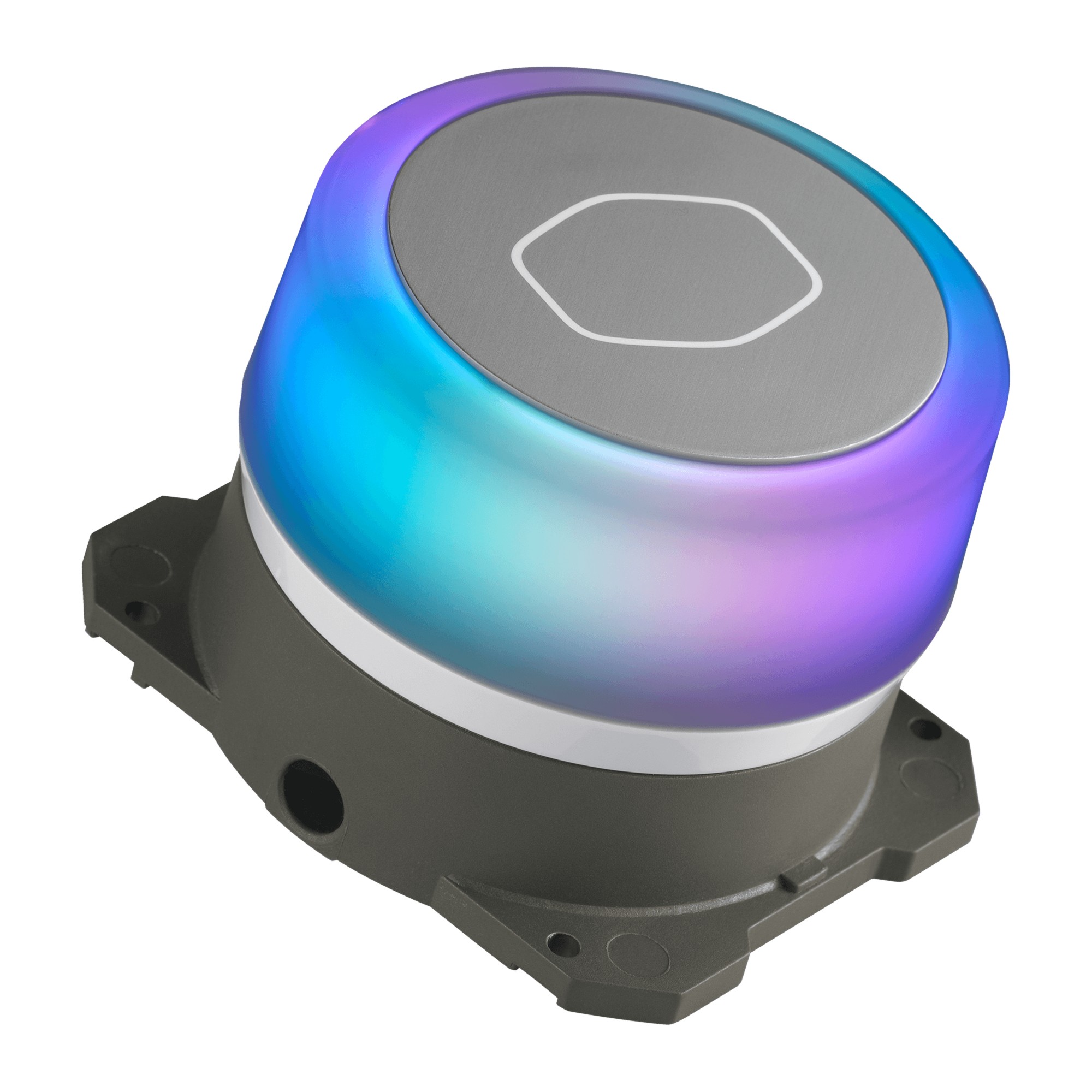

Translucent Dome
Stunning lighting visuals with translucent water chamber dome and rotatable logo. Compatible with software customization
New 3rd Gen Dual Chamber Pump
Experience a quieter cooling performance with an improved design on the internal impeller and housing to enhance the cooling performance and efficiency while lowering the noise level.
Expanded Dissipation Surface Area
Widened radiator water channels for increased cooling surface area.
MasterFan MF120 Halo
Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs Fully Customizable with MasterPlus+ software to ensure the most vibrant display of color
New Addressable GEN 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more – all from an intuitive, convenient interface
Specifications
Performance | |
---|---|
Suitable location | Processor |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Type | All-in-one liquid cooler |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
Maximum airflow | 47.2 cfm |
Maximum air pressure | 1.6 mmH2O |
Number of fans | 2 fan(s) |
Pump connector | 3-pin |
Fan noise level (min) | 6 dB |
Fan noise level (max) | 30 dB |
Pump noise level | 10 dB |
Fan speed (min) | 650 RPM |
Fan speed (max) | 1800 RPM |
Pump's mean time to failure (MTTF) | 70000 h |
Fan's mean time to failure (MTTF) | 160000 h |
Design | |
Fan connector | 4-pin |
Number of fans | 2 fan(s) |
Illumination colour | Blue, Green, Red |
Product colour | White |
Illumination LED | Yes |
Radiator material | Aluminium |
Ports & interfaces | |
Fan connector | 4-pin |
Pump connector | 3-pin |
Power | |
Pump power consumption | 2.36 W |
Pump voltage | 12 V |
Fan voltage | 12 V |
Fan current | 0.25 A |
Weight & dimensions | |
Weight | 1.34 kg |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Package width | 345 mm |
Package depth | 585 mm |
Package height | 270 mm |
Package weight | 1.98 kg |
Radiator width | 27.7 cm |
Radiator depth | 7.6 cm |
Radiator height | 2.72 cm |
Pump width | 8.14 cm |
Pump depth | 7.6 cm |
Pump height | 5.78 cm |
Technical details | |
Fan connector | 4-pin |
Illumination LED | Yes |
Packaging content | |
RGB controller included | Yes |
Other features | |
Country of origin | China |
Pump connector | 3-pin |
Harmonized System (HS) code | 84733080 |
