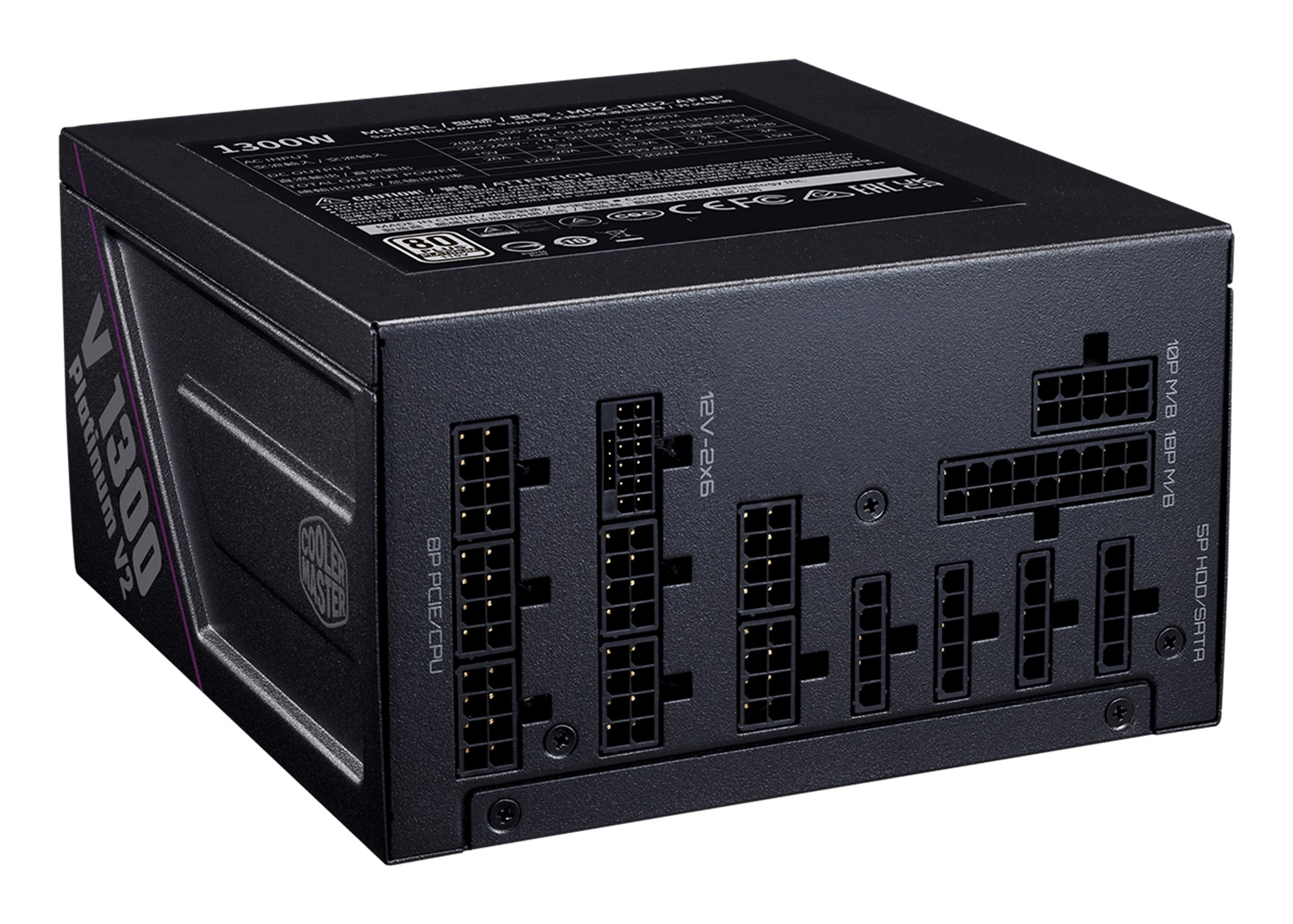

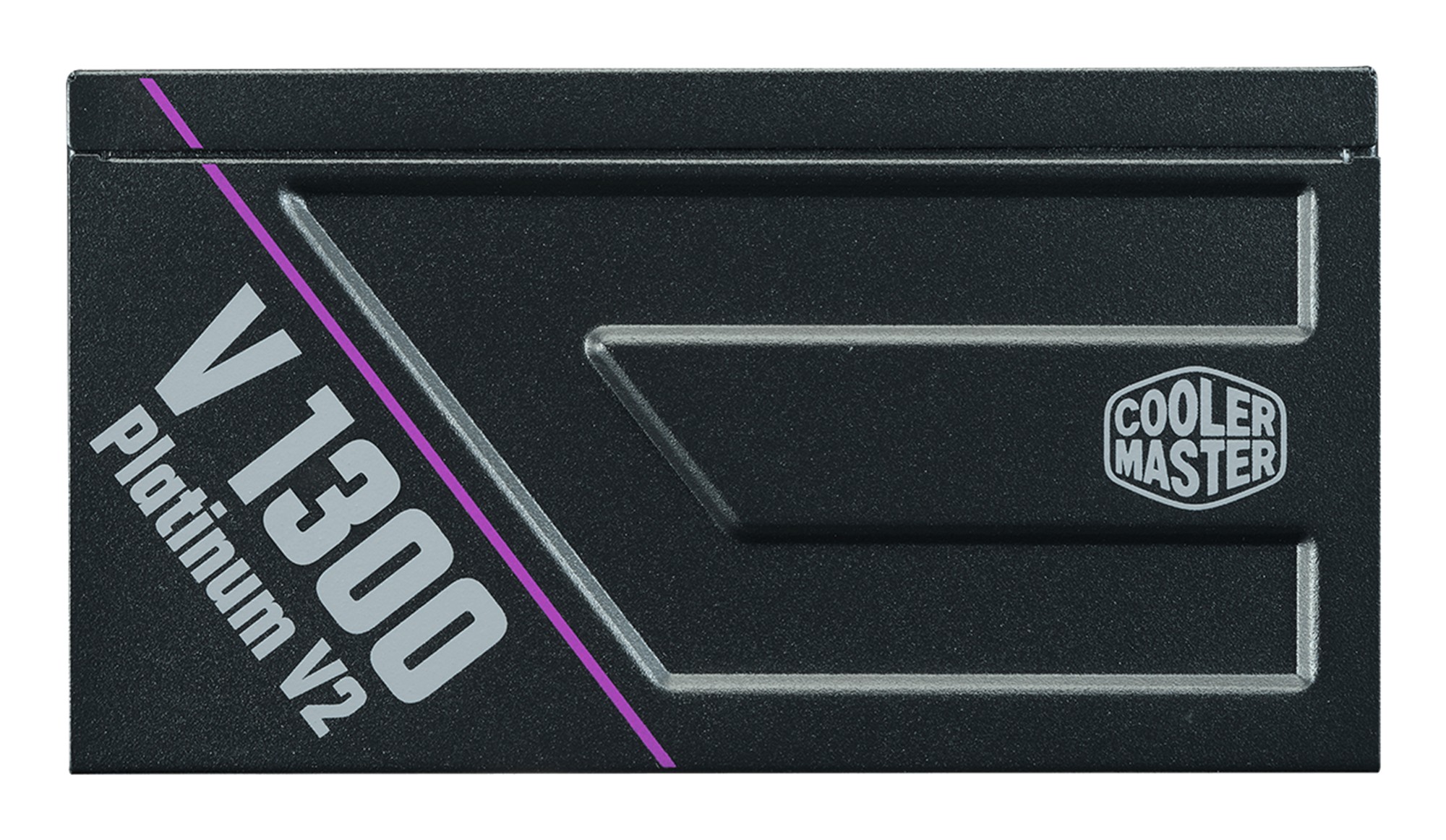

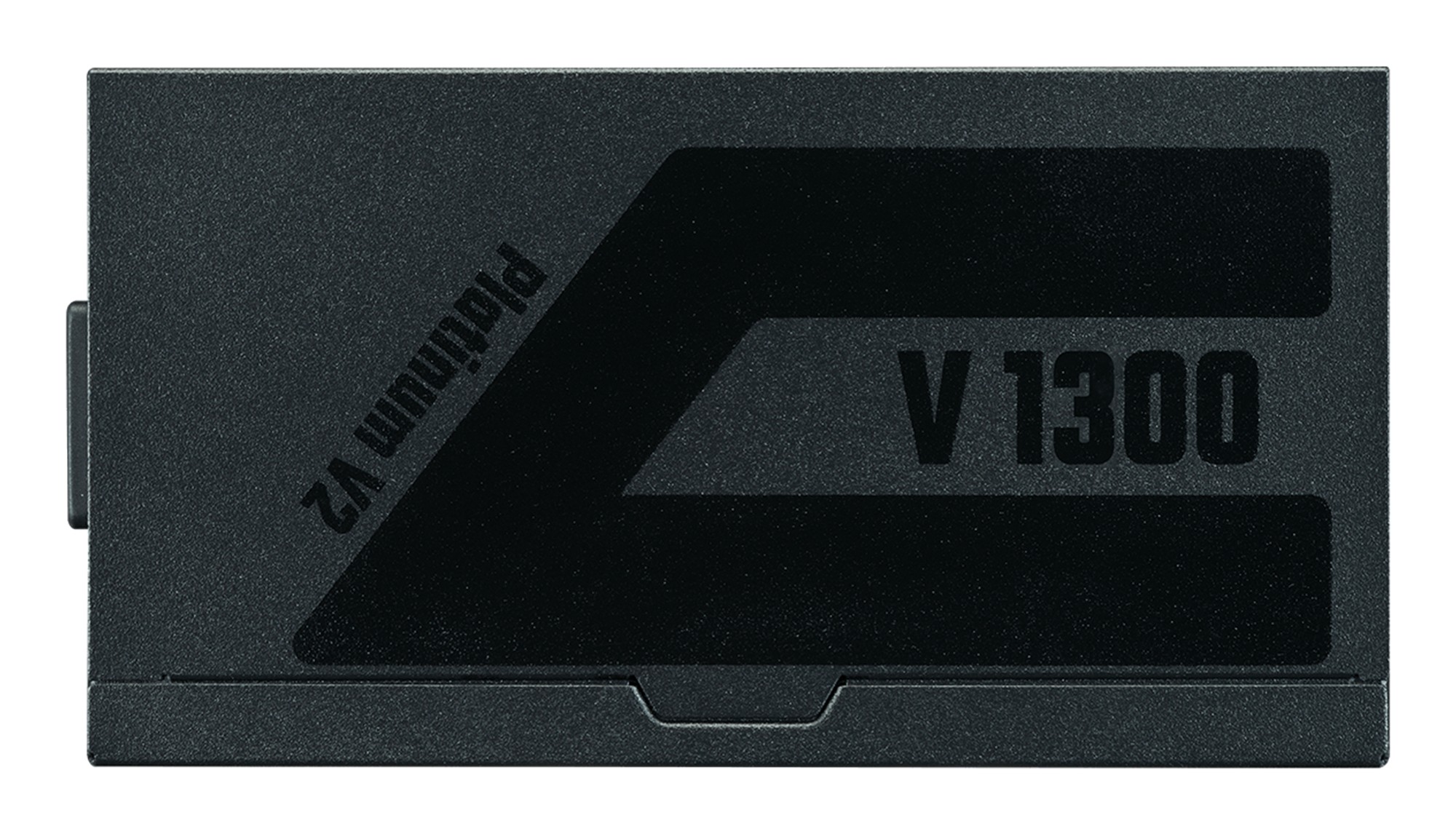

Cooler Master V Platinum 1300 V2 power supply unit 1300 W 24-pin ATX ATX Black
- Brand: Cooler Master
- Category:
- SKU: MPZ-D002-AFAP-BAU
- EAN: 4719512140833
1300 W, ATX 12V Ver. 3.1, APFC, 135 mm, LDB, ATX 24 Pin, EPS 4+4 Pin, EPS 8 Pin, SATA, Peripheral 4 Pin, PCI-e 6+2 Pin, 12V-2x6, 100-240 V, 50/60 Hz, 3.66 kg
Offer details
Description
Quietly Supreme
V Platinum V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency, backed by a 12-year warranty.

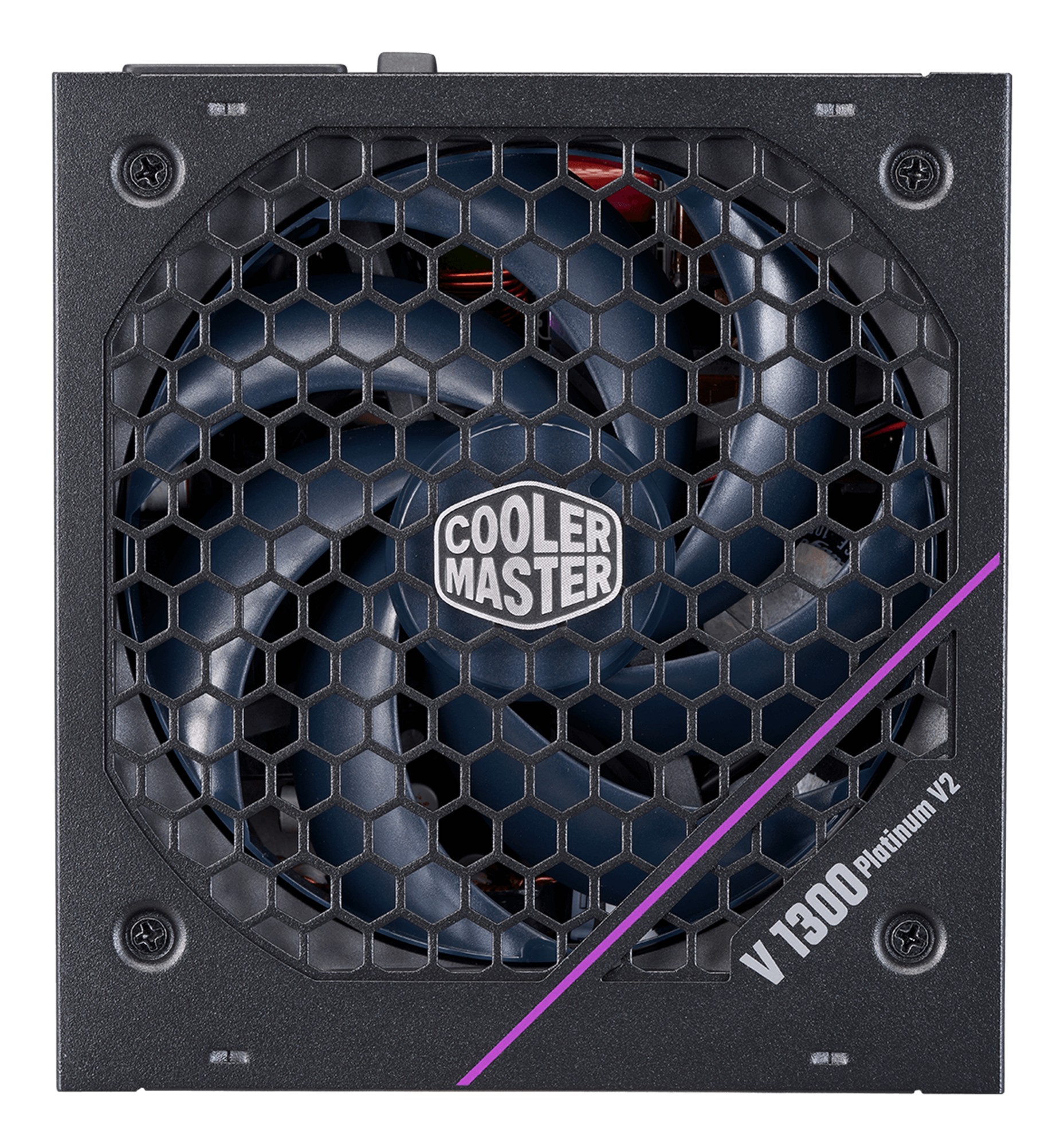

Mobius fan enhances thermal performance and a longer lifespan
An ultra-quiet Mobius fan featuring high-performance oil reflow, an innovative ring blade design, and accelerated pressure air vents provides improved noise levels and advanced thermal performance.
Mobius fan featuring a Ring Blade Design (RBD) for advanced heat dissipation
An angled inner frame rim with chamfered side vents boosts airflow draw, maximizing force induced air pressure and diminishing dead air.
Silent fan performance with a zero speed mode
A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM.
*All performance stats confirmed in 25°C ambient temperature testing.
Advanced heat dissipation
Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.
CERTIFIED EFFICIENCY
An interleaved PFC decreases power loss and improves efficiency by minimizing current, reducing interference, and reducing output capacitor ripple current.

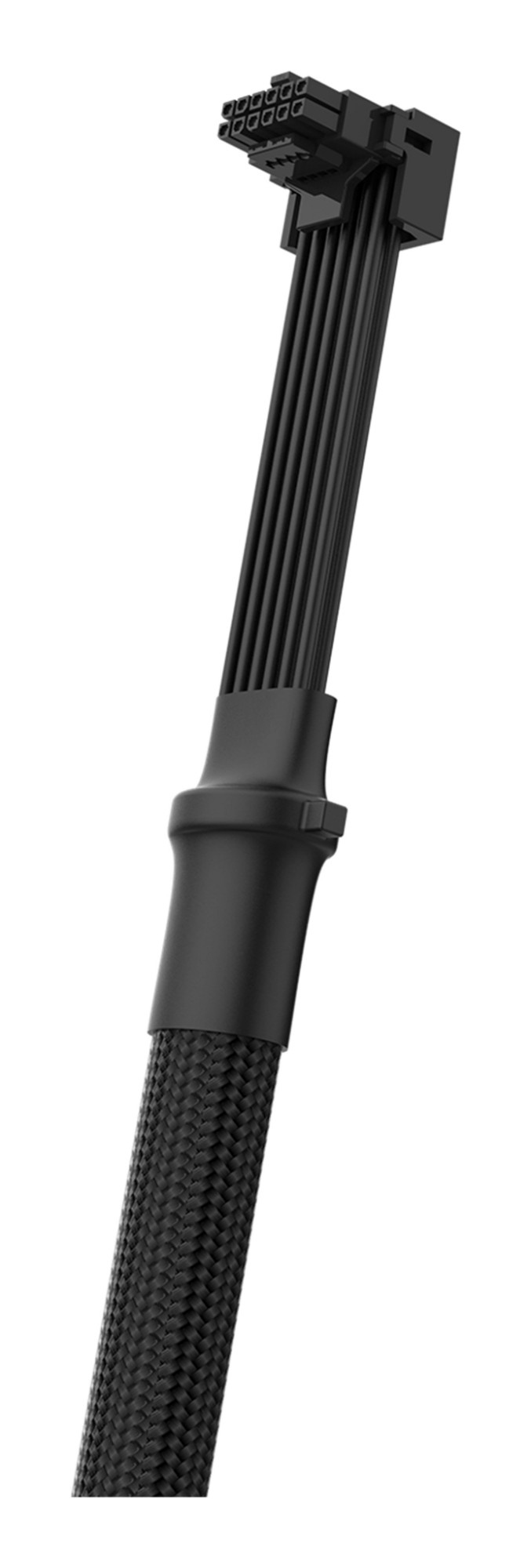

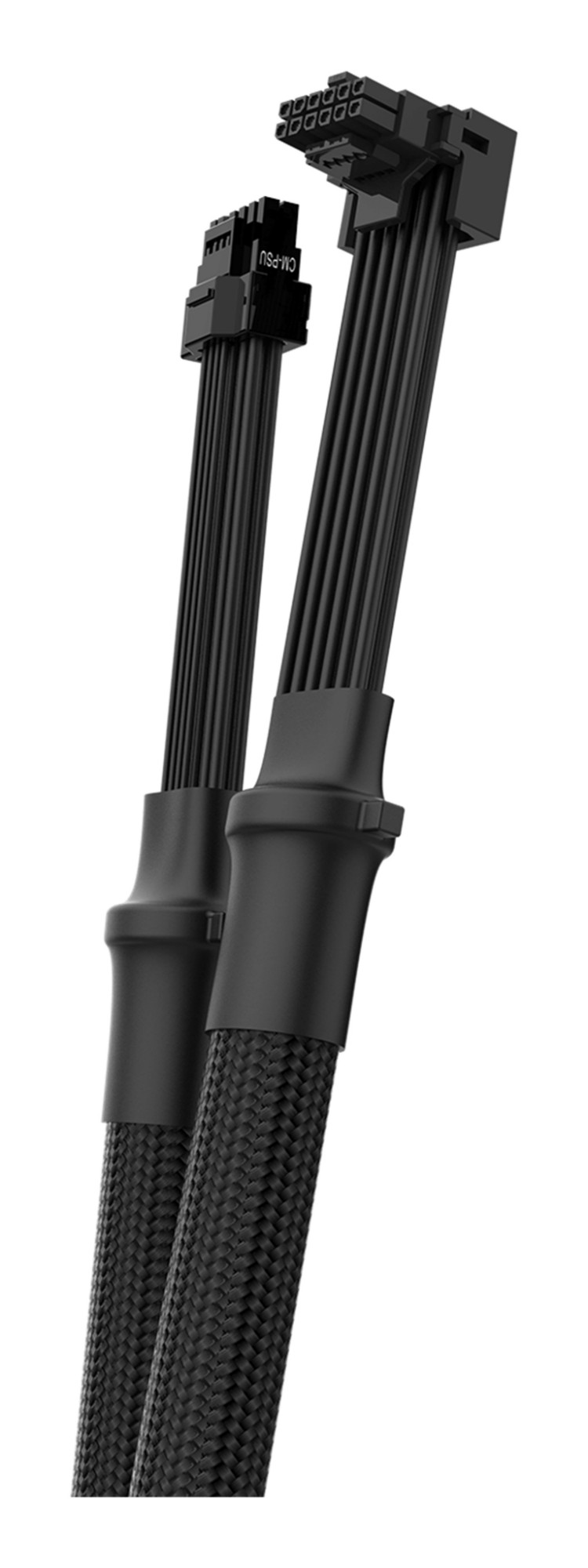

ATX 3.1 support & a durable 90° 12V-2x6 cable
Includes ATX 3.1 support and a 90° 12V-2x6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.

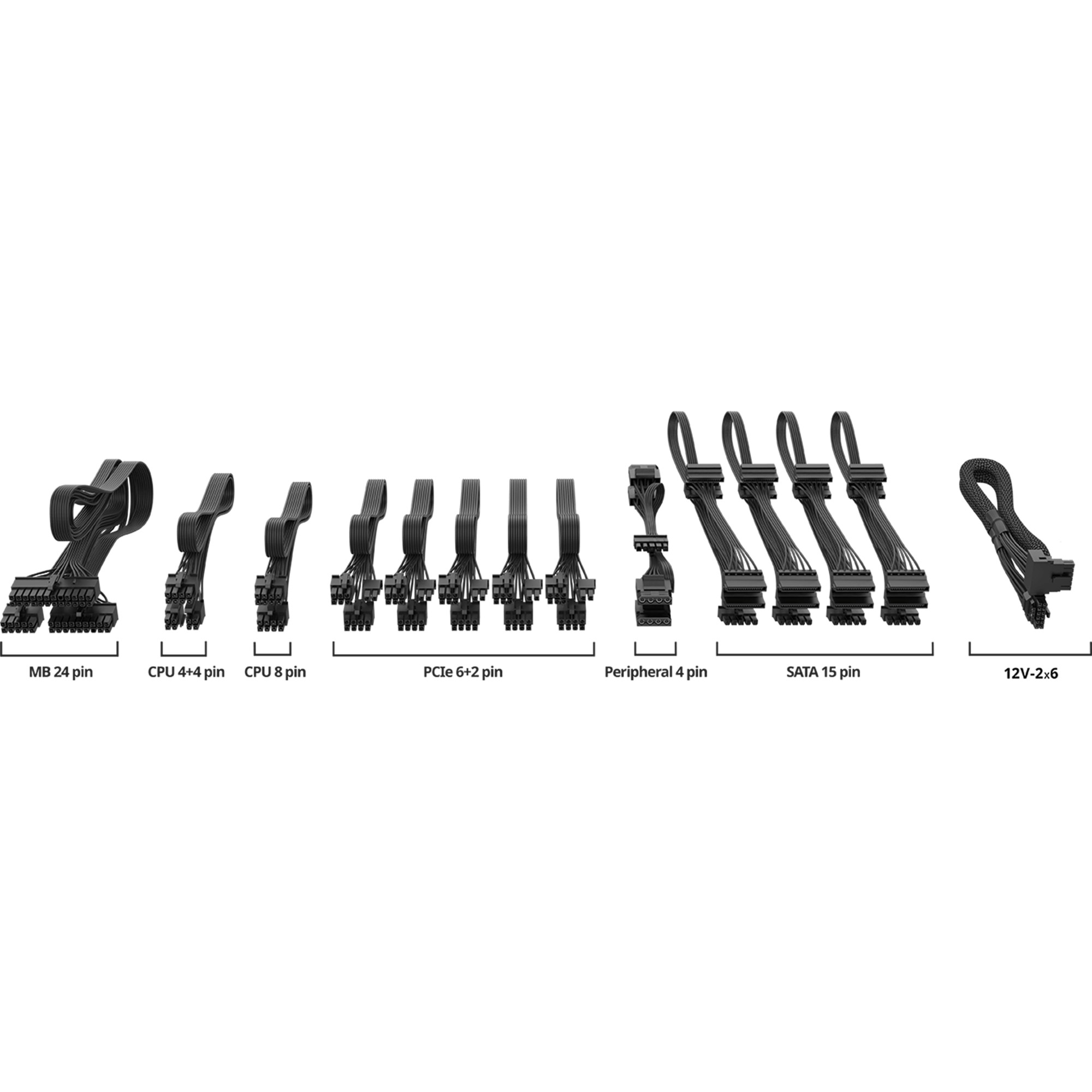

Fully modular cabling
A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.
V Platinum V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency, backed by a 12-year warranty.
Mobius fan enhances thermal performance and a longer lifespan
An ultra-quiet Mobius fan featuring high-performance oil reflow, an innovative ring blade design, and accelerated pressure air vents provides improved noise levels and advanced thermal performance.
Mobius fan featuring a Ring Blade Design (RBD) for advanced heat dissipation
An angled inner frame rim with chamfered side vents boosts airflow draw, maximizing force induced air pressure and diminishing dead air.
Silent fan performance with a zero speed mode
A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM.
*All performance stats confirmed in 25°C ambient temperature testing.
Advanced heat dissipation
Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.
CERTIFIED EFFICIENCY
An interleaved PFC decreases power loss and improves efficiency by minimizing current, reducing interference, and reducing output capacitor ripple current.
ATX 3.1 support & a durable 90° 12V-2x6 cable
Includes ATX 3.1 support and a 90° 12V-2x6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.
Fully modular cabling
A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.
Specifications
Cooling | |
---|---|
Fan diameter | 13.5 cm |
Number of fans | 1 fan(s) |
Fan speed | 0 - 2400 RPM |
Fan location | Top |
Cooling type | Active |
Performance | |

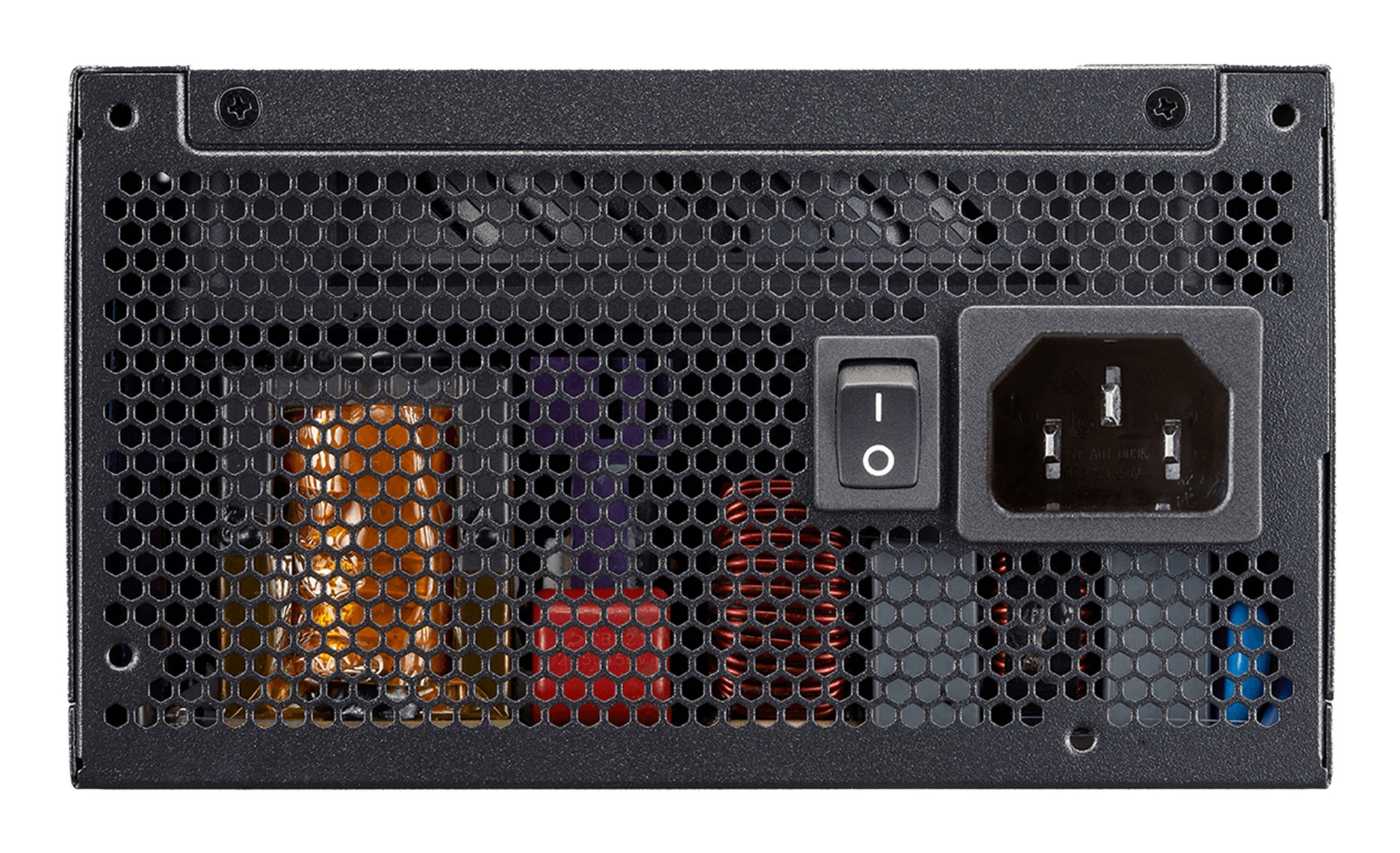

On/off switch | Yes |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Platinum |
Purpose | PC |
ATX version | 3.1 |
Certification | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC |
Bearing technology | LDB |
Mean time between failures (MTBF) | 100000 h |
Design | |
80 PLUS certification | 80 PLUS Platinum |
Certification | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC |
Product colour | Black |
Fan diameter | 13.5 cm |
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan speed | 0 - 2400 RPM |
Fan location | Top |
Cooling type | Active |
Power | |
Total power | 1300 W |
Power Good signal delay range | 100 - 150 ms |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 15 - 7 A |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 1299.6 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 108.3 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Power protection features | Over current, Over power, Over voltage, Overheating, Surge protection, Under voltage |
Hold time | 16 ms |
Efficiency | 92% |

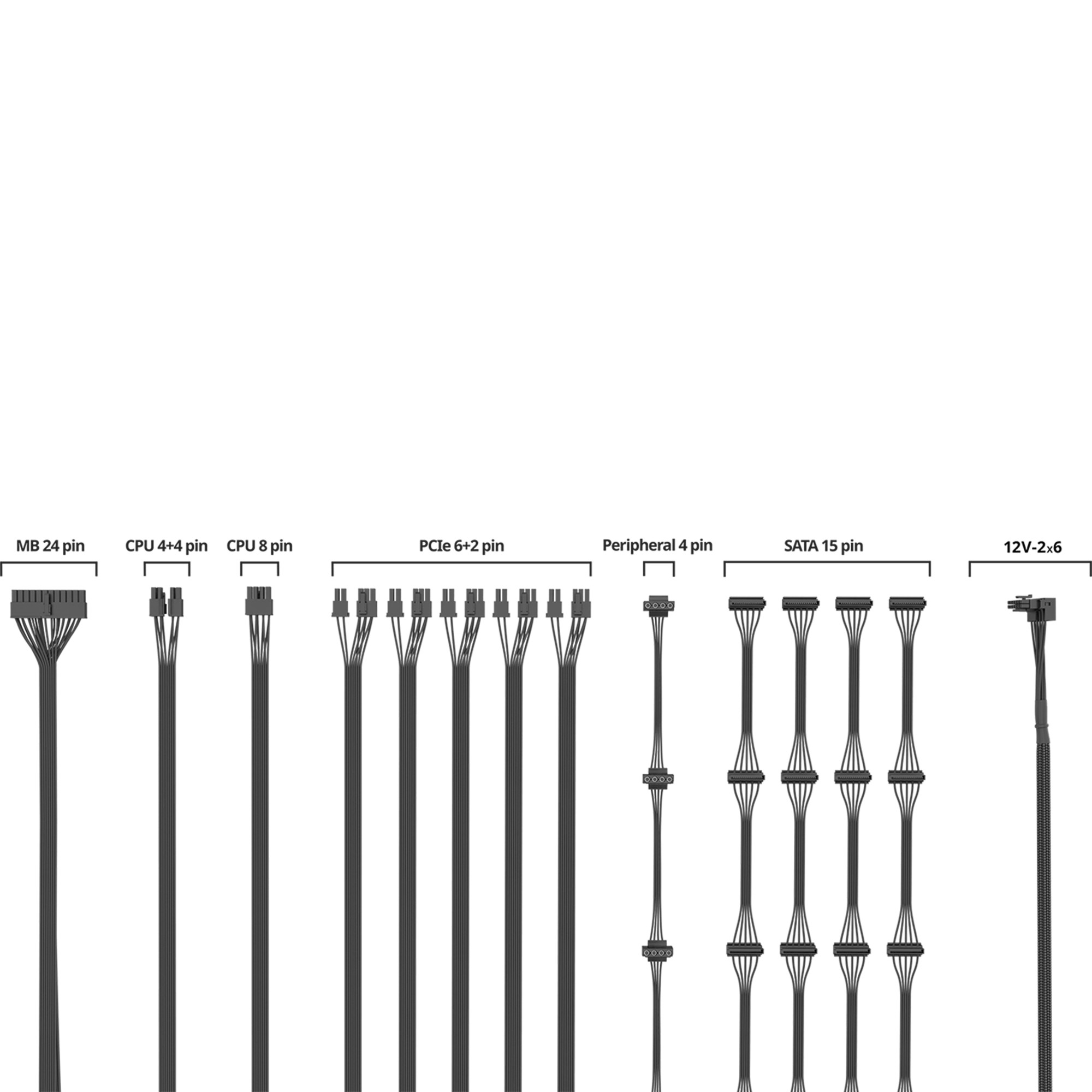

Ports & interfaces | |
Motherboard power cable length | 65 cm |
SATA power cable length | 120,500 mm |
Peripheral (Molex) power cable length | 120,500 mm |

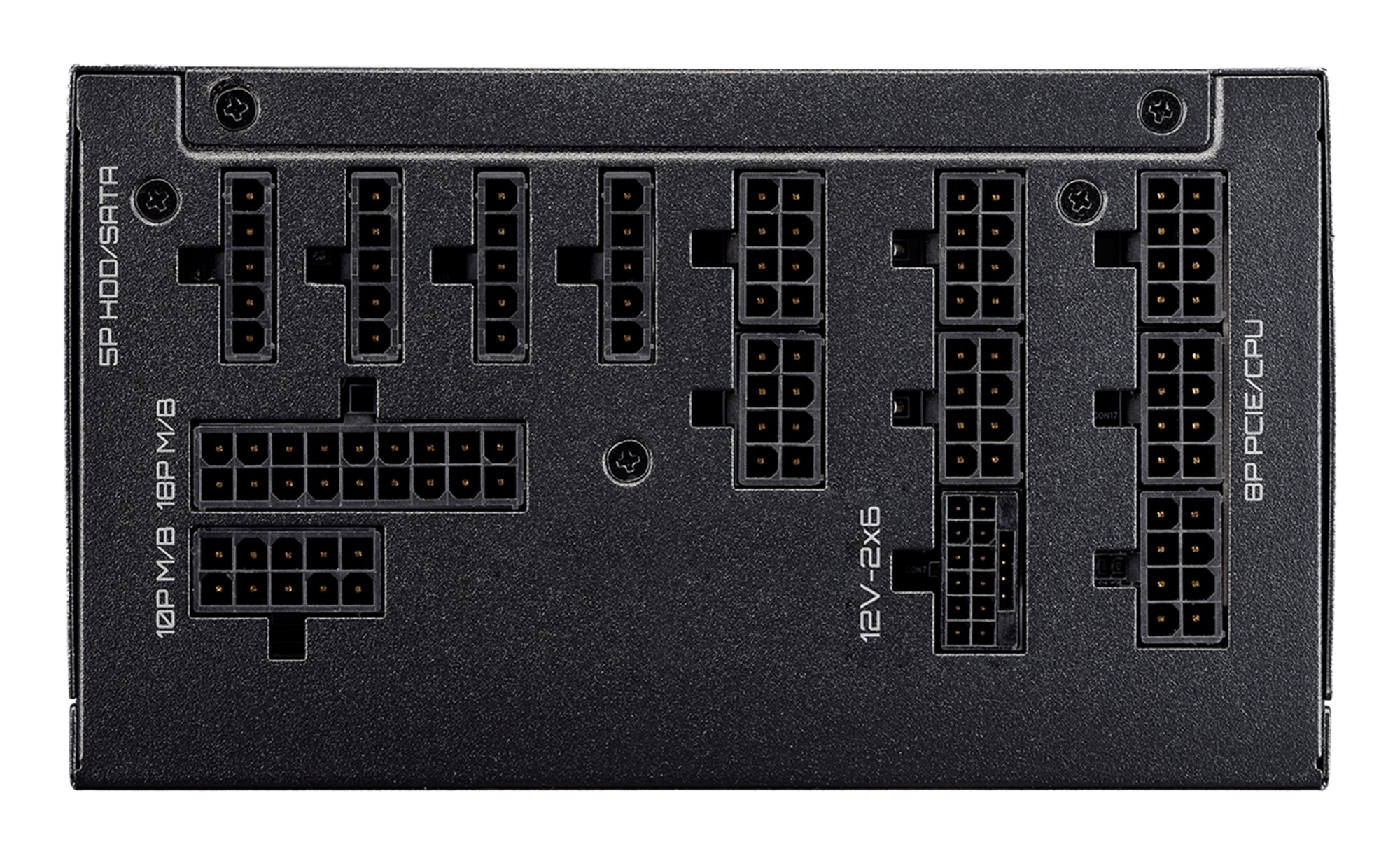

Motherboard power connector | 24-pin ATX |
Number of SATA power connectors | 16 |
Peripheral (Molex) power connectors (4-pin) | 4 |
EPS power connector (8-pin) | Yes |
PCI Express power connectors (6+2 pin) | 5 |
ATX Power connector (24-pin) | Yes |
Cabling type | Fully-Modular |
EPS power connector (4+4 pin) | Yes |
PCI Express power connectors (12-pin) | 1 |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Packaging content | |
Cables included | PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
Width | 150 mm |
Depth | 160 mm |
Height | 86 mm |
Weight | 3.66 kg |
Packaging data | |
Cables included | PCIe, Peripheral (Molex), SATA |
Package width | 195 mm |
Package depth | 125 mm |
Package height | 320 mm |
Package type | Box |
Package weight | 4.05 kg |
Technical details | |
Sustainability compliance | Yes |
Sustainability certificates | ErP |
Certificates | |
80 PLUS certification | 80 PLUS Platinum |
Certification | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC |
