DELL 403-BBLY interface cards/adapter Internal Fiber
- Brand: DELL
- Category:
- SKU: 403-BBLY
- EAN: 5711783355441

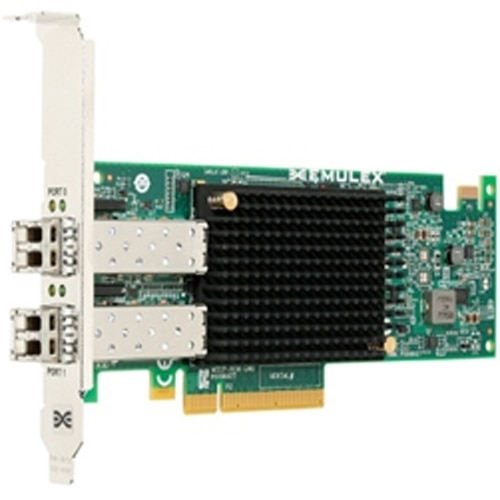

Emulex LPe32002-M2-D Dual Port 32 GB Fibre Channel HBA
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Dell FC 32Gb 2-Port PCI-E-3.0x8 Emulex LPe32002 Controller with FH Bracket - DPN |
403-BBLY |
Description
- Support for Dell iDRAC8 with LifeCycle Controller and Emulex OneCommand manager to improve IT staff productivity through simplified deployment and management
- T10 PI high-performance offload for advanced, end-to-end data integrity (requires support from SAN target solution)
The Dell™ Emulex Fibre Channel HBAs by Broadcom LTD are designed to address the demanding performance, reliability and management requirements of modern networked storage systems that utilize high performance and low latency solid state storage drives and HDD arrays. Compared to the previous generation, they provide up to 2x greater bandwidth— 12,800MBps , less than half the latency, and new features such as Forward Error Correction and enhanced diagnostics and I/O monitoring capabilities.
This product is compatible with the following systems:
- PowerEdge R530
- PowerEdge R630
- PowerEdge R730
- PowerEdge R730XD
- PowerEdge R930
- PowerEdge T630.
- T10 PI high-performance offload for advanced, end-to-end data integrity (requires support from SAN target solution)
The Dell™ Emulex Fibre Channel HBAs by Broadcom LTD are designed to address the demanding performance, reliability and management requirements of modern networked storage systems that utilize high performance and low latency solid state storage drives and HDD arrays. Compared to the previous generation, they provide up to 2x greater bandwidth— 12,800MBps , less than half the latency, and new features such as Forward Error Correction and enhanced diagnostics and I/O monitoring capabilities.
This product is compatible with the following systems:
- PowerEdge R530
- PowerEdge R630
- PowerEdge R730
- PowerEdge R730XD
- PowerEdge R930
- PowerEdge T630.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | PCIe |
| Output interface | Fiber |
| Fiber optic connector | LC |
| Expansion card standard | PCIe 3.0 |
| Performance | |
| Purpose | Server |
| Product colour | Green |
| Design | |
| Internal | Yes |
| Purpose | Server |
| Product colour | Green |
| Certification | CSA, UL, FCC, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, RCM |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compatibility | - PowerEdge R630 - PowerEdge R730 - PowerEdge R730XD - PowerEdge R530 - PowerEdge R930 - PowerEdge R630XL - PowerEdge R730xd XL - PowerEdge R730XL - Poweredge R830 - PowerEdge R640 - PowerEdge R740 - PowerEdge R740XD - PowerEdge R940 - PowerEdge T640 - PowerEdge R840 - PowerEdge R940xa |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Packaging data | |
| Quantity | 1 |
| Other features | |
| Data transfer rate | 28.05 Gbit/s |
| Ports quantity | 2 |
| Data link protocols | 32Gb Fibre Channel |
| Connectivity technology | Wired |
| Compatible operating systems | SuSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux |
| Compatibility | - PowerEdge R630 - PowerEdge R730 - PowerEdge R730XD - PowerEdge R530 - PowerEdge R930 - PowerEdge R630XL - PowerEdge R730xd XL - PowerEdge R730XL - Poweredge R830 - PowerEdge R640 - PowerEdge R740 - PowerEdge R740XD - PowerEdge R940 - PowerEdge T640 - PowerEdge R840 - PowerEdge R940xa |
| Packaging content | |
| Quantity | 1 |
