Fortinet 1-Port Gigabit PoE Power Injector, 802.3af 15.4Watts 10/100/1000 (PD-3501). for GPI-115 Gigabit PoE Injector
- Brand: FORTINET
- Category:
- SKU: GPI-115
- EAN: 0094922062123 0844117001389
2x Gigabit Ethernet, PoE, White
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
PYP:Fortinet 1 port Gigabit POE Pwr Inj. |
1559644 | |||
|
802.3at Gigabit PoE+ Injector |
363470 | |||
|
1 port Gigabit POE Pwr Inj. |
1559644 |
Description

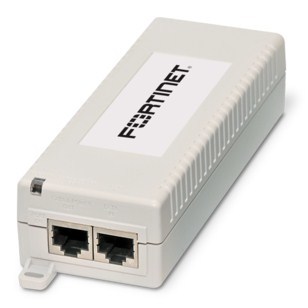

Power over Ethernet (PoE) Injector - GPI-115
The GPI-115 single port Power over Ethernet (PoE) Injector offers a IEEE 802.3af-compliant solution for the FortiAP Wireless Access Point family, and other 802.3af based devices. This mid-span power injector supplies up to 15.4 Watts of Gigabit Ethernet PoE and works with legacy network devices. The GPI-115 PoE Injector uses an intelligent auto-sensing algorithm to supply power to devices that accept 802.3af PoE connections.
The GPI-115 single port Power over Ethernet (PoE) Injector offers a IEEE 802.3af-compliant solution for the FortiAP Wireless Access Point family, and other 802.3af based devices. This mid-span power injector supplies up to 15.4 Watts of Gigabit Ethernet PoE and works with legacy network devices. The GPI-115 PoE Injector uses an intelligent auto-sensing algorithm to supply power to devices that accept 802.3af PoE connections.
Specifications
| Network | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Compliance industry standards | IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T/X |
| Power over Ethernet (PoE) voltage | 50 V |
| Features | |
| LED indicators | Yes |
| Certification | RoHS, WEEE, CE, UL/CUL, GS Mark, EN, FCC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power over Ethernet (PoE) voltage | 50 V |
| Input voltage | 90 - 264 V |
| Input frequency | 47/63 Hz |
| Input current | 0.5 A |
| AC adapter input voltage | 100 - 240 V |
| Technical details | |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating altitude | 0 - 100 m |
| Number of products included | 1 pc(s) |
| Input voltage | 90 - 264 V |
| Input frequency | 47/63 Hz |
| Input current | 0.5 A |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Compliance industry standards | IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 100 m |
| Weight & dimensions | |
| Weight | 200 g |
| Dimensions (WxDxH) | 53 x 140 x 32.5 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Certificates | |
| Certification | RoHS, WEEE, CE, UL/CUL, GS Mark, EN, FCC |
| Indication | |
| LED indicators | Yes |
