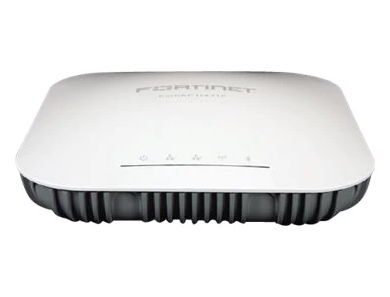

Fortinet FortiAP U431F 9908 Mbit/s Grey, White Power over Ethernet (PoE)
- Brand: FORTINET
- Category:
- SKU: FAP-U431F-N
- EAN: 0842382164044
Indoor wireless AP, Tri radio, Internal antennas, 1 x 2.5 GE & 1 x GE RJ45 ports, Non-FFCA
Offer details
Trade Prices
Description
Fortinet’s FortiAP-U Series offers a wide range of Access Points capable of being managed by any of Fortinet’s controller and management options: Cloud, FortiOS, or WLAN Controller. Perfect from everything from a large campus to hundreds of branch locations. Access Points are available across the performance spectrum up to the fastest Wi-Fi 6 4x4:4 devices.
Universal Access Management
Ability to intelligently support stand-alone controllers (FortiWLC), integrated security controllers (FortiGate) and cloud management options, establish a new benchmark in flexibility, performance and security.
Latest Wi-Fi technologies
Wi-Fi 6 technology with data rates of up to 4.8 Gbps and OFDMA improves client throughput and overall network efficiency.
Unmatched Security Protection
Integrates with Fortinet’s Security Fabric providing unparalleled cybersecurity protection at the network edge.
FortiAP U431F and U433F
These enterprise class 802.11ax indoor APs provide three radios. These top-of-the-line access points provide OFDMA, a 2.5 Gigabit Ethernet port plus an additional 1 Gbps Ethernet port for PoE diversity. The APs can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications.
Universal Access Management
Ability to intelligently support stand-alone controllers (FortiWLC), integrated security controllers (FortiGate) and cloud management options, establish a new benchmark in flexibility, performance and security.
Latest Wi-Fi technologies
Wi-Fi 6 technology with data rates of up to 4.8 Gbps and OFDMA improves client throughput and overall network efficiency.
Unmatched Security Protection
Integrates with Fortinet’s Security Fabric providing unparalleled cybersecurity protection at the network edge.
FortiAP U431F and U433F
These enterprise class 802.11ax indoor APs provide three radios. These top-of-the-line access points provide OFDMA, a 2.5 Gigabit Ethernet port plus an additional 1 Gbps Ethernet port for PoE diversity. The APs can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications.
Specifications
Performance | |
---|---|
2.4 GHz | Yes |
5 GHz | Yes |
Maximum data transfer rate | 9908 Mbit/s |
Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Frequency band | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
Web-based management | Yes |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
Modulation | 64-QAM, 1024-QAM |
Certification | CE, RoHS |
MIMO type | Multi User MIMO |
MIMO | Yes |
Features | |
2.4 GHz | Yes |
5 GHz | Yes |
Maximum data transfer rate | 9908 Mbit/s |
Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Frequency band | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
Modulation | 64-QAM, 1024-QAM |
Short Guard Interval (GI) | Yes |
Maximum Likelihood Detection (MLD) | Yes |
Maximal-Ratio Combining (MRC) | Yes |
Data unit aggregation | A-MPDU, A-MSDU |
MIMO type | Multi User MIMO |
MIMO | Yes |
Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
Maximum data transfer rate (5 GHz) | 4804 Mbit/s |
Security | |
Number of SSID supported | 16 |
Security algorithms | EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WEP, WPA, WPA2 |
Wireless Intrusion Detection System (WIDS) | Yes |
Whitelist | Yes |
Blacklist | Yes |
Management features | |
Web-based management | Yes |
Ports & interfaces | |
RS-232 interface | Yes |
USB connector type | USB Type-A |
USB 2.0 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
Power | |
Power consumption (max) | 24.5 W |
Power over Ethernet (PoE) | Yes |
Design | |
Placement | Ceiling, Wall |
LED indicators | Yes |
Product colour | Grey, White |
Cable lock slot | Yes |
Certification | CE, RoHS |
Cable lock slot type | Kensington |
Antenna | |
Antenna type | Internal |
Antennas quantity | 10 |
Antenna gain level (max) | 6 dBi |
Software | |
Short Guard Interval (GI) | Yes |
Maximum Likelihood Detection (MLD) | Yes |
Maximal-Ratio Combining (MRC) | Yes |
Data unit aggregation | A-MPDU, A-MSDU |
Weight & dimensions | |
Width | 215 mm |
Depth | 215 mm |
Height | 57.5 mm |
Weight | 453 g |
Package weight | 820 g |
Packaging data | |
Mounting kit | Yes |
Package weight | 820 g |
Packaging content | |
Mounting kit | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -35 - 70 °C |
Logistics data | |
Quantity per pack | 1 pc(s) |
