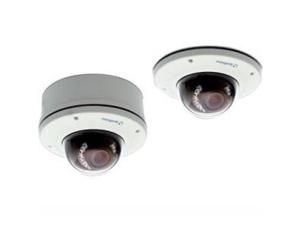

Geovision GV-VD1500 security camera Dome IP security camera Outdoor 1280 x 1024 pixels Ceiling
- Brand: GEOVISION
- Category:
- SKU: GV-VD1500
- EAN: 4717095107984
1/3" progressive scan CMOS, 0 lx, H.264/MJPEG, 1280 x 1024, 3 - 9 mm, F1.2, 90°, 55 dB, micro SD/SDHC, PoE, WDR, 1700 g
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
GEO CAM IPCAM-GV-VD1500 |
II19940 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | $631.99 |
Description
The GV-VD1500 is an outdoor camera (IP67) designed with vandal protection (IK10+). The camera is equipped with a Super Low Lux CMOS image sensor with which the camera is capable of providing a color live view in near darkness. The Vandal Proof IP Dome can also be installed on wall surface, wall corner, pole and ceiling with the GV-Mount accessories (optional).
- 1/3" progressive scan Super Low Lux CMOS
- Min. illumination at 0.01 lux
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1280 x 1024
- Vandal resistance (IK10+)
- Ingress protection (IP67)
- Varifocal megapixel lens
- 3-axis mechanism (pan / tilt / roll)
- Day and night function (with removable IR-cut filter)
- External microphone
- Intelligent IR
- Two-way audio
- One sensor input and alarm output
- TV-out support
- Built-in micro SD card slot (SD/SDHC) for local storage
- Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
- DC 12V / AC 24V / PoE (IEEE 802.3af)
- Wide Dynamic Range (WDR)
- 3D DNR (Digital Noise Reduction)
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
- More storage option - NAS
- 1/3" progressive scan Super Low Lux CMOS
- Min. illumination at 0.01 lux
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1280 x 1024
- Vandal resistance (IK10+)
- Ingress protection (IP67)
- Varifocal megapixel lens
- 3-axis mechanism (pan / tilt / roll)
- Day and night function (with removable IR-cut filter)
- External microphone
- Intelligent IR
- Two-way audio
- One sensor input and alarm output
- TV-out support
- Built-in micro SD card slot (SD/SDHC) for local storage
- Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
- DC 12V / AC 24V / PoE (IEEE 802.3af)
- Wide Dynamic Range (WDR)
- 3D DNR (Digital Noise Reduction)
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
- More storage option - NAS
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 31 |
| Languages support | Multi |
| Remote viewing | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE, FCC, RCM |
| Cable length | 1 m |
| Design | |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| Protection features | Vandal proof |
| LED indicators | Power, Status |
| International Protection (IP) code | IP67 |
| Camera | |
| Tilt angle range | 10 - 90° |
| Pan range | 0 - 350° |
| White balance | Auto, Manual |
| Angle of rotation | 340° |
| Camera shutter speed | 1/5 - 1/8000 s |
| Lens viewing angle, horizontal | 90° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Lens system | |
| Maximum aperture number | 1.2 |
| Zoom capability | Yes |
| Focal length range | 3 - 9 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 10 |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Automatic gain control | Yes |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Maximum resolution | 1280 x 1024 pixels |
| Video formats supported | H.264, M-JPEG |
| Supported graphics resolutions | 320 x 240, 320 x 256, 448 x 252, 640 x 360, 640 x 480 (VGA), 640 x 512, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960 |
| Supported video modes | 240p, 480p, 720p |
| Video compression formats | H.264, M-JPEG |
| Full HD | No |
| Frame rate | 30 fps |
| Total megapixels | 1.3 MP |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Supported network protocols | DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Built-in HDD | No |
| Ports & interfaces | |
| BNC output ports | 1 |
| Microphone in | Yes |
| Interface | RJ-45/BNC |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | Snapshot alert message |
| Motion sensor | Yes |
| Temperature sensor | Yes |
| Security algorithms | HTTPS, SNMP |
| IP address filtering | Yes |
| Active tampering alarm | Yes |
| Management features | |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Power | |
| Power source type | PoE |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 24 V |
| Power consumption (max) | 9 W |
| DC output voltage | 12 |
| Certificates | |
| Certification | CE, FCC, RCM |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
| Height | 125 mm |
| Diameter | 16.5 cm |
| Weight | 1.7 kg |
| Cable length | 1 m |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Yes |
| Terminal block included | Yes |
| Resource CD | Yes |
| Technical details | |
| Video out | 1 |
| Iris | Yes |
| Compliance certificates | RoHS |
| Other features | |
| Video compression formats | H.264, M-JPEG |
| Audio output | 1 |
