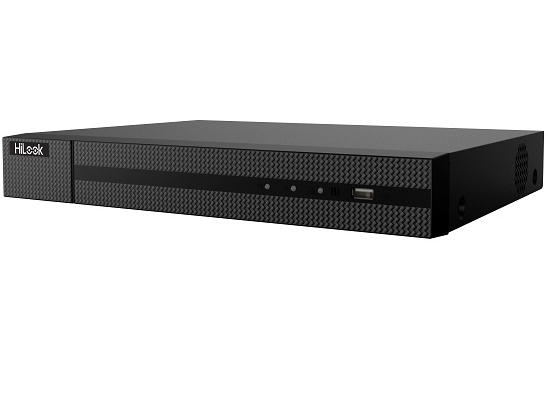

HiLook NVR-208MH-C/8P network video recorder 1U Black
- Brand: HILOOK
- Category:
- SKU: NVR-208MH-C-8P
- EAN: 6954273660833
8-ch, up to 8 MP, HDMI/VGA, RJ-45, 2x USB, RCA, 1U chassis, 80W
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
8-Channel 1U PoE 4K NVR |
NVR-208MH-C-8P |
Description
HD Input
- H.265+/H.265/H.264/H.264+ video formats
- Connectable to the third-party network cameras
- Up to 8 IP cameras can be connected
- Recording at upto 8 MP resolution
- Supports liveview, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
- HDMI and VGA independent outputs
- HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
- 2 SATA interfaces connectable for recording and backup

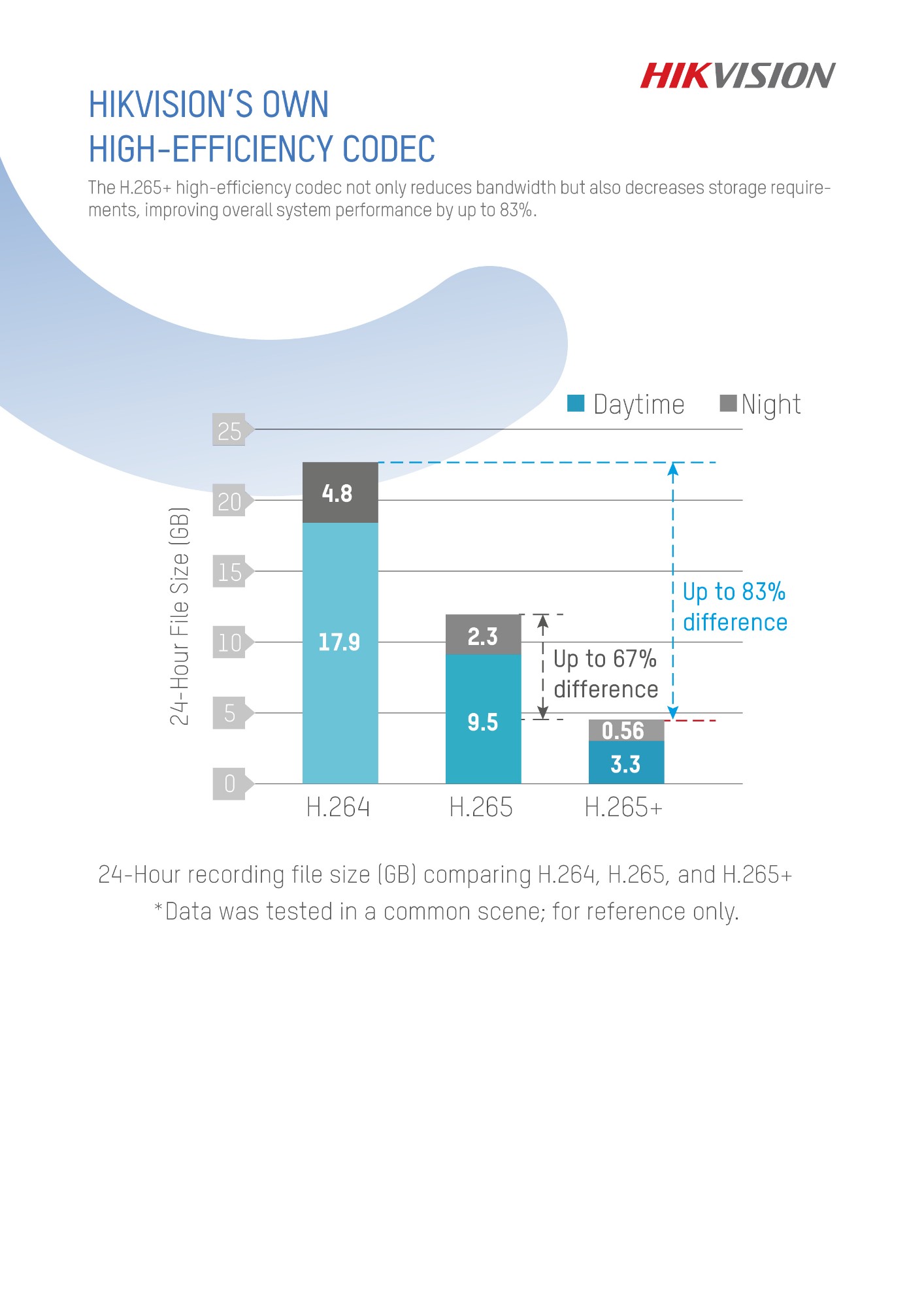

- H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
- 1 self-adaptive 10/100/1000Mbps network interface
- 8 independent PoE network interfaces are provided
Various Applications
- Centralized managementof IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency

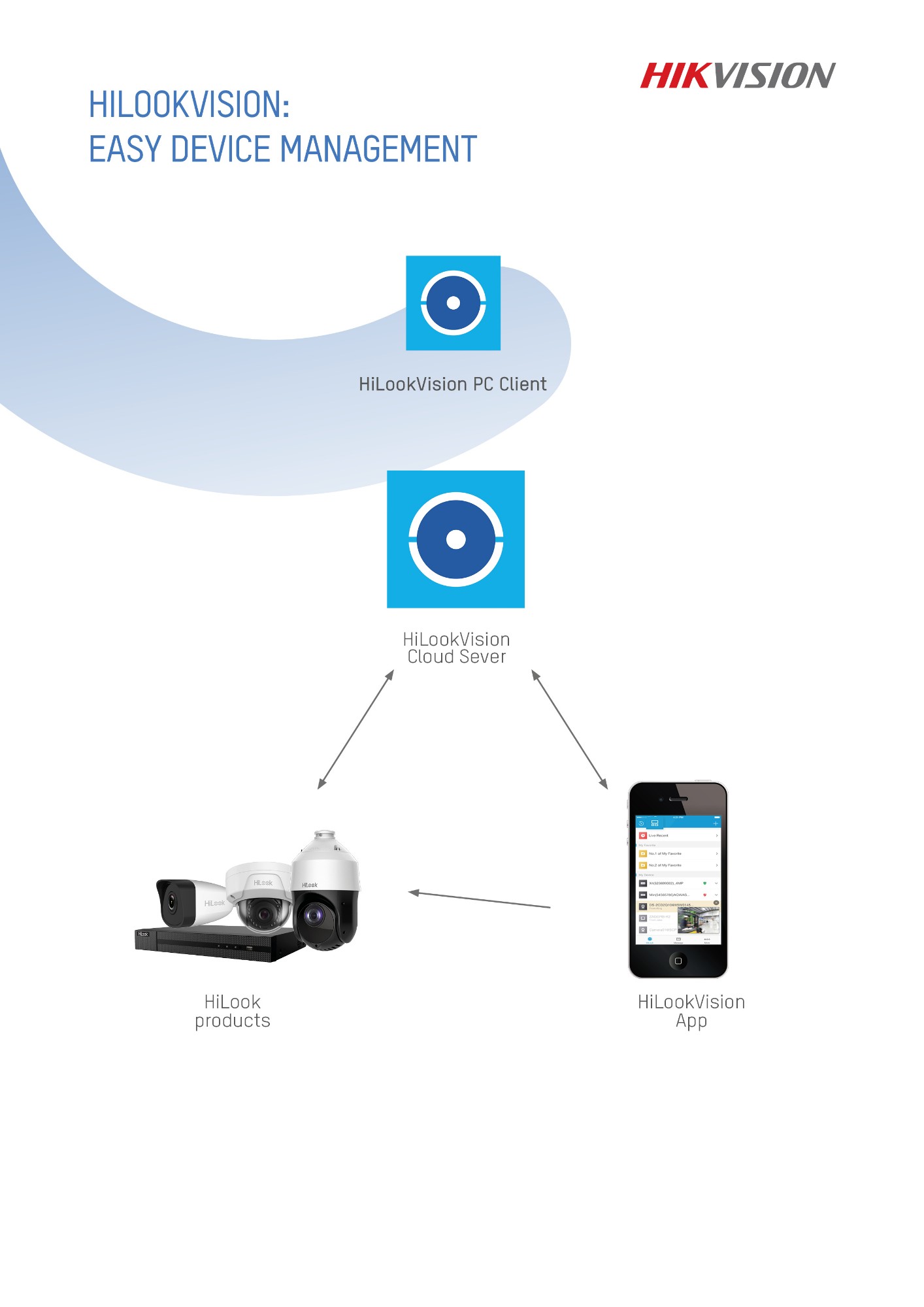

- Hik-Connect for easy network management
- H.265+/H.265/H.264/H.264+ video formats
- Connectable to the third-party network cameras
- Up to 8 IP cameras can be connected
- Recording at upto 8 MP resolution
- Supports liveview, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
- HDMI and VGA independent outputs
- HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
- 2 SATA interfaces connectable for recording and backup
- H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
- 1 self-adaptive 10/100/1000Mbps network interface
- 8 independent PoE network interfaces are provided
Various Applications
- Centralized managementof IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Hik-Connect for easy network management
Specifications
| Performance | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported resolutions | 3840 x 2160, 1920 x 1080p, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Video input channels | 8 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.264+, H.265, H.265+, MPEG4 |
| Supported network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Number of simultaneously playbacked channels | 8 channels |
| Video recording modes | 720p, 1080p |
| Output bandwidth | 80 Mbit/s |
| Input bandwidth | 80 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Storage | |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 6 TB |
| HDD interface | Serial ATA |
| Ports & interfaces | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Audio RCA outputs | 1 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Internal SATA ports quantity | 2 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| VGA (D-Sub) output ports | 1 |
| HDMI output | Yes |
| USB 2.0 ports quantity | 2 |
| Supported network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Audio RCA inputs | 1 |
| Features | |
| On/off switch | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 15 W |
| Power | 180 W |
| Total Power over Ethernet (PoE) budget | 80 W |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 385 mm |
| Depth | 315 mm |
| Height | 52 mm |
| Weight | 3 kg |
| Package width | 435 mm |
| Package depth | 129 mm |
| Package height | 387 mm |
| Package weight | 3.31 kg |
