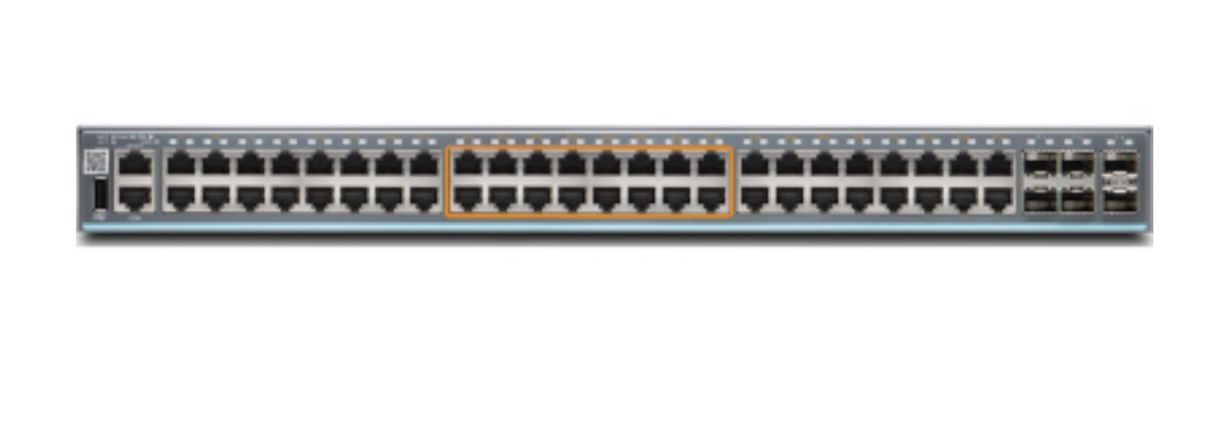

Juniper EX2300-48MP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
- Brand: JUNIPER
- Category:
- SKU: EX2300-48MP
- EAN: 0832938084346
EX2300 32-port 10/100/1000BASE-T PoE+, 16-port 10/100/1000/2500BASE-T PoE+, 6 x 1/10GbE SFP/ SFP+ (optics sold separately)
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
EX2300 class 48 port switch with 32 x 1G 16 x 1G 25G copper ports 30w PoE |
EX2300-48MP |
Description
The Juniper Networks® EX2300 line of Ethernet switches offers a compact, high-performance solution for supporting today’s converged network access deployments.
Each EX2300 switch includes an ASIC-based Packet Forwarding Engine (PFE) with an integrated CPU to consistently deliver wire-rate forwarding, even with all control plane features enabled. Based on existing, field-proven Juniper Networks technology, the PFE brings the same level of carrier-class performance and reliability to the EX2300 switches that Juniper Networks routers bring to the world’s largest service provider networks.
Select EX2300 models also support the 802.3af Class 3 Power over Ethernet (PoE) and 802.3at PoE+ standards for supporting networked devices such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones in converged networks. The PoE-enabled EX2300 switches include a maximum system budget of 750 watts to deliver up to 30 watts to select ports.
Multiple EX2300 models are available, including versions offering multigigabit (up to 2.5 Gbps) PoE+ access ports that can accommodate higher-speed IEEE 802.11ac Wave 2 access points, enabling the switches to support more wireless users.
Each EX2300 switch includes an ASIC-based Packet Forwarding Engine (PFE) with an integrated CPU to consistently deliver wire-rate forwarding, even with all control plane features enabled. Based on existing, field-proven Juniper Networks technology, the PFE brings the same level of carrier-class performance and reliability to the EX2300 switches that Juniper Networks routers bring to the world’s largest service provider networks.
Select EX2300 models also support the 802.3af Class 3 Power over Ethernet (PoE) and 802.3at PoE+ standards for supporting networked devices such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones in converged networks. The PoE-enabled EX2300 switches include a maximum system budget of 750 watts to deliver up to 30 watts to select ports.
Multiple EX2300 models are available, including versions offering multigigabit (up to 2.5 Gbps) PoE+ access ports that can accommodate higher-speed IEEE 802.11ac Wave 2 access points, enabling the switches to support more wireless users.
Specifications
| Network | |
|---|---|
| IGMP snooping | Yes |
| IGMP entries | 2000 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Voice VLAN |
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 6 |
| Basic switching RJ-45 Ethernet ports quantity | 32 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 2.5G Ethernet (copper) ports quantity | 16 |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 19000 entries |
| Switching capacity | 264 Gbit/s |
| Throughput | 130 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Security | |
| IGMP snooping | Yes |
| IGMP entries | 2000 |
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Protocols | |
| Management protocols | SNMP v1, v2c, v3 |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Performance | |
| Processor frequency | 1250 MHz |
| Noise level | 45.8 dB |
| Internal memory | 2048 MB |
| Flash memory | 8192 MB |
| Power | |
| Power consumption (max) | 90 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 760 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3965 m |
| Non-operating altitude | 0 - 4572 m |
| Weight & dimensions | |
| Width | 446 mm |
| Depth | 368.3 mm |
| Height | 44.5 mm |
| Weight | 6.5 kg |
