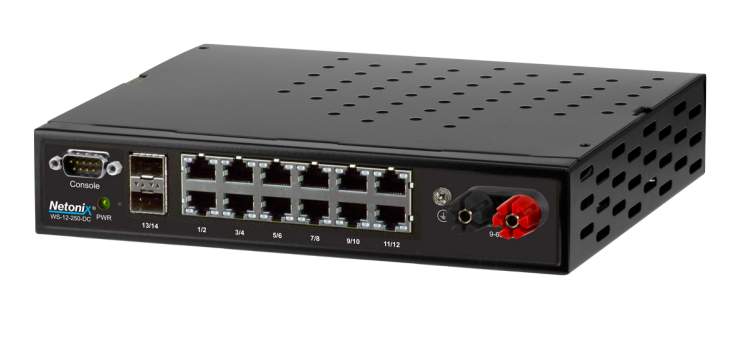

Netonix WS-12-250-DC network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- Brand: NETONIX
- Category:
- SKU: WS-12-250-DC
- EAN:
19” 14 Gbps, 10/100/1000 Mbit/s, 12 x Ethernet Ports, 2 x SFP, 24V PoE, Black
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
12 Port DC Powered Managed PoE Switch |
WS-12-250-DC |
Description
The Netonix® WISP Switch™ product line was designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.
- LAG – Port aggregation LACP/Static
- STP / RSTP / MSTP (MSTP available with firmware v2.0)
- Port mirroring and remote monitoring via Wire Shark with CPSP
- VLAN dot1Q/QinQ/Port Trunking
- SNMP - complete statistical reporting
- SMTP alerts - configurable
- Bandwidth limiting per port
- Ping watch dog per port
- Scheduled port bouncing
- Cable Diagnostics
- Loop Protection
- DHCP Snooping
- IGMP Snooping
- Flow Control - with back pressure
- Storm Control
- Multicast Filtering
- Port Isolation
- Auto TFTP Backup on Config Change
- UDP - Ubiquiti Discovery Protocol
- CDP - Cisco Discovery Protocol
- Security - access control list and login tarpit
- LAG – Port aggregation LACP/Static
- STP / RSTP / MSTP (MSTP available with firmware v2.0)
- Port mirroring and remote monitoring via Wire Shark with CPSP
- VLAN dot1Q/QinQ/Port Trunking
- SNMP - complete statistical reporting
- SMTP alerts - configurable
- Bandwidth limiting per port
- Ping watch dog per port
- Scheduled port bouncing
- Cable Diagnostics
- Loop Protection
- DHCP Snooping
- IGMP Snooping
- Flow Control - with back pressure
- Storm Control
- Multicast Filtering
- Port Isolation
- Auto TFTP Backup on Config Change
- UDP - Ubiquiti Discovery Protocol
- CDP - Cisco Discovery Protocol
- Security - access control list and login tarpit
Specifications
| Network | |
|---|---|
| IGMP snooping | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Performance | |
| Stackable | Yes |
| Processor frequency | 416 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Management features | |
| Switch type | Managed |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RS-232 |
| Data transmission | |
| Switching capacity | 14 Gbit/s |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast features | Controllable multicast |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Form factor | 1U |
| Certification | CE, FCC, IC |
| Power | |
| DC input voltage | 9 - 60 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) voltage range | 22 - 24 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 223 mm |
| Depth | 181 mm |
| Height | 44 mm |
| Weight | 2 kg |
