Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|

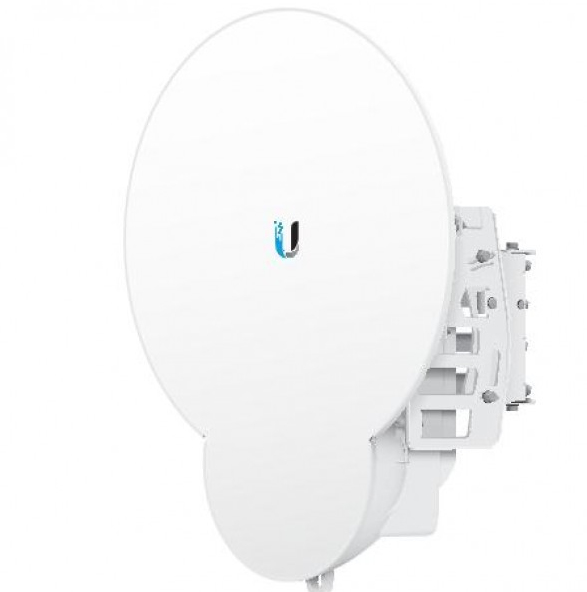

AirFiber 24GHz 1Gbps Full Duplex Wireless Backhaul Point to Point Radio |
AF-24-HD | |||
|
AIRFIBER 24GHZ HD |
4882122 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | $3,999.00 |
Description
Featuring our INVICTUS custom silicon for 2+ million packets-per-second processing, the airFiber 24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance.
Revolutionary Performance
Featuring the world’s best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.
Proven Links: 20+ km
The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range – up to 20+ km – among 24 GHz products and allows for constellation threshold extension.
Low-Latency Carrier Backhaul
The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.
24 GHz Unlicensed Band
The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).
Revolutionary Performance
Featuring the world’s best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.
Proven Links: 20+ km
The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range – up to 20+ km – among 24 GHz products and allows for constellation threshold extension.
Low-Latency Carrier Backhaul
The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.
24 GHz Unlicensed Band
The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 40 dBi |
| Frequency band | 24 GHz |
| Modulation | 16-QAM, 256-QAM, 64-QAM, QPSK |
| Features | |
| Antenna gain level (max) | 40 dBi |
| Frequency band | 24 GHz |
| Modulation | 16-QAM, 256-QAM, 64-QAM, QPSK |
| Antenna type | Sector antenna |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Wall |
| Product colour | White |
| Certification | CE, FCC, IC |
| Technical details | |
| Harmonized System (HS) code | 85177100 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 55 °C |
| Weight & dimensions | |
| Weight | 17.3 kg |
| Width | 593 mm |
| Depth | 768 mm |
| Height | 370 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
