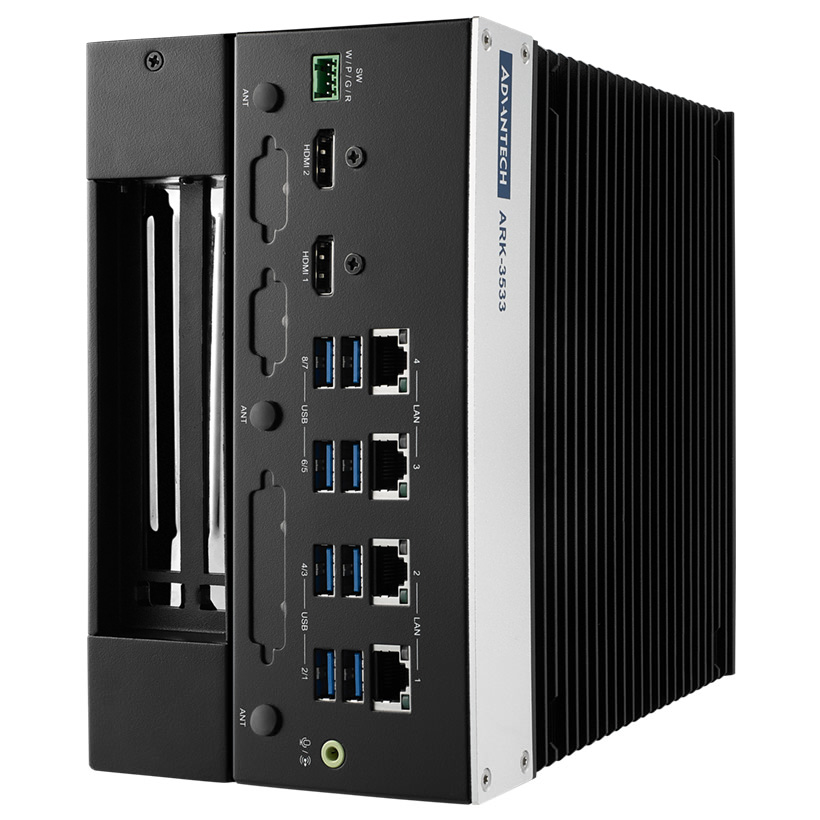

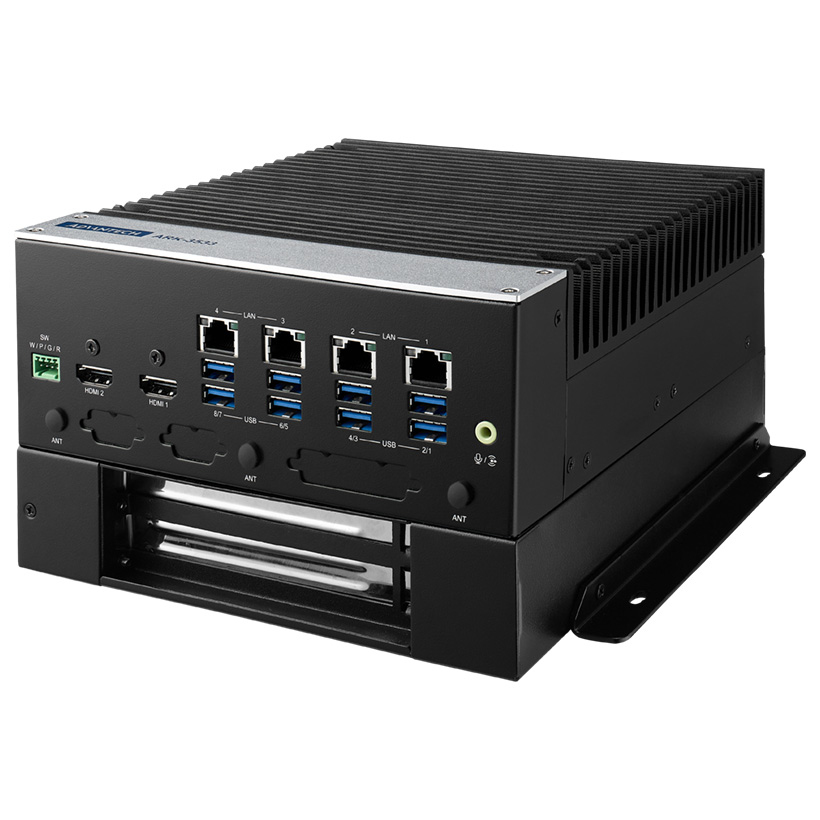

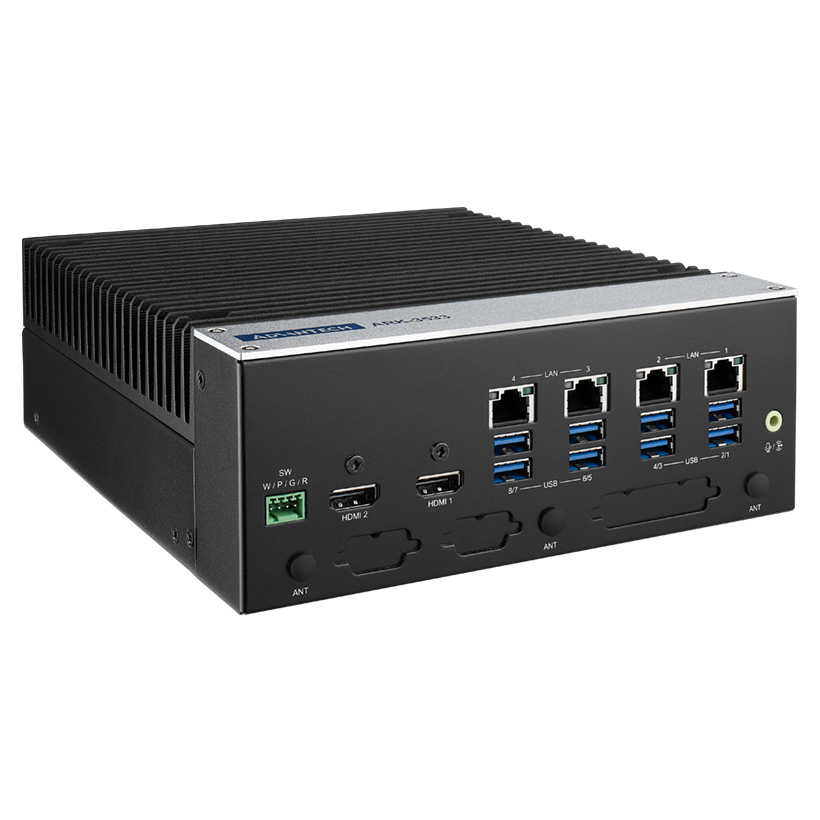

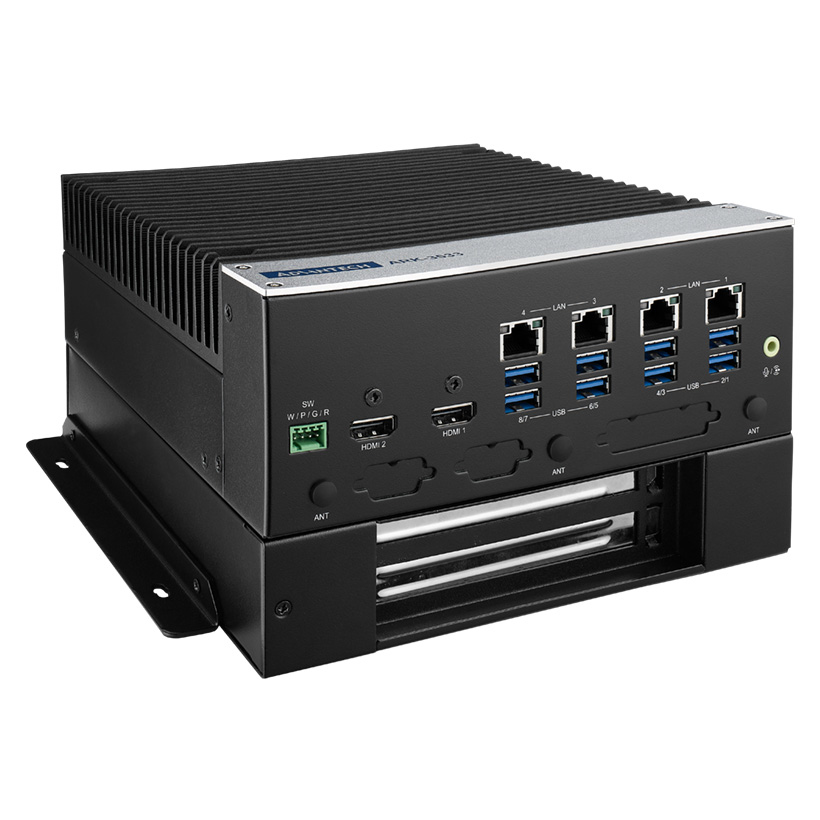

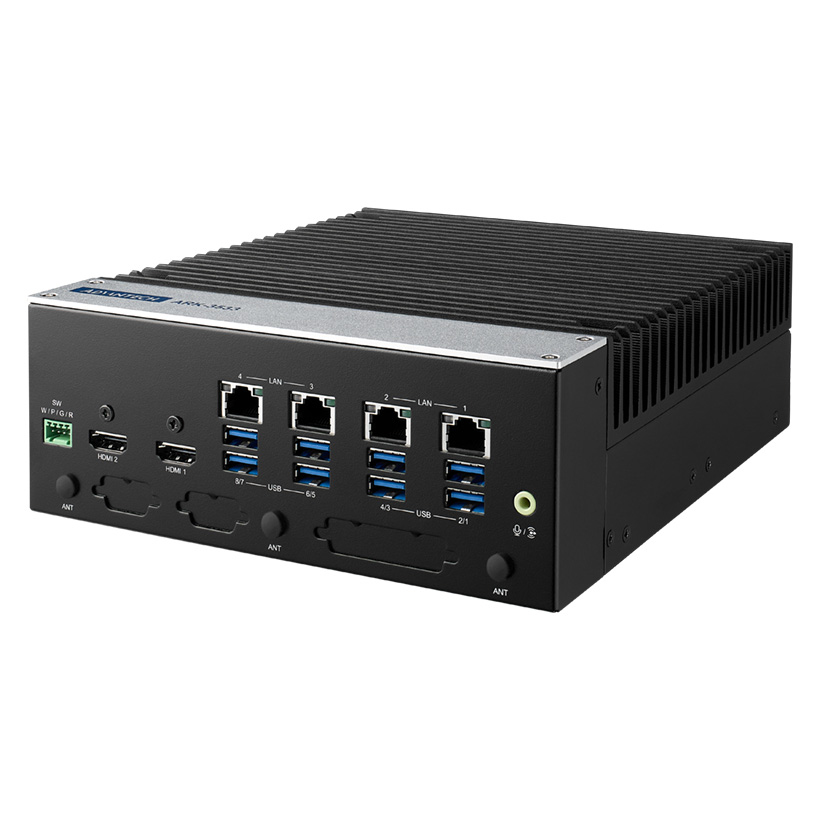

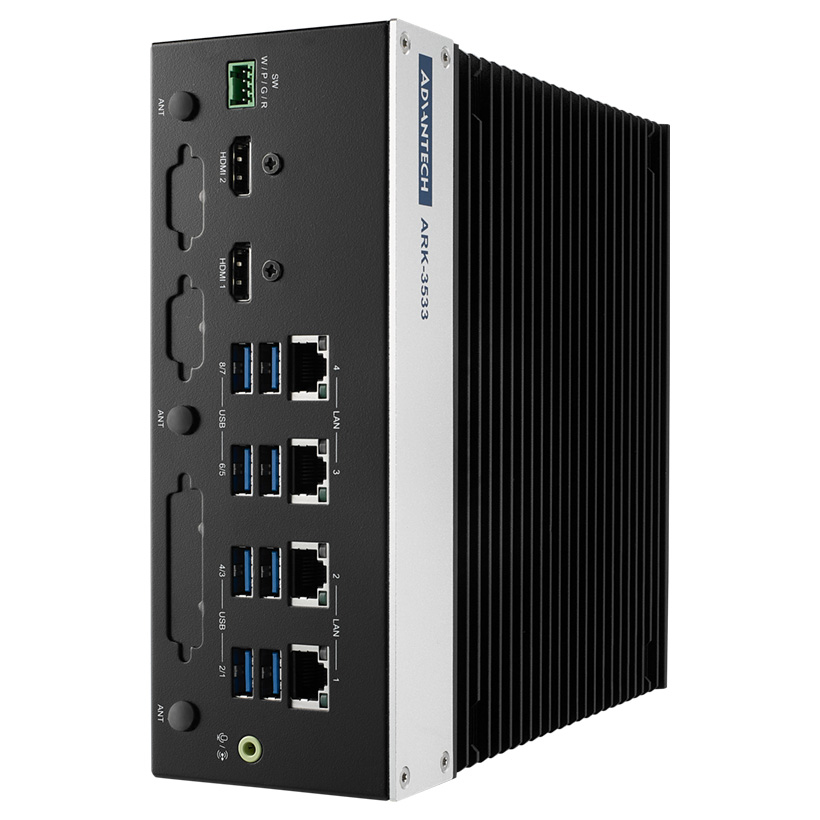

Advantech ARK-3533 Cube Black Intel H610 LGA 1700
- Brand: Advantech
- Category:
- SKU: ARK-3533-00A1
- EAN:

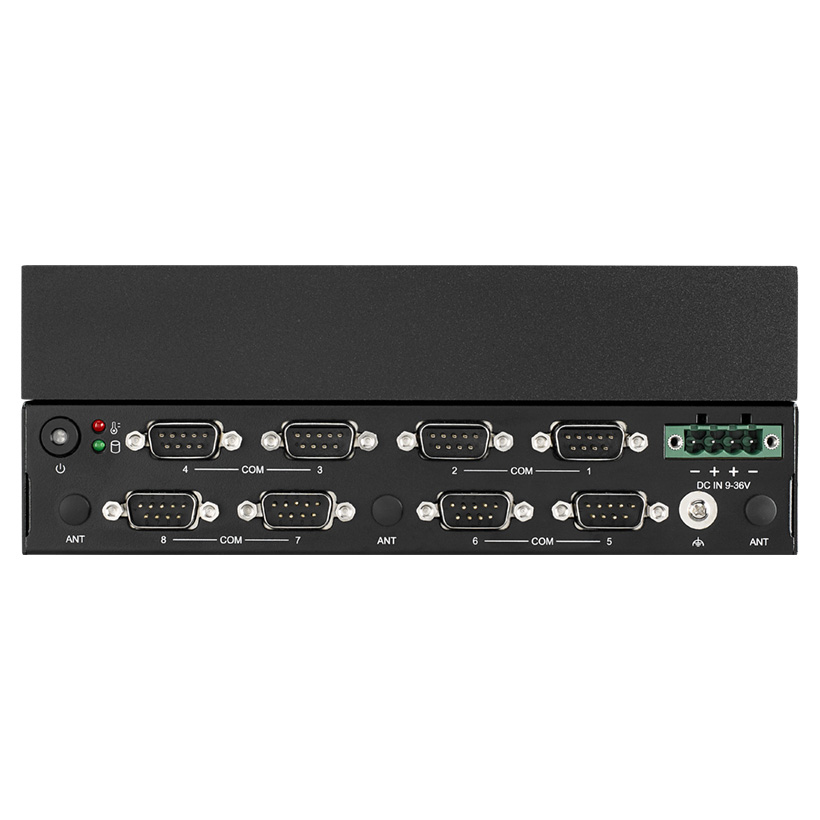

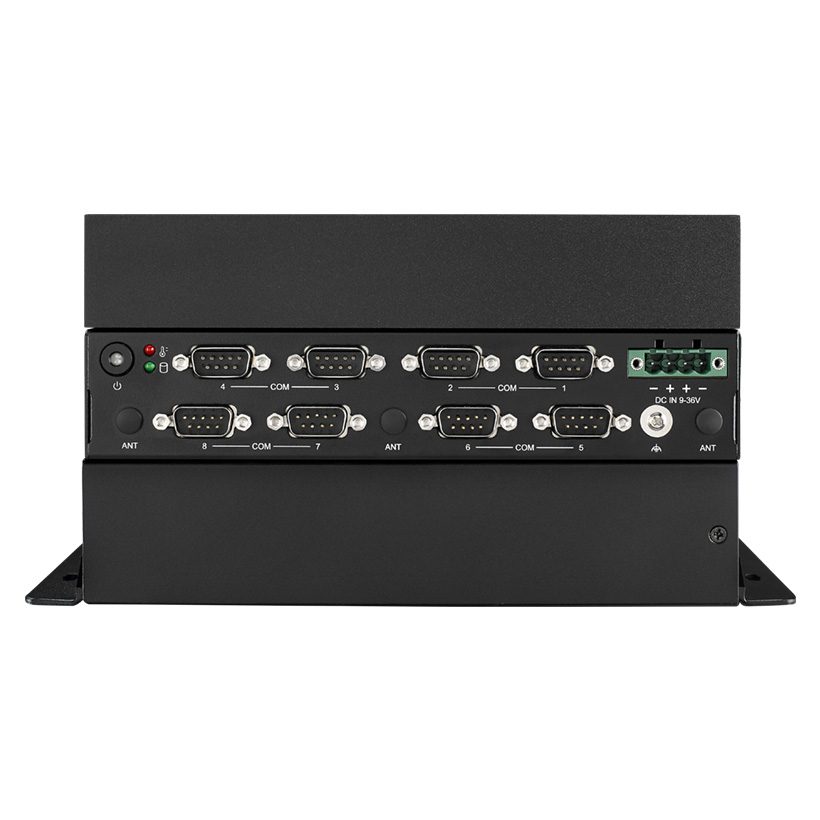

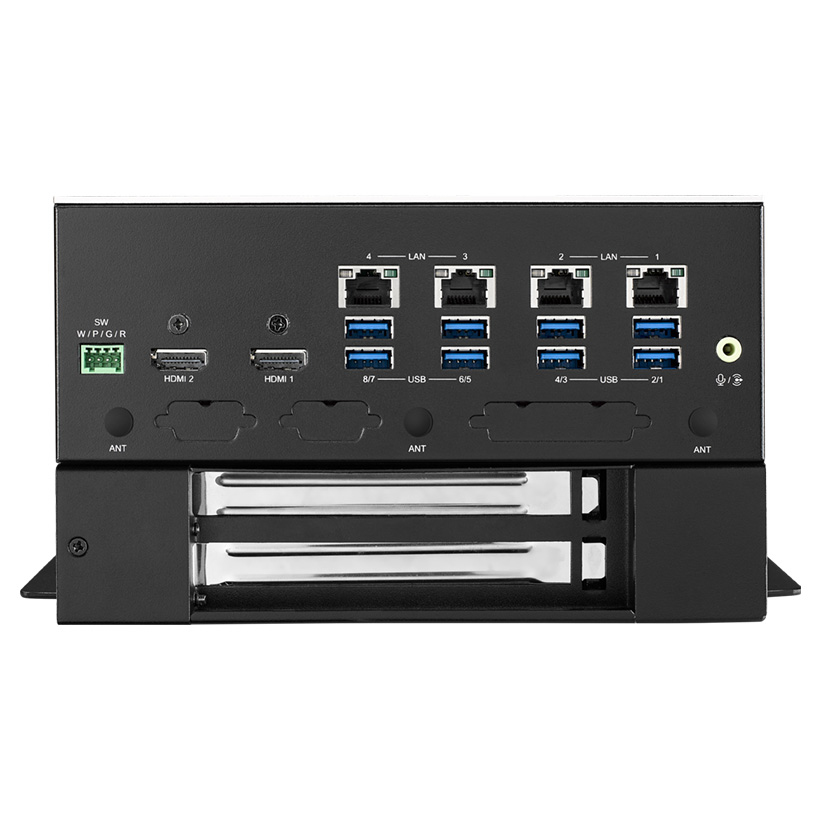

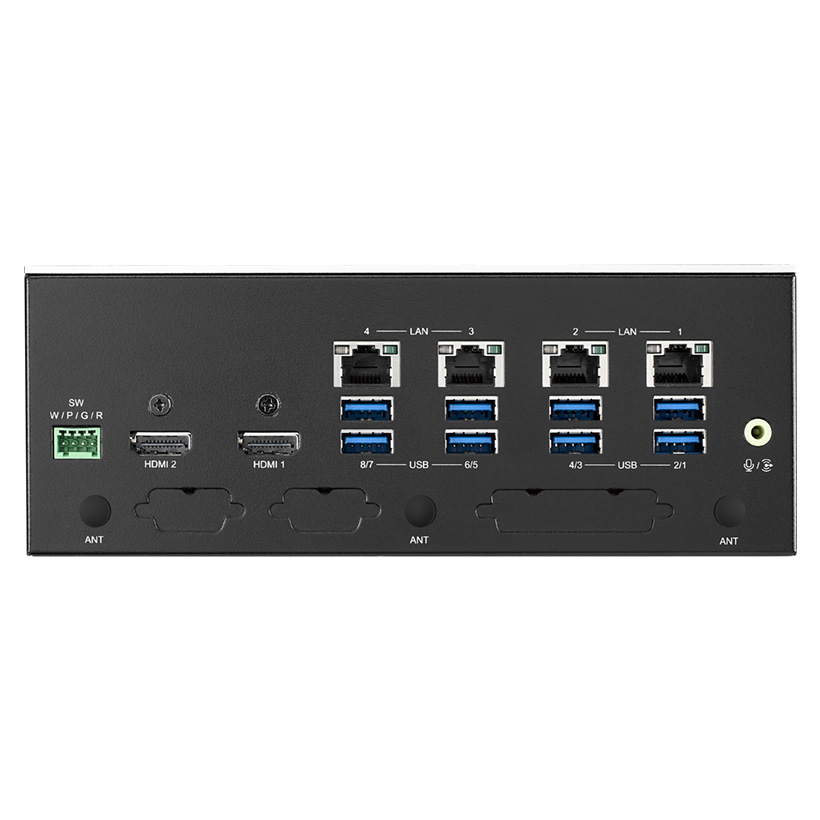

Intel® Core™ 12th& 13th gen i3/i5/i7/i9 LGA1700, 2x 262 Pin DDR5 SO-DIMM up to 64GB 4800MHz Max, Intel UHD Graphics 770, 2x 2.5" SSD/HDD, 1x PCIe M.2 2280, TPM 2.0, 4x RS 232/422/485, 2x USB 3.2 Gen.1, 2x USB 3.2 gen.2, 4x USB 2.0, 2x HDMI, DirectX12, OpenGL 4.5, 2x 3.5mm Audio, 200x215x75mm, 3.2kg
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
ARK-3533-00A1 LGA1700 4GbE 8USB 8COM |
AT3539 |
Specifications
| Motherboard | |
|---|---|
| Processor socket | LGA 1700 |
| Motherboard chipset | Intel H610 |
| Compatible processor series | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen |
| Processor | |
| Built-in processor | No |
| Processor socket | LGA 1700 |
| Motherboard chipset | Intel H610 |
| Compatible processor series | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen |
| Processor manufacturer | Intel |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 4800 MHz |
| Maximum internal memory | 64 GB |
| Video | |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| Number of storage drives supported | 2 |
| SSD form factor | 2.5" |
| NVMe | Yes |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics 770 |
| Audio | |
| Built-in speaker(s) | No |
| Audio chip | RealTek ALC888S |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219, Intel I225-V |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| Design | |
| Product type | Workstation barebone |
| Housing material | Aluminium |
| On/off switch | Yes |
| Product colour | Black |
| Chassis type | Cube |
| Performance | |
| Windows operating systems supported | Windows 10 |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Processor socket | LGA 1700 |
| Motherboard chipset | Intel H610 |
| Compatible processor series | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| Audio chip | RealTek ALC888S |
| Colour | |
| Product colour | Black |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Chassis type | Cube |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Compliance certificates | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), UKCA |
| Software | |
| Windows operating systems supported | Windows 10 |
| Management features | |
| On/off switch | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Power | |
| Power supply type | Internal power supply unit |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 215 mm |
| Height | 75 mm |
| Weight | 3.2 kg |
| Other features | |
| Chassis type | Cube |
