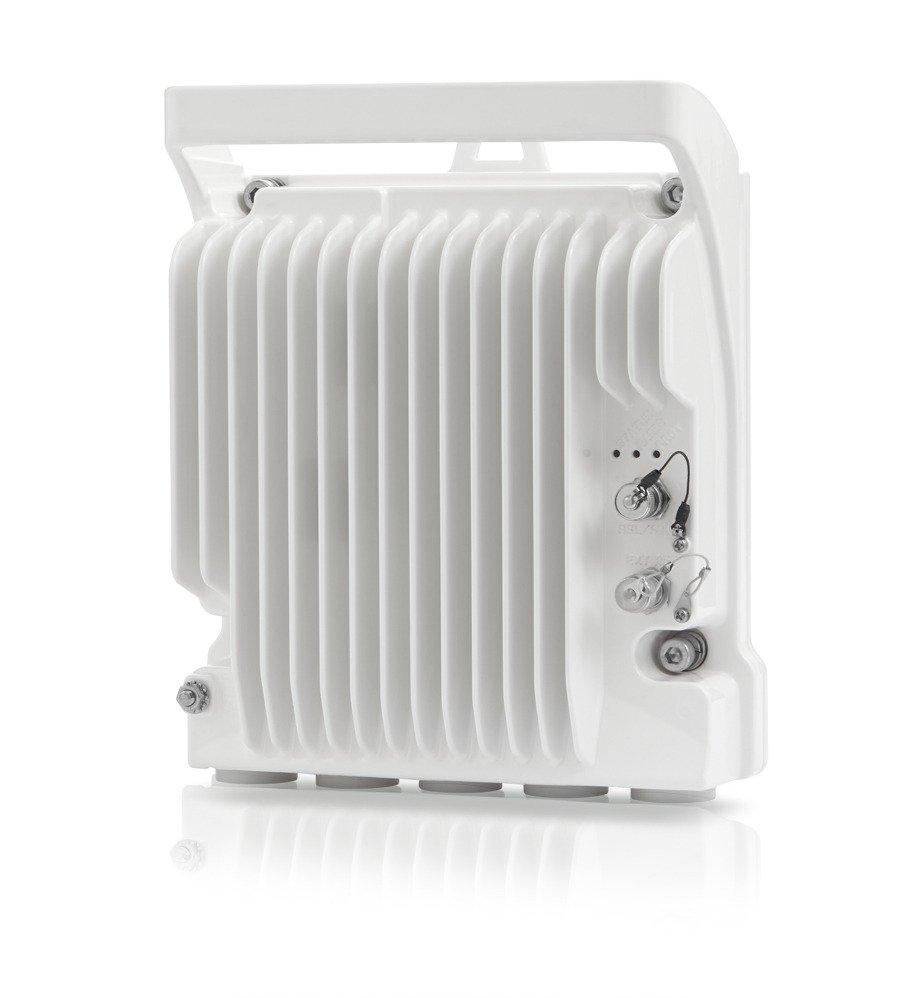

Cambium Networks PTP 820C-HP/RFU-D-HP network antenna

6-11 GHz, QPSK to 2048 QAM, 1 x 10/100/1000Base-T (RJ-45) + 1x1000base-X (SFP), MTU – 9600 Bytes

Trade Prices

Distributor Product SKU Stock Updated Price
AU - Dicker Data Limited

PTP 820C-HP/RFU-D-HP, DIPLEXER,U6 GHZ,TR160A,CH13W16,HI,6827.5-6872.5MHZ

 N060082L242A Register free see stock

Description

All outdoor, dual core, High Power 35 dBm model inter-operable with PTP 820C. The PTP 820C HP has up to 1.2 Gbps and field changeable diplexer.

Specifications

Performance
Networking standardsIEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad
Frequency band6 GHz
Modulation16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM
Cabling technology10/100/1000Base-T(X)
Features
Networking standardsIEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad
Frequency band6 GHz
Modulation16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM
PurposeOutdoor
Power
Power source typeDC
Input voltage48 V
Operational conditions
Operating temperature (T-T)-33 - 55 °C
Storage temperature (T-T)-45 - 60 °C
Weight & dimensions
Weight6.8 kg
Width284 mm
Depth107 mm
Height315 mm
