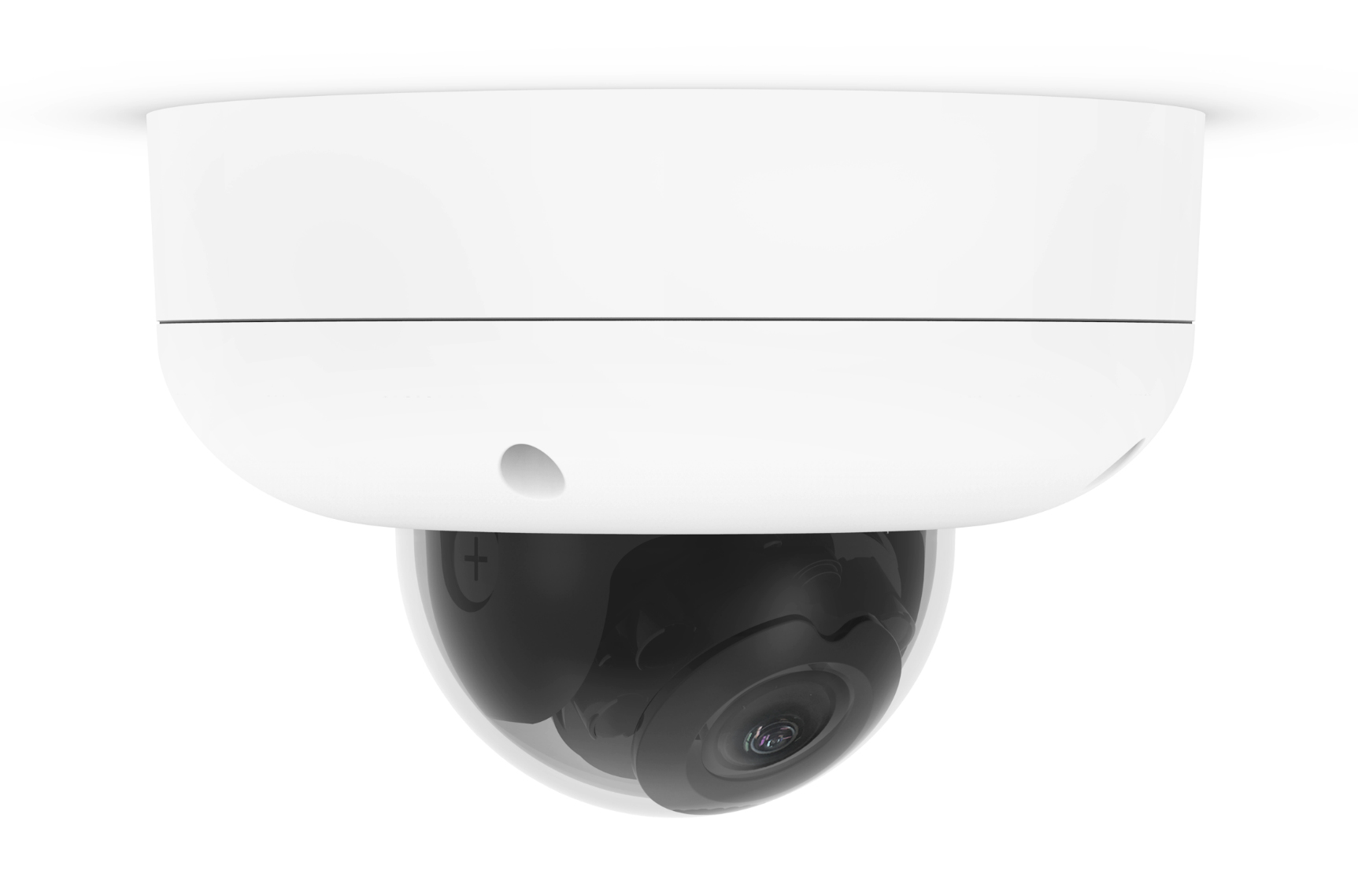

Cisco MV71 Dome Outdoor 2560 x 1920 pixels Ceiling
- Brand: Cisco
- Category:
- SKU: MV71-HW
- EAN: 0810979012726
5MP, 1/3.2”, CMOS, 2560 x 1920, f/1.3 - f/2.5, 10/100 Base-T, H.264, 128GB SSD, PoE+, IP66/IK10
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
EOS Meraki MV71 Cloud Managed Outdoor HD Dome Camera |
MV71-HW |
Related Products
-
Category: PoE Adapters -
Category: PoE Adapters -
Category: PoE Adapters
-
Category: Software Licenses/Upgrades -
Category: Software Licenses/Upgrades -
Category: Software Licenses/Upgrades
-
Category: Software Licenses/Upgrades
-
Category: Software Licenses/Upgrades
Description
Fixed Dome Camera for Demanding Environments
Cloud management, reliable edge storage, and IP66 & IK10 rated
Ratings
- IP66 weather resistance
- IK10 impact resistance
Granular access controls
- Control who can view live and historical footage
- Limit access to video exporting
- Grant viewing access to individual cameras or by device tags
Cloud management
- Network-wide visibility and control
- Stream local or remote — the cloud automatically routes the video stream
- Create and organize video walls
- Export video clips to a shareable link or download
Specifications
| Performance | |
|---|---|
| Remote viewing | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Day/night mode | Yes |
| Plug and Play | Yes |
| Design | |
| Weatherproof | Yes |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling |
| Protection features | Vandal proof |
| LED indicators | Status |
| Camera | |
| Minimum illumination | 0.001 lx |
| Tilt angle range | 0 - 65° |
| Pan range | -175 - 175° |
| Angle of rotation | 350° |
| Camera shutter speed | 1/32000 s |
| Lens viewing angle, horizontal | 82° |
| Lens viewing angle, vertical | 61° |
| Lens viewing angle, diagonal | 107° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Lens system | |
| Maximum aperture number | 2.5 |
| Zoom capability | Yes |
| Focal length range | 3 - 10 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Maximum resolution | 2560 x 1920 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Supported video modes | 720p |
| Video compression formats | H.264 |
| Total megapixels | 5 MP |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 62 dB |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3at |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Storage | |
| Card reader integrated | No |
| Built-in HDD | No |
| Flash memory | 128000 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Light sensor | Yes |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Remotely operated | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 21.95 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 50 °C |
| Weight & dimensions | |
| Height | 115 mm |
| Diameter | 17.3 cm |
| Weight | 1.48 kg |
| Packaging content | |
| Number of cameras | 1 |
| Quick installation guide | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Technical details | |
| Iris | Yes |
| Other features | |
| Video compression formats | H.264 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
