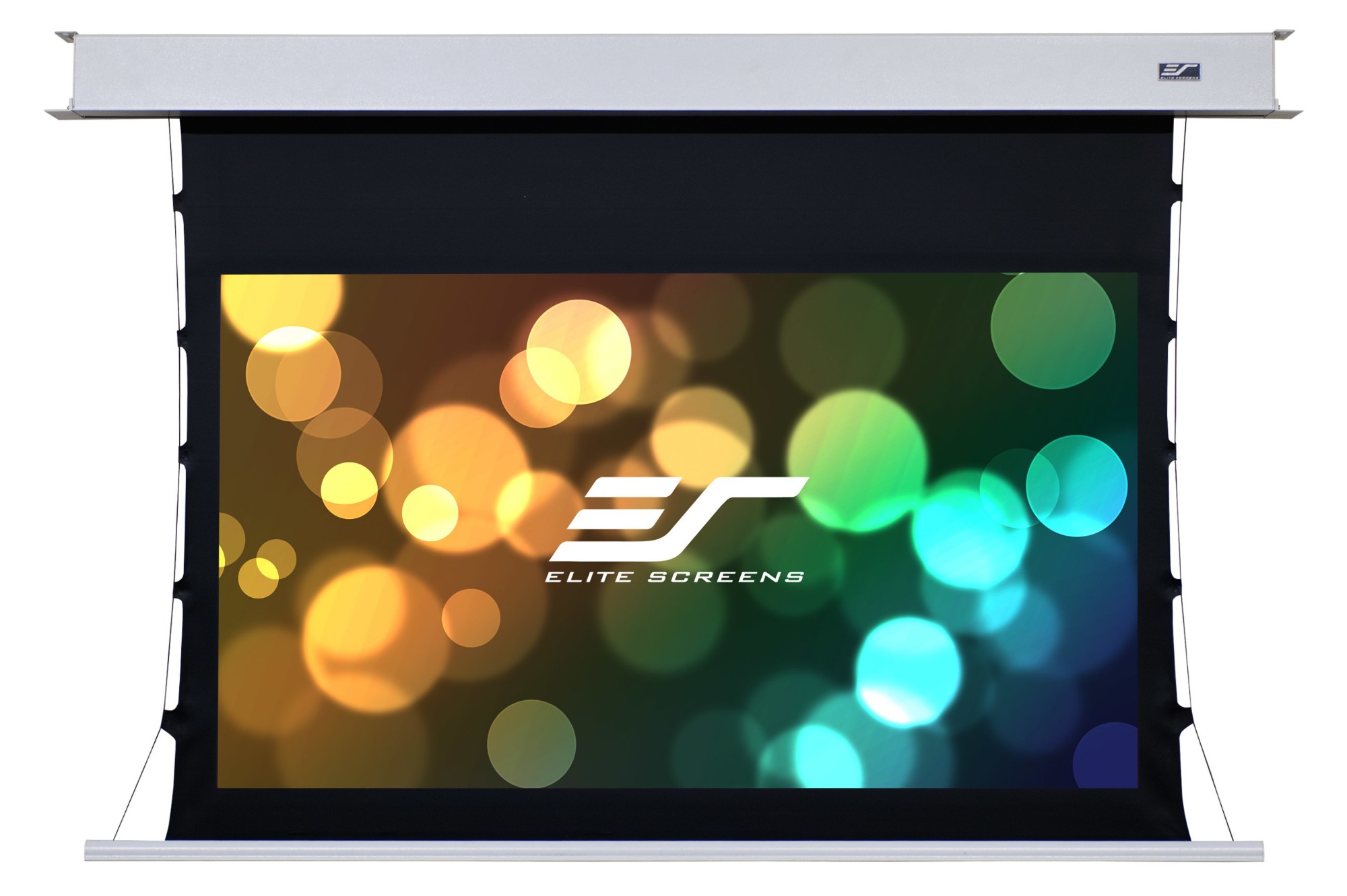

Elite Screens Evanesce Tab Tension B projection screen 2.79 m (110") 16:9
- Brand: Elite Screens
- Category:
- SKU: ETB110HW2-E8
- EAN: 6944904405551 0848448016661
In-Ceiling Screen Tab Tension Economy 243,5cm x 124,5cm (BxH) 16:9
Offer details
Description
Product information "Evanesce Tab Tension B ETB110HW2-E8" In-Ceiling Screen Tab Tension Economy 243,5cm x 124,5cm (BxH) 16:9

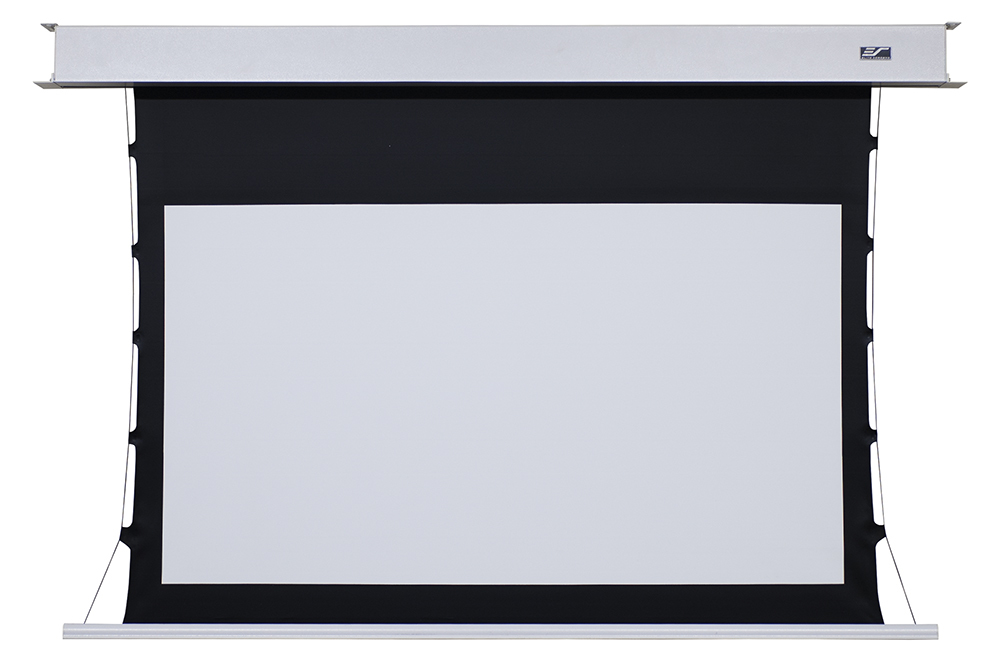

The Evanesce Tab-Tension B is our newest in-ceiling recessed projection screen. It is designed for concealed installations. It utilizes our CineWhite front projection material. The tab-tensioned system maintains flatness uniformity throughout the entire surface with no tab impressions. Images pop and videos maintain true colors.
Screen Material:
- CineWhite tensioned front projection material.
- 160º wide-viewing angle.
- Gain: 1.1.
- 4K Ultra HD Ready.
- Tab-tension cords provide uniform flatness on entire projection surface.
- Black-backing.
Design and Installation:

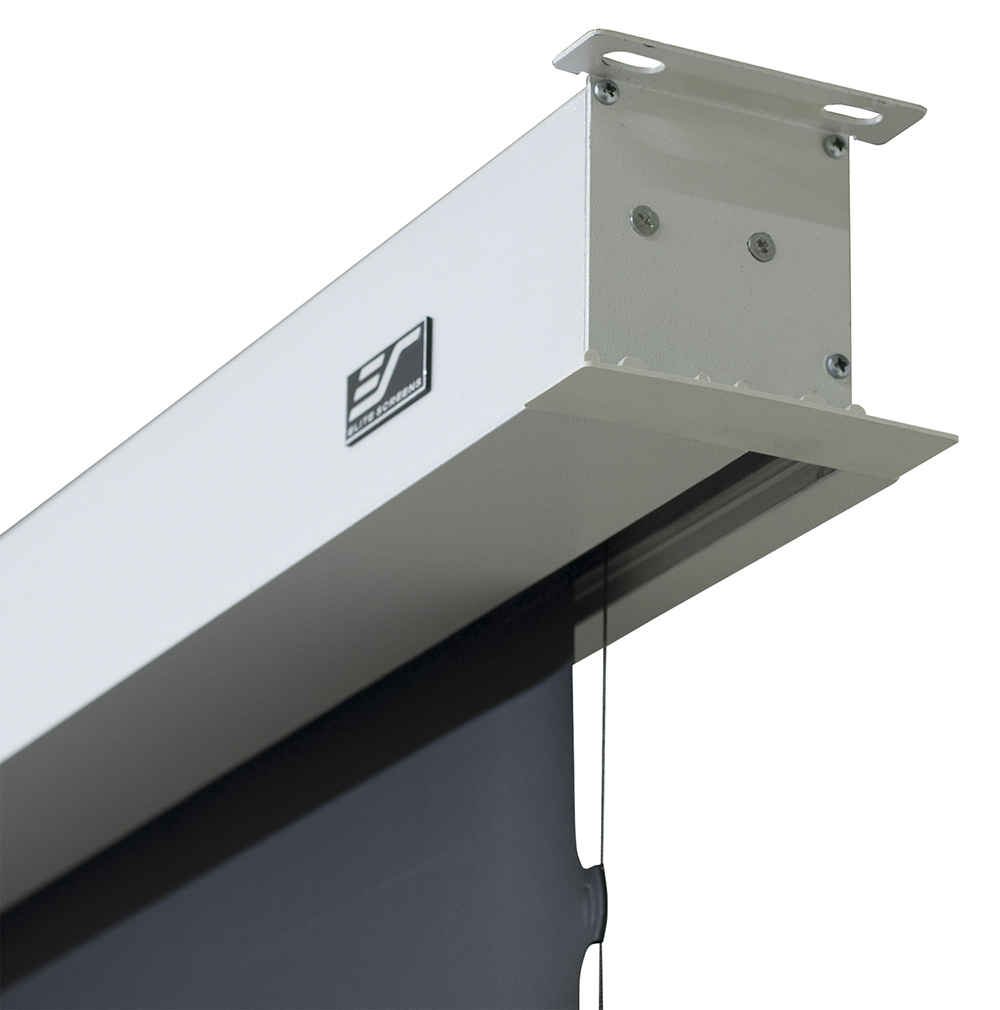

- Aluminum housing with white finish is slim yet strong and moisture resistant.
- Concealed in-ceiling front projection screen for multi-use rooms.
- Integrated ceiling projection screen ships fully assembled, ready to install.
- Below and above ceiling access installation design.
- Installation kit included.
Control System:
- Internal Radio Frequency/Infrared receivers with IR, RF remotes included.
- Low voltage 3-way wall switch and in-wall RJ45 module included.
- Standard 5-12 volt trigger to synchronize screen operation with the projector's power cycle.
- Optional in-wall up/down switch (part# ZIW-W).
- Optional 5-12 volt wireless trigger.
- RJ45 port allows 3rd party control systems integration.
The Evanesce Tab-Tension B is our newest in-ceiling recessed projection screen. It is designed for concealed installations. It utilizes our CineWhite front projection material. The tab-tensioned system maintains flatness uniformity throughout the entire surface with no tab impressions. Images pop and videos maintain true colors.
Screen Material:
- CineWhite tensioned front projection material.
- 160º wide-viewing angle.
- Gain: 1.1.
- 4K Ultra HD Ready.
- Tab-tension cords provide uniform flatness on entire projection surface.
- Black-backing.
Design and Installation:
- Aluminum housing with white finish is slim yet strong and moisture resistant.
- Concealed in-ceiling front projection screen for multi-use rooms.
- Integrated ceiling projection screen ships fully assembled, ready to install.
- Below and above ceiling access installation design.
- Installation kit included.
Control System:
- Internal Radio Frequency/Infrared receivers with IR, RF remotes included.
- Low voltage 3-way wall switch and in-wall RJ45 module included.
- Standard 5-12 volt trigger to synchronize screen operation with the projector's power cycle.
- Optional in-wall up/down switch (part# ZIW-W).
- Optional 5-12 volt wireless trigger.
- RJ45 port allows 3rd party control systems integration.
Specifications
Performance | |
---|---|
Native aspect ratio | 16:9 |
Viewable screen height (H) | 137 cm |
Viewable screen width (W) | 2.44 m |
Harmonized System (HS) code | 90106000 |
Diagonal | 2.79 m (110") |
Drive type | Motorized |
Overall screen size (Height x Width) | 2693 x 2810 cm |
Viewing angle | 160° |
Remotely operated | Yes |
Screen gain | 1.1 |
Format | Video |
Diagonal (metric) | 279.4 cm |
Design | |
Frame type | Folding frame |
Product colour | White |
Case colour | White |
Black drop | 20.3 cm |
Mounting type | Ceiling |
Weight & dimensions | |
Width | 2810 mm |
Depth | 180 mm |
Height | 2693 mm |
Weight | 17 kg |
Logistics data | |
Harmonized System (HS) code | 90106000 |
