Ergotron HX Series HX ARM WITH VERY HEAVY DUTY PIVOT WALL (WHITE) FOR 1000R 57" MONITORS
- Brand: ERGOTRON
- Category:
- SKU: 45-694-216
- EAN: 0698833091946
HX Wall Monitor Arm with VHD Pivot (white) for 1000R 57" Monitors
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
HX ARM WITH VERY HEAVY DUTY PIVOT WALL MOUNT BWT |
6342823 |
Description
Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"–13.8” (23–35 cm) deep and 28.7–37.5 lbs (13–17 kg), like the Samsung® 57″ Odyssey G9 Gaming Monitor.
note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate. When attaching to a hollow-wall stud, a Wall Track accessory is required. See Tech Specs for details.
note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate. When attaching to a hollow-wall stud, a Wall Track accessory is required. See Tech Specs for details.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 17 kg |
| Maximum weight capacity | 17 kg |
| Maximum screen size | 144.8 cm (57") |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Screws |

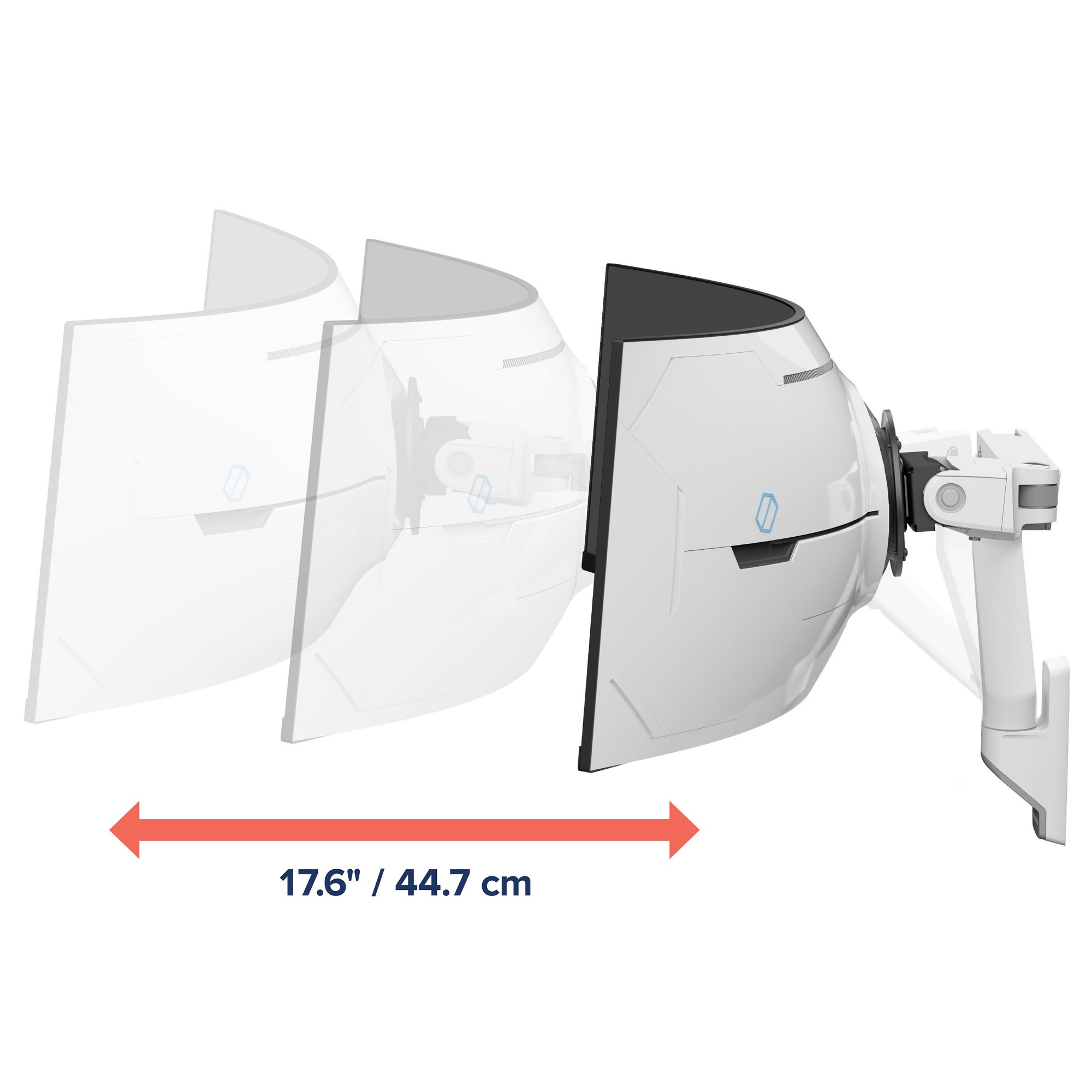

| Extension arm (max) | 44.7 cm |
| Suitable for TV | Yes |
| Maximum weight capacity (per curved/ultra-wide display) | 17 kg |
| Ergonomics | |
| Adjustable depth | Yes |
| Height adjustment | Yes |

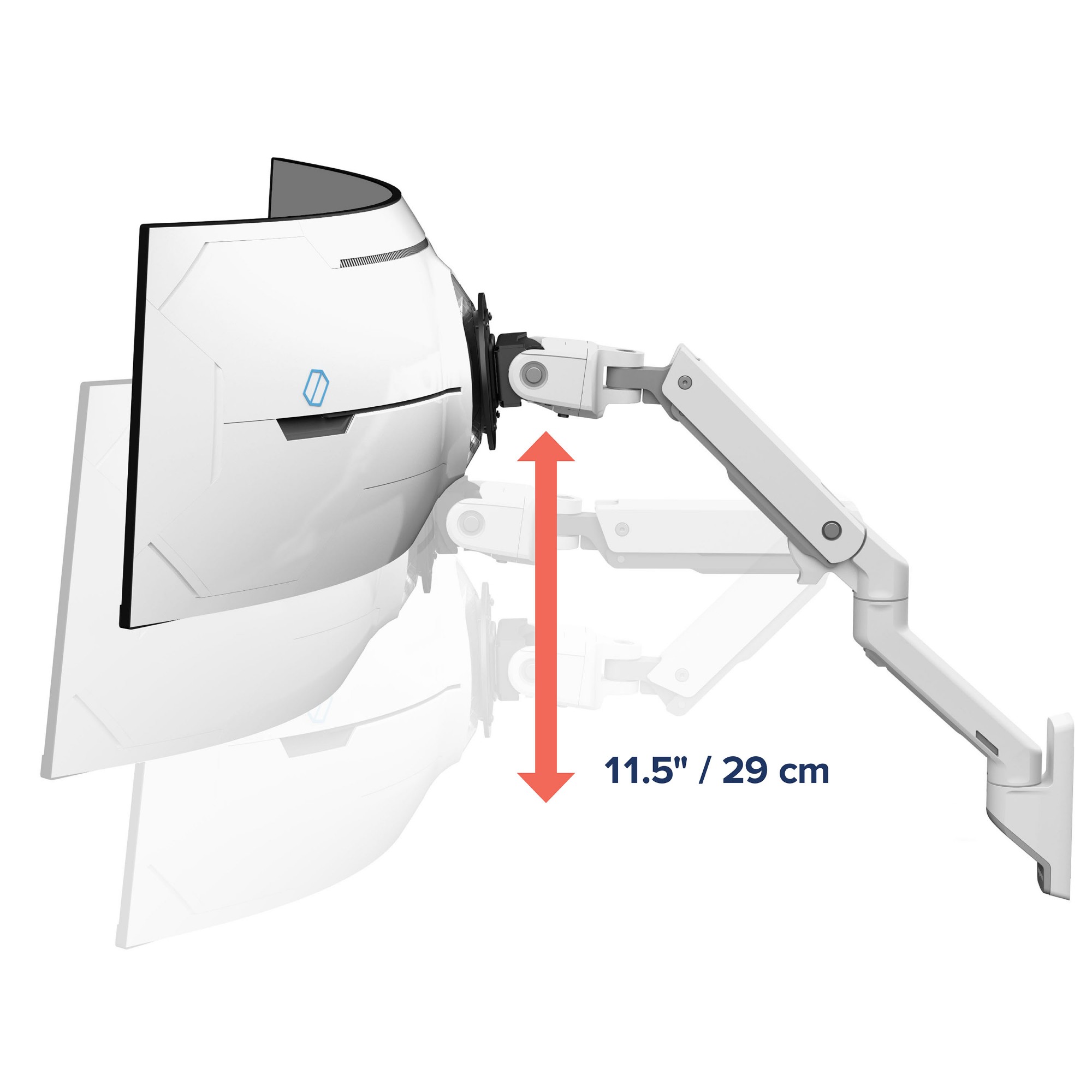

| Height adjustment range | 0 - 292 mm |

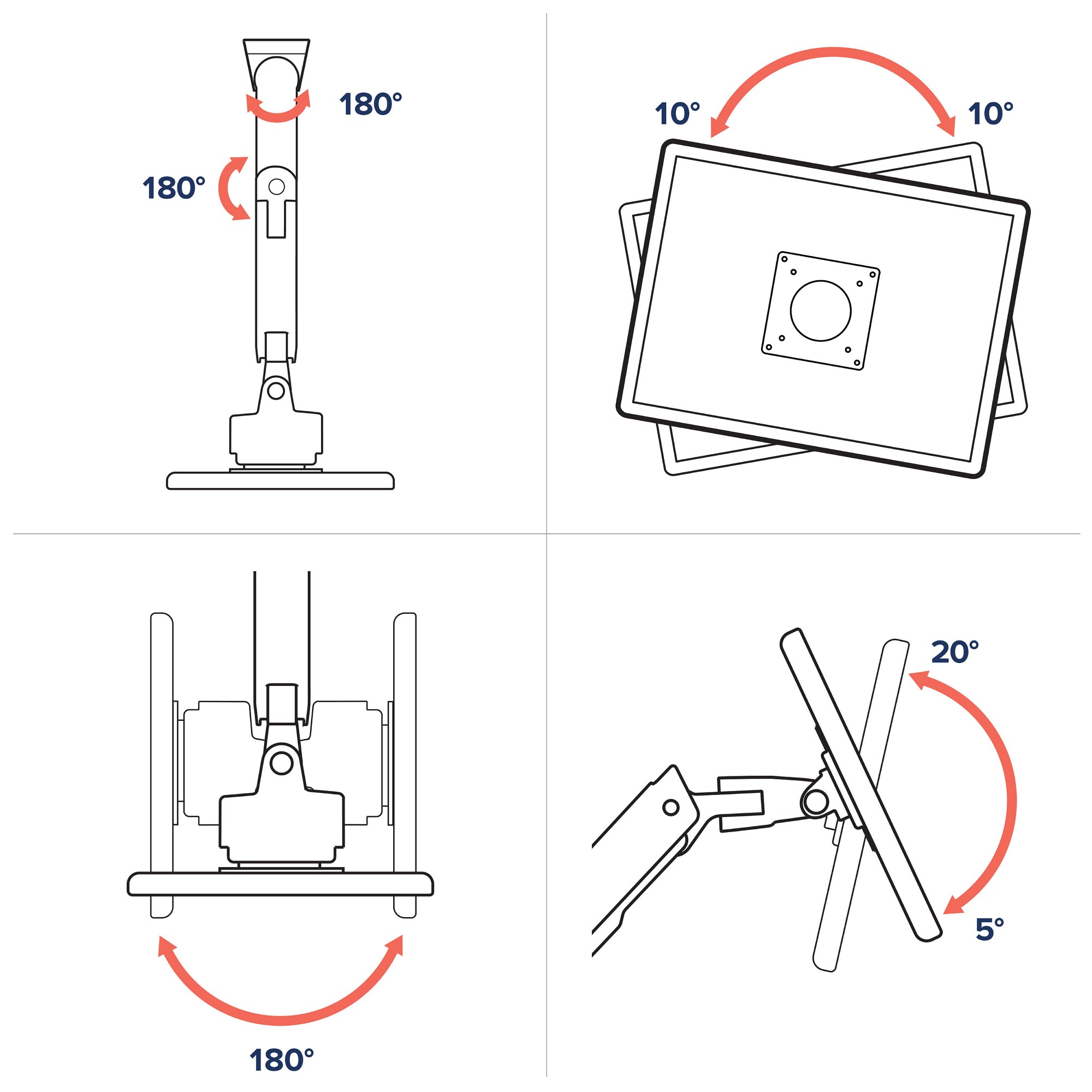

| Tilt angle range | 5 - 20° |
| Angle of rotation | 20° |
| Pan range | 0 - 180° |
| Number of arms | 1 |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Packaging data | |
| Package width | 198 mm |
| Package depth | 265 mm |
| Package height | 198 mm |
| Package weight | 8 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Clamp included | Yes |
| Manual | Yes |
| Packaging content | |
| Clamp included | Yes |
| Manual | Yes |
| VESA mount included | Yes |

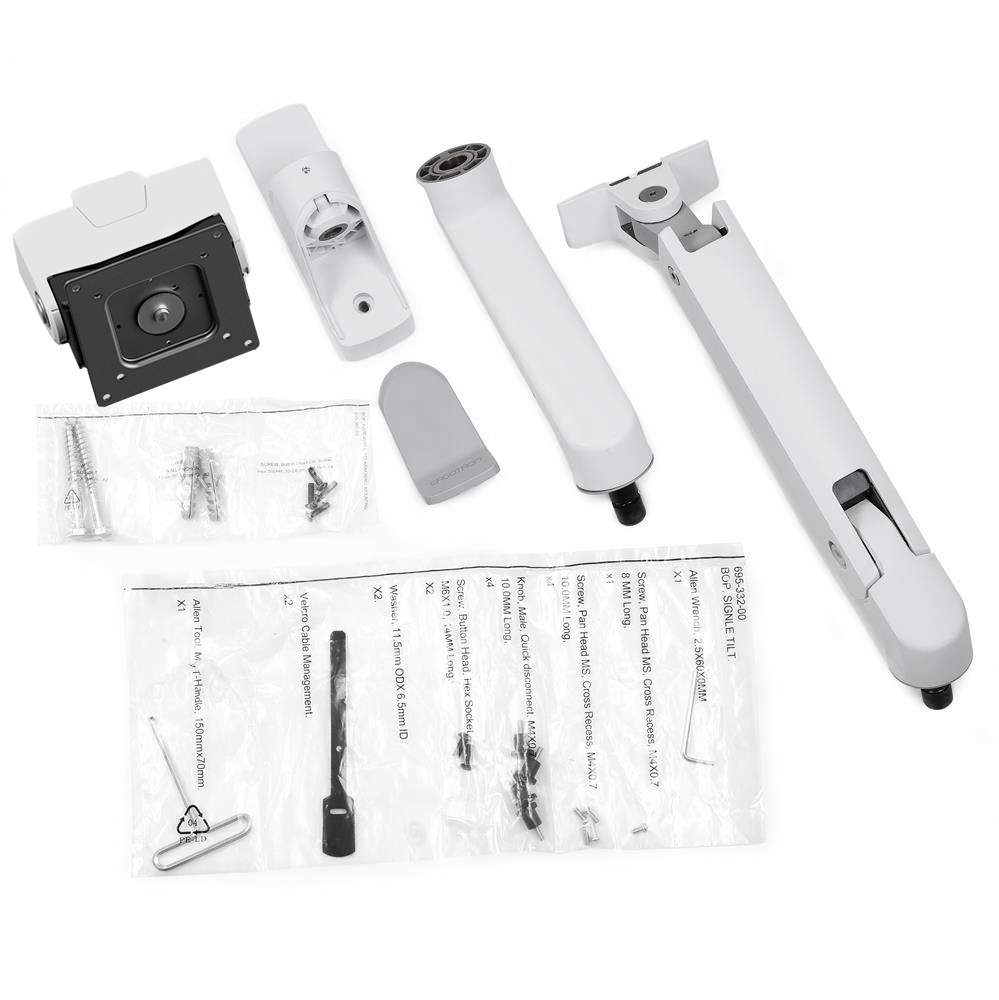

| Packaging content | HX Arm, Very Heavy-Duty Tilt Pivot, extension, wall mount attachment, mounting hardware |
| Mounting kit | Yes |
| Technical details | |
| Warranty period | 10 year(s) |
| Weight & dimensions | |
| Package width | 198 mm |
| Package depth | 265 mm |
| Package height | 198 mm |
| Package weight | 8 g |
| Package type | Box |
| Other features | |
| Warranty period | 10 year(s) |
| Mounting type | Wall |
| Mounting | Screws |
| Country of origin | China |
| Logistics data | |
| Country of origin | China |
