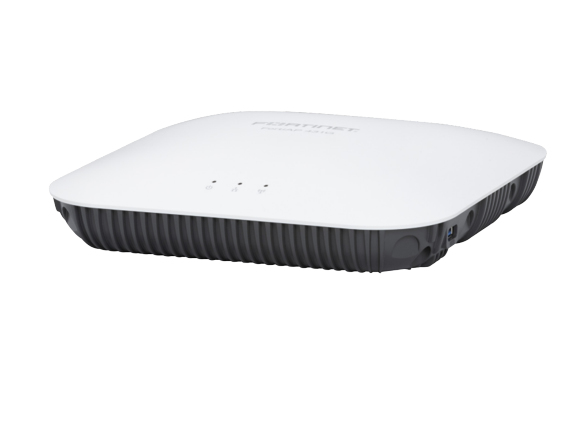

Fortinet FortiAP 431G 4804 Mbit/s White Power over Ethernet (PoE)
- Brand: FORTINET
- Category:
- SKU: FAP-431G-N
- EAN: 0195875215069
Indoor Wireless AP - Tri radio (Wi-Fi-6E IEEE 802.11ax Tri-band 2.4/5/6GHz and dual 5G operation 4+4+4 4 streams 3 radios), internal antennas, 2x 5G Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order: 802.3bt PoE injector or AC adapter SP-FAP400-PA. SP-FAP-250-PA
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Indoor Wireless AP - Tri radio (Wi-Fi-6E IEEE 802.11ax Tri-band 2.4/5/6GHz and dual 5G operation 4+4+4 4 streams 3 radios) Region Code N |
5688394 | |||
|
FORTIAP-431G |
5688394 |
Description
FortiLAN Cloud- or FortiGate-Managed Access Points
FortiAP™ access points are managed centrally by the integrated WLAN
controller of any FortiGate® security appliance or through the FortiLAN Cloud
provisioning and management portal. With the integration of the wireless
controller functionality into the market-leading FortiGate appliance, these APs
are perfect for campus and branch deployments. Fortinet’s Security Fabric
enables you to easily manage wired and wireless security from a Singlepane-of-glass management console and protects your network from the
latest security threats.
FortiAP 431G and 433G
These high performing enterprise class extended frequency band Wi-Fi 6E indoor APs provide
three radios and four spatial streams. These access points support the 6 GHz band, OFDMA,
and a 5 Gigabit Ethernet port. The APs can provide 24/7 scanning across all bands while still
providing access on both the 2.4 GHz and 5 GHz bands or 2.4 Ghz and dual 5 GHz service or
the AP can be configured to provide simultaneous access on 2.4 GHz, 5 GHz, and the 6 GHz
bands. The integrated BLE/ ZigBee radio can be used for beacons and locationing applications
FortiAP™ access points are managed centrally by the integrated WLAN
controller of any FortiGate® security appliance or through the FortiLAN Cloud
provisioning and management portal. With the integration of the wireless
controller functionality into the market-leading FortiGate appliance, these APs
are perfect for campus and branch deployments. Fortinet’s Security Fabric
enables you to easily manage wired and wireless security from a Singlepane-of-glass management console and protects your network from the
latest security threats.
FortiAP 431G and 433G
These high performing enterprise class extended frequency band Wi-Fi 6E indoor APs provide
three radios and four spatial streams. These access points support the 6 GHz band, OFDMA,
and a 5 Gigabit Ethernet port. The APs can provide 24/7 scanning across all bands while still
providing access on both the 2.4 GHz and 5 GHz bands or 2.4 Ghz and dual 5 GHz service or
the AP can be configured to provide simultaneous access on 2.4 GHz, 5 GHz, and the 6 GHz
bands. The integrated BLE/ ZigBee radio can be used for beacons and locationing applications
Specifications
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 4804 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Spread spectrum method | OFDMA |
| Frequency band | 2.400–2.4835, 5.150 - 5.850, 6.425 - 7.125 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz |
| Channel bandwidth | 40 MHz |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 4804 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Spread spectrum method | OFDMA |
| Frequency band | 2.400–2.4835, 5.150 - 5.850, 6.425 - 7.125 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz |
| Channel bandwidth | 40 MHz |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Fit AP mode features | Mesh networking |
| Maximum data transfer rate (6 GHz) | 4804 Mbit/s |
| Bluetooth Low Energy (BLE) | Yes |
| Security | |
| Security algorithms | EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2, WPA3 |
| Wireless Intrusion Detection System (WIDS) | Yes |
| Management features | |
| Local AP management | Serial port |
| Ports & interfaces | |
| RS-232 interface | Yes |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (typical) | 31.7 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| LED indicators | Yes |
| Product colour | White |
| Antenna | |
| Antenna type | Internal |
| Technical details | |
| Compliance certificates | CE |
| Certificates | |
| Compliance certificates | CE |
| Software | |
| Local AP management | Serial port |
| Weight & dimensions | |
| Width | 225 mm |
| Depth | 225 mm |
| Height | 54 mm |
| Weight | 1.4 kg |
| Package weight | 2.4 kg |
| Packaging data | |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Package weight | 2.4 kg |
| Packaging content | |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
