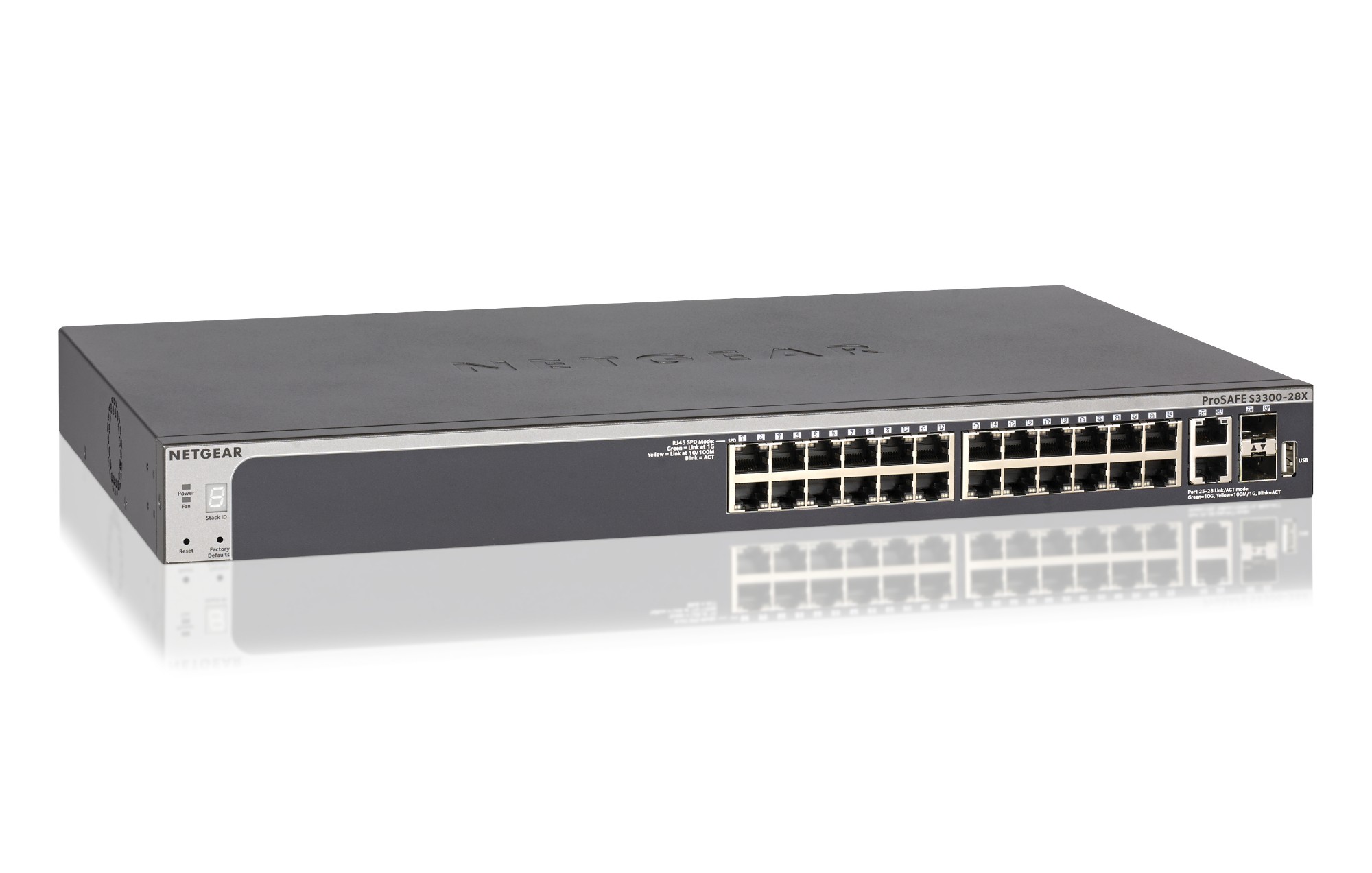

NETGEAR S3300-28X Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) 1U Black

  • Brand: NETGEAR
  • Category:
  • SKU: GS728TX-100AJS
  • EAN: 0606449102987 10606449102984
NETGEAR S3300-28X, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Trade Prices

Distributor Product SKU Stock Updated Price
NZ - Ingram Micro

PROSAFE 24-PORT GIGABIT STCK 4X10G PRT

 2826769 Register free see stock

Description

NETGEAR S3300-28X. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Multicast supportYes
Switch layerL2/L3/L4
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Network
IGMP snoopingYes
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplexYes
Number of VLANs256
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportYes
Auto-negotiationYes
Virtual LAN featuresTagged VLAN, Protocol-based VLAN
Virtual LAN features
Number of VLANs256
VLAN supportYes
Virtual LAN featuresTagged VLAN, Protocol-based VLAN
Data transmission
Number of VLANs256
Jumbo frames9216
MAC address table16000 entries
Switching capacity128 Gbit/s
Latency (10 Gbps)4.197 µs
Number of static routes32
Jumbo frames supportYes
Packet buffer memory2 MB
Static routeYes
Packet forwardingYes
Performance
StackableYes
Packet buffer memory2 MB
Auto-negotiationYes
Noise level40 dB
Internal memory512 MB
Flash memory128 MB
Mean time between failures (MTBF)278599 h
Ports & interfaces
SFP+ module slots quantity2
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
Security
BPDU filtering/protectionYes
AuthenticationPort-based authentication
IGMP snoopingYes
Access Control List (ACL)Yes
BPDU tunnelingYes
DHCP featuresDHCP server, DHCP relay, DHCP client
Multicast features
Multicast supportYes
Protocols
Management protocolsSNMPv1/v2c/v3
Routing protocolsIP
Design
Rack mountingYes
StackableYes
Product colourBlack
Form factor1U
Housing materialMetal
CertificationVCCI Class A
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)28.18 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)0 - 90%
Heat dissipation96.15 BTU/h
Weight & dimensions
Width440 mm
Depth257 mm
Height43 mm
Weight3.14 kg
Packaging data
Rack mount kitYes
Resource CDYes
User guideYes
Cables includedAC
Packaging content
Rack mount kitYes
Resource CDYes
User guideYes
Cables includedAC
