NETGEAR WAC505 1167 Mbit/s White Power over Ethernet (PoE)

NETGEAR WAC505 1167 Mbit/s White Power over Ethernet (PoE)

Insight Managed Smart Cloud Wireless Access Points Data Sheet

Trade Prices

Distributor Product SKU Stock Updated Price
NZ - Ingram Micro

AC WiFi Business Access Point w. Insight

3741036 Register free see stock

Description

Wireless network discovery, setup, monitoring and management can now be done in the palm of your hand – anytime, anywhere, with NETGEAR Insight app.
Reliable wireless connectivity for employees and customers is a requirement for any business today. All devices are now connected, all users are mobile and “WiFi everywhere” is commonplace. Business owners are often too busy to handle this and need WiFi that just works!

NETGEAR introduces the new IT revolution for small businesses with “One-touch connectivity” with Insight management app. Experience easy set-up, remote management and full control of your wireless network. With 20 years of experience in small & medium business networking, NETGEAR is now delivering wireless connectivity that “just works” at your fingertips.

NETGEAR Insight enables multi-device configuration of your NETGEAR Insight Managed wireless access points, either locally or remotely. It provides network management, monitoring and service deployment across multiple remote and local sites for the easiest and most user-friendly wireless networking experience. Anywhere management also includes Insight Managed switches and Business-Class ReadyNAS on top of Insight Managed Wireless Access points, enabling whole network visibility and management. Insight app also allows you discover select wired and wireless devices from your local or remote network.

Business Features for higher speed, greater coverage and higher density WiFi
- Business class WiFi with superior Wave 2 802.11ac performance and range
- 2x2 with 2 streams of data for aggregate throughput of up to 1.2Gbps (300 Mbps at 2.4GHz and 867 Mbps at 5GHz)
- Multi-User Multiple In Multiple Out (MU-MIMO) avoids congestion and ensures performance in high client density deployments like public WiFi hotspots
- One Ethernet port, with Power-overEthernet (PoE) for ease of deployment (PoE switch & AC/DC power adapter are sold separately)
- One-touch network visibility. Anywhere. - Smart Cloud remote app management for unrivaled mobile management experience of your wireless network
- App managed, through NETGEAR Insight app for one-touch installation and management of all your WAC505 and WAC510 Access Points, no additional hardware needed
- Market leading 5-year warranty with 24x7 chat support for peace of mind

Specifications

Performance
2.4 GHzYes
5 GHzYes
Auto MDI/MDI-XYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Auto Wireless Distribution System (WDS)Yes
Maximum data transfer rate1167 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
VLAN supportYes
Networking standardsIEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Features
2.4 GHzYes
5 GHzYes
Auto MDI/MDI-XYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Maximum data transfer rate1167 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
VLAN supportYes
Networking standardsIEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Security
Auto Wireless Distribution System (WDS)Yes
Security algorithms802.1x RADIUS, EAP, EAP-TLS, PEAP, TTLS, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) featuresSSID broadcast on/off
Ports & interfaces

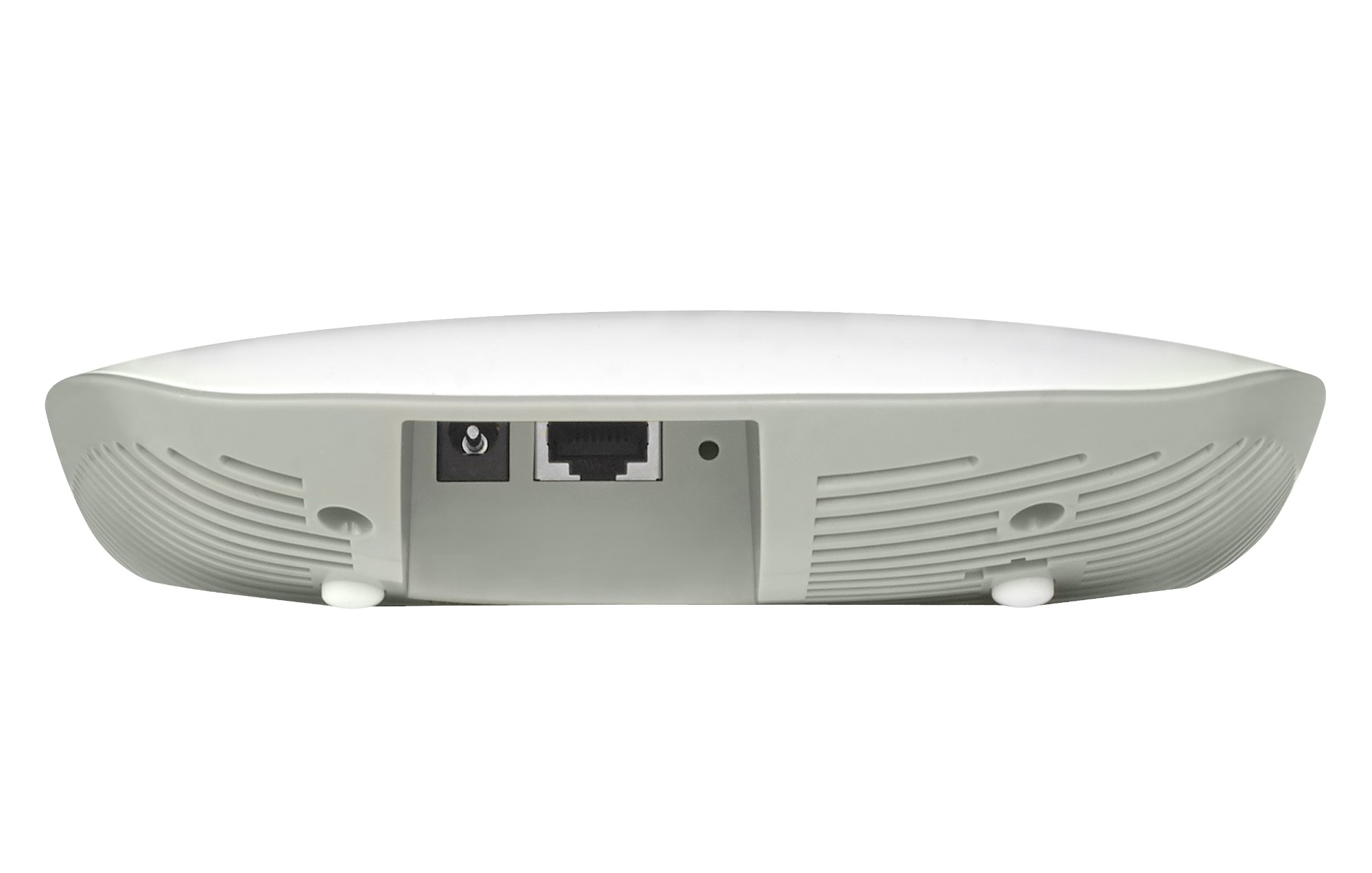

Ethernet LAN (RJ-45) ports1
DC-in jackYes
Power
Output voltage12 V
Output current2.5 A
Power over Ethernet (PoE)Yes
Design
PlacementCeiling, Wall
InternalNo
LED indicatorsYes
Product colourWhite
Antenna
Antenna typeInternal
Antenna gain level (max)4 dBi
Weight & dimensions
Width175 mm
Depth165 mm
Height35 mm
Weight256 g
