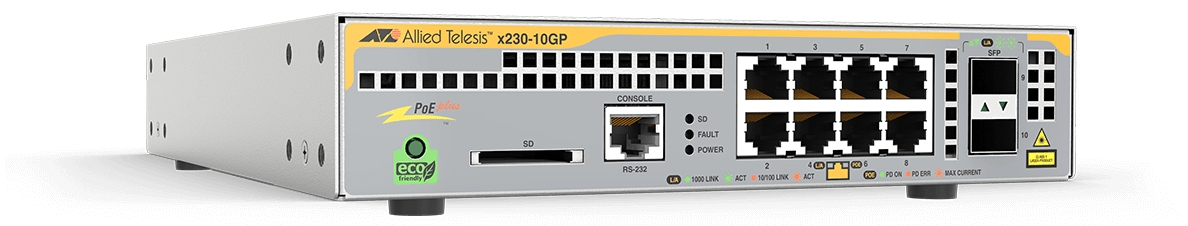

Allied Telesis x230-10GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
- Brand: ALLIED TELESIS
- Category:
- SKU: AT-X230-10GP-40
- EAN: 0767035202013
Compact PoE+ Gigabit Edge switch with 8 x 10/100/1000T PoE+ ports and 2 x 100/1000X SFP ports
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
L2+ switch with 8 x 10/100/1000T PoE ports and 2 x 100/1000X SFP ports, AU Power Cord |
ADX23010P | |||
|
L2+ switch with 8 x 10/100/1000T PoE ports and 2 x 100/1000X SFP ports AU Power Cord |
AT-x230-10GP-40 | |||
|
AT-x230-10GP-40 L2+ switch with 8 x 10/100/1000T PoE ports- 2 x 100/1000X SFP ports |
394686 | |||
|
8PORT POE L2+ SWITCH 2XSFP 1YR NCP |
5885146 | |||
|
X230-10GP-40 L2+ GIGA SWITCH, 8X 10/100/1000-T POE+, 2X SFP PORTS, 1 X FIXED PSU, AU POWER CORD |
AT-X230-10GP-40 |
Description
Gigabit Managed Edge Switches
Maximum network performance for even the most demanding applications, the x230 family offers an impressive set of features in a compact design, ready for flexible deployment.
Maximum network performance for even the most demanding applications, the x230 family offers an impressive set of features in a compact design, ready for flexible deployment.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Number of VLANs | 2048 |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | |
| Number of VLANs | 2048 |
| VLAN support | Yes |
| Data transmission | |
| Number of VLANs | 2048 |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Latency (1 Gbps) | 3.4 µs |
| Packet buffer memory | 1.5 MB |
| Forwarding rate | 14.9 Mpps |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Noise level | 41 dB |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| LED indicators | Yes |
| Certification | RoHS, UL, cUL, UL-EU |
| Power | |
| Power supply included | Yes |
| AC input voltage | 90 - 260 V |
| AC input frequency | 45/63 Hz |
| Power consumption (typical) | 24 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 124 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 126 BTU/h |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 275 mm |
| Height | 42.5 mm |
| Weight | 2.1 kg |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 3.45 kg |
