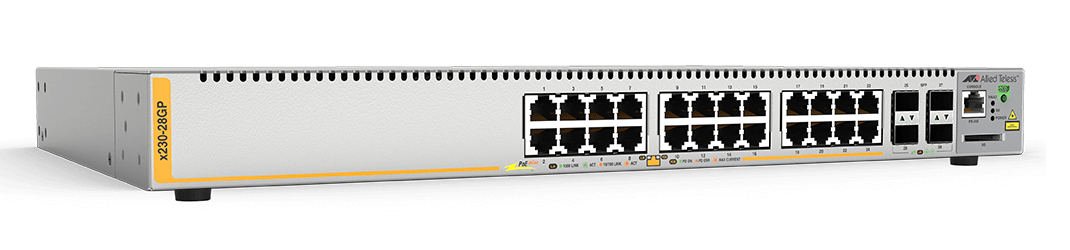

Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
- Brand: ALLIED TELESIS
- Category:
- SKU: AT-x230-28GP-40
- EAN: 0767035204055 0767035204086
Basic L3 Enterprise PoE+ Gigabit Edge switch with 24 x 10/100/1000T PoE+ ports and 4 x 100/1000X SFP ports
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
| AT-x230-28GP-40 | 24 Port Gigabit L2+ PoE Switch with 4 x SFP Ports |
AT-X230-28GP-40 | |||
|
L2+ switch with 24 x 10/100/1000T PoE ports and 4 x 100/1000X SFP ports, AU Power Cord |
ADX23028P | |||
|
L2+ switch with 24 x 10/100/1000T PoE ports and 4 x 100/1000X SFP ports AU Power Cord |
AT-x230-28GP-40 | |||
|
AT-x230-28GP-40 L2+ switch with 24 x 10/100/1000T PoE ports and 4 x 100/1000X SFP ports |
394722 | |||
|
24X 10/100/1000T POE PORTS 4X SFP PORTS |
5872063 | |||
|
X230-28GP-40 L2+ GIGA SWITCH, 24X 10/100/1000-T POE+, 4X SFP PORTS, 1 X FIXED PSU, AU POWER CORD |
AT-X230-28GP-40 |
Description
Gigabit Managed Edge Switches
Maximum network performance for even the most demanding applications, the x230 family offers an impressive set of features in a compact design, ready for flexible deployment.
Maximum network performance for even the most demanding applications, the x230 family offers an impressive set of features in a compact design, ready for flexible deployment.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Compatible memory cards | SD, SDHC |
| Network | |
| IGMP snooping | Yes |
| Active link detection | Yes |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Number of VLANs | 2048 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Private VLAN, Stacked VLAN, Tagged VLAN |
| Virtual LAN features | |
| Number of VLANs | 2048 |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Stacked VLAN, Tagged VLAN |
| Data transmission | |
| Multicast MAC address table | 512 entries |
| Number of VLANs | 2048 |
| Jumbo frames | 10000 |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Latency (1 Gbps) | 4.3 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
| Static route | Yes |
| Forwarding rate | 41.7 Mpps |
| Performance | |
| Stackable | Yes |
| Packet buffer memory | 1.5 MB |
| Noise level | 34 dB |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, AES, MD5, PEAP, SHA-1, SHA-2, SNMPv3, SSH, SSL/TLS, TTLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Authentication type | AAA, IEEE 802.1x |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client |
| Multicast features | |
| Multicast MAC address table | 512 entries |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1, v2c, v3 |
| Routing protocols | RIP, RIP-2 |
| Design | |
| Country of origin | China |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| LED indicators | Yes |
| Electromagnetic compatibility | EN55022 class A, FCC class A, VCCI class A |
| Certification | UL, cUL, UL-EU, RoHS |
| Power | |
| Power consumption (max) | 520 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.4 A |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 303 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 290 mm |
| Height | 44 mm |
| Weight | 4.7 kg |
| Packaging data | |
| Package width | 530 mm |
| Package depth | 430 mm |
| Package height | 150 mm |
| Package weight | 6.35 kg |
| Other features | |
| Country of origin | China |
