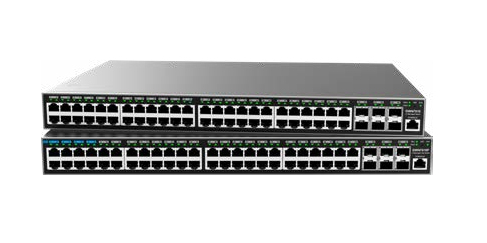

Grandstream Networks GWN7816P network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
- Brand: Grandstream Networks
- Category:
- SKU: GWN7816P
- EAN: 6947273704867
Grandstream Networks GWN7816P, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
48 PORT POE LAYER 3 MANAGED SWITCH |
GR-GWN7816P | |||
|
GWN7816P Enterprise Layer 3 Managed PoE Network Switch, 48 x GigE (40 x PoE+, 8 x PoE++), 6 x SFP+ |
IPG-GWN7816P | |||
|
GWN7816P Layer 3 PoE Netwk Switch 48xGigE 6xSFP+ |
GR-GWN7816P | |||
|
GWN7816P Layer 3 Managed Network Switch 48-port PoE |
485471 | |||
|
Grandstream GWN7816P Enterprise Layer 3 Managed PoE++ 802.3bt Network Switch with 48 x GigE and 6 x SFP+ |
GWN7816P |
Description
Grandstream Networks GWN7816P. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP+ modules quantity: 6. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 6 |
| Network | |
| Networking standards | IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Policy-based routing | Yes |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Access Control List (ACL) IPv6 entries | 4000 |
| Access Control List (ACL) IPv4 entries | 4000 |
| Data transmission | |
| MAC address table | 32000 entries |
| Switching capacity | 216 Gbit/s |
| Latency (10-100 Mbps) | 4 µs |
| Packet buffer memory | 16 MB |
| Static route | Yes |
| Number of VLANs | 4000 |
| Multicast Listener Discovery (MLD) snooping | MLD Snooping with MLDv1 and MLDv2 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| Queue scheduling algorithms | SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Access Control List (ACL) IPv6 entries | 4000 |
| Access Control List (ACL) IPv4 entries | 4000 |
| DHCP features | DHCP Option 82, DHCP Option 60, DHCP Option 160, DHCP Option 43 |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD Snooping with MLDv1 and MLDv2 |
| Protocols | |
| Supported network protocols | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d , IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv3, RIP, RIPng |
| Design | |
| Rack mounting | Yes |
| LED indicators | Data, PoE, Power |
| Power | |
| Power consumption (max) | 60 W |
| Power protection features | Surge protection |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 740 W |
| Power protection features | Surge protection |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 6 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| IPv4 & IPv6 features | |
| Access Control List (ACL) IPv6 entries | 4000 |
| Access Control List (ACL) IPv4 entries | 4000 |
| Performance | |
| Packet buffer memory | 16 MB |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, UKCA |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, UKCA |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
